Installation Guidance System
Zero Guide Navi (GNSS･2D)
KKK-120001-VE

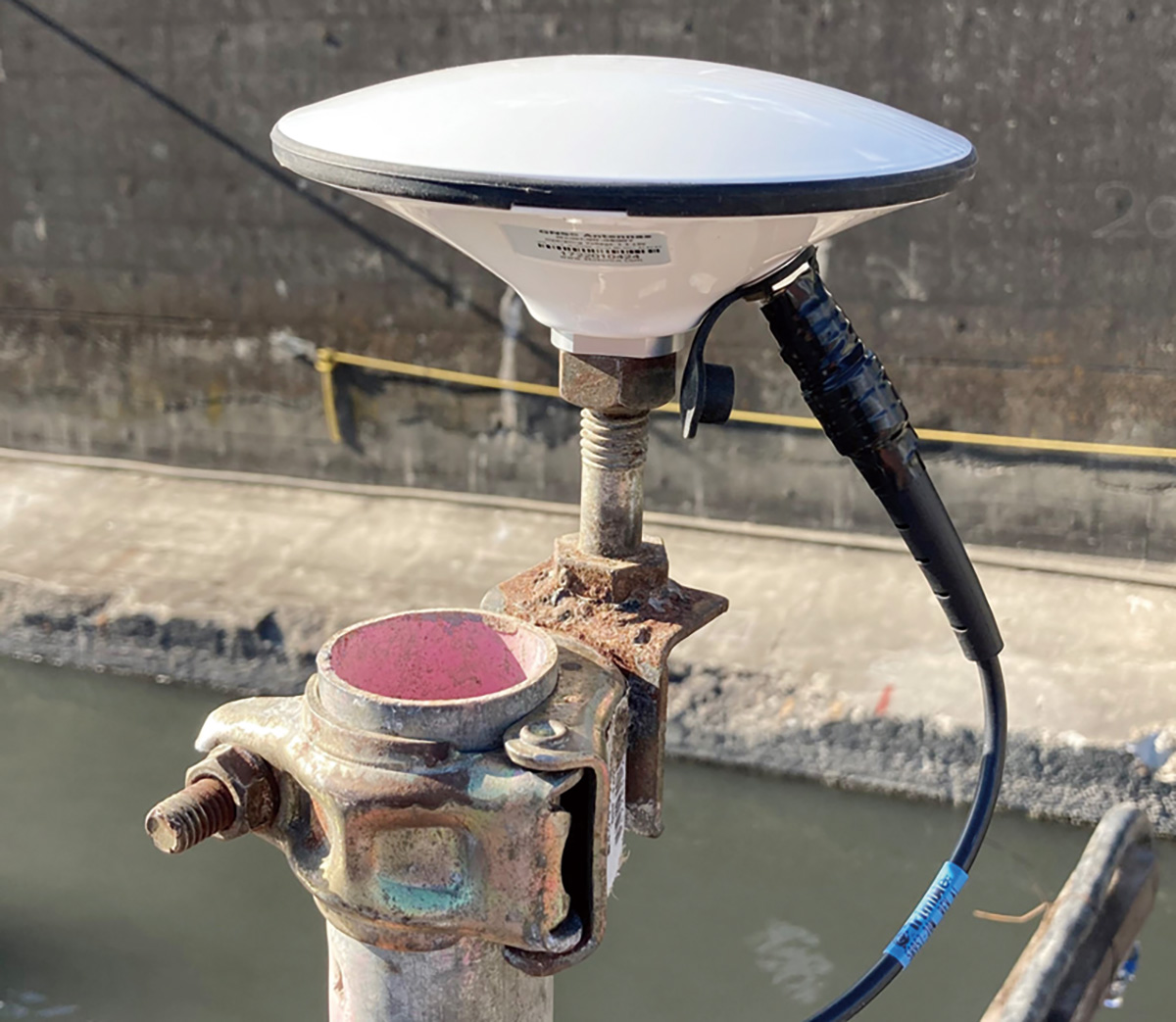

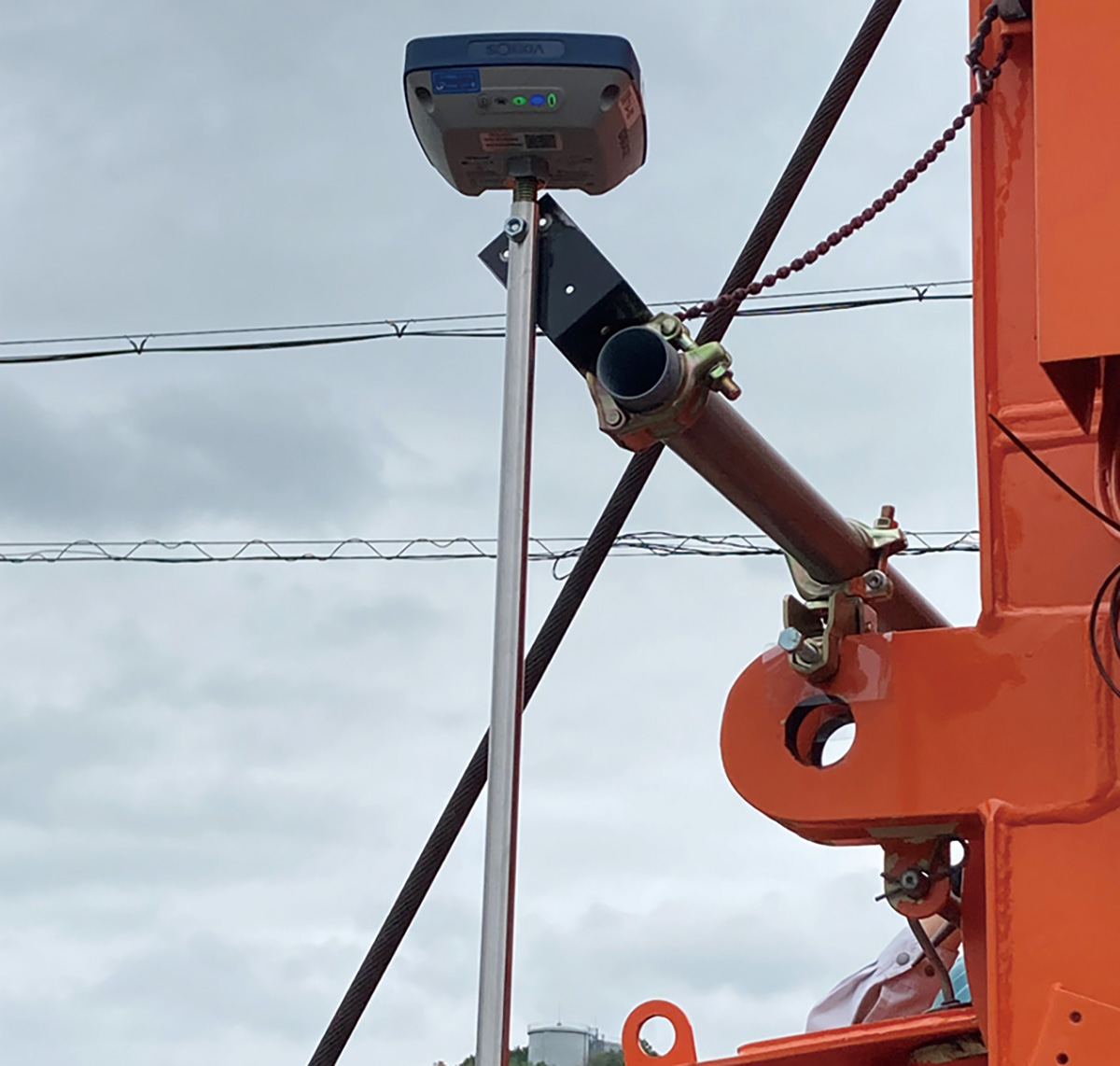

This system provides 2D guidance management using GNSS for operations such as grab dredging and wave-dissipating block installation. By installing GNSS units on the boom tip and machinery, it displays the current position, swing angle, and distance to the installation point in real time.

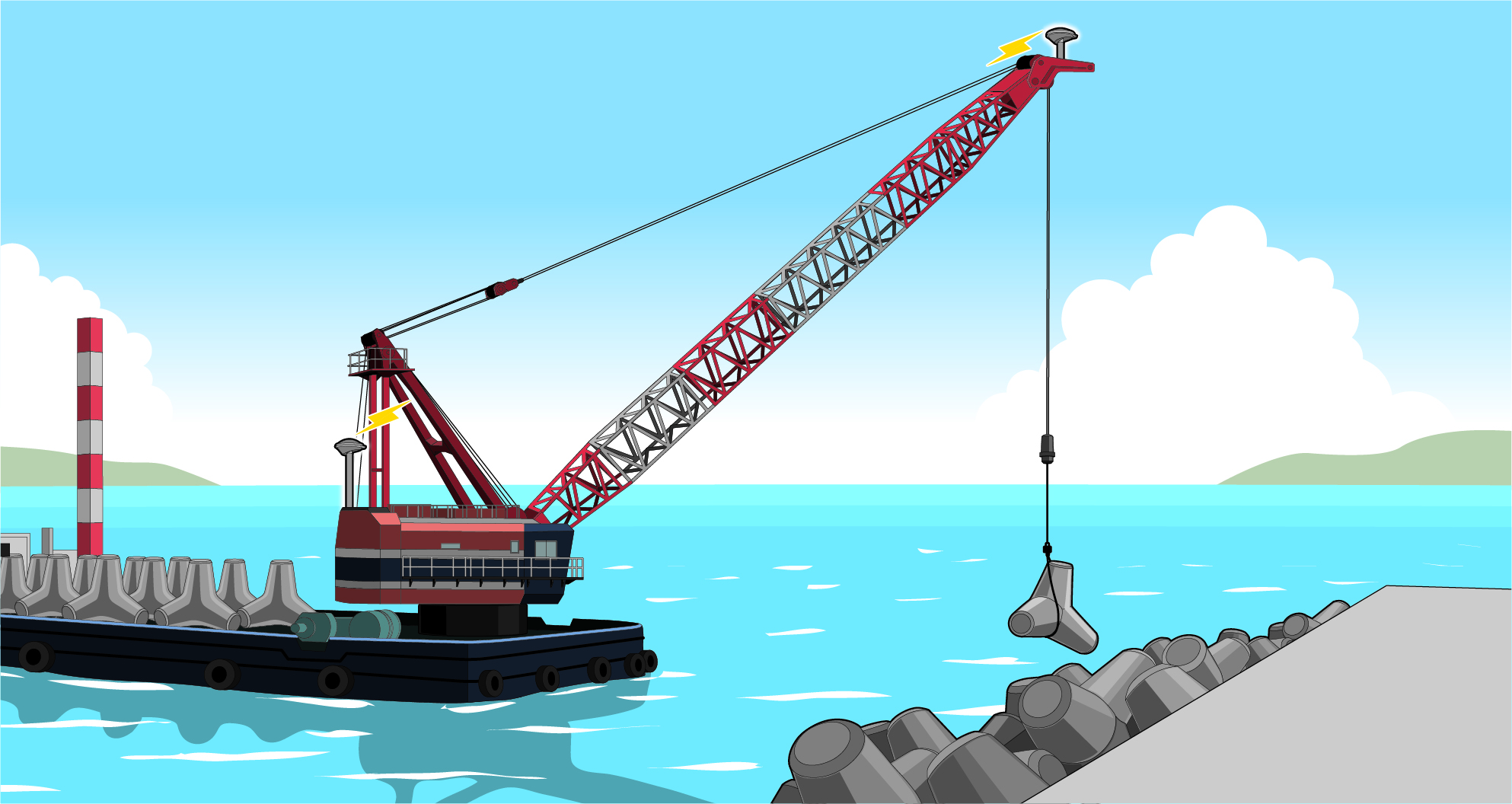

Overview Diagram
Management Software
Specifications
| Adjustment | Horizontal Accuracy | Vertical Accuracy |
|---|---|---|
| VRS | ± 3 cm | ± 5 cm |
| RTK | ± 3 cm | ± 3 cm |
| D-GNSS | ± 50 cm | - |
