Structural Guidance & As-Built Management System

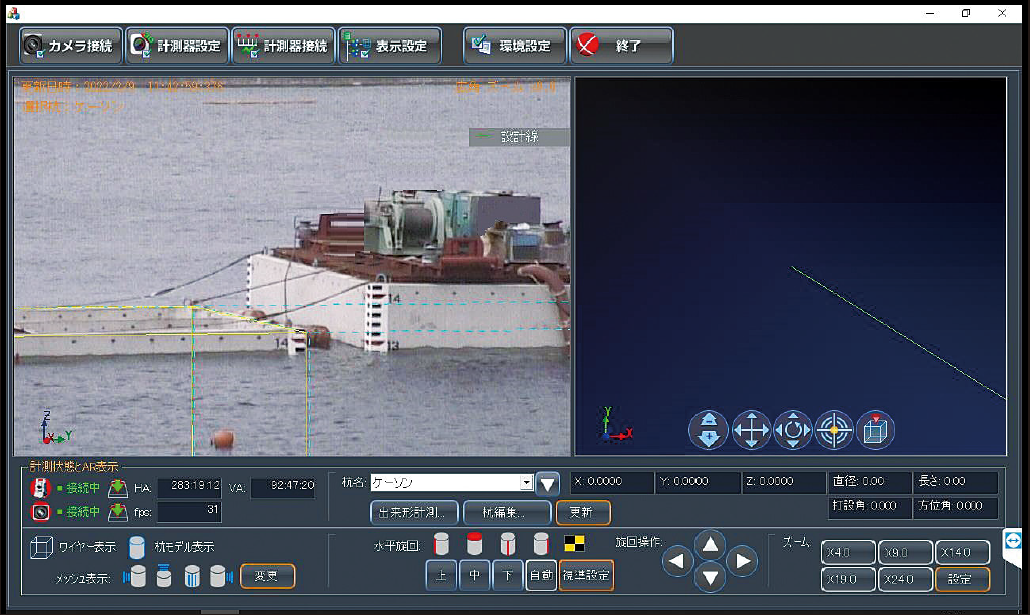

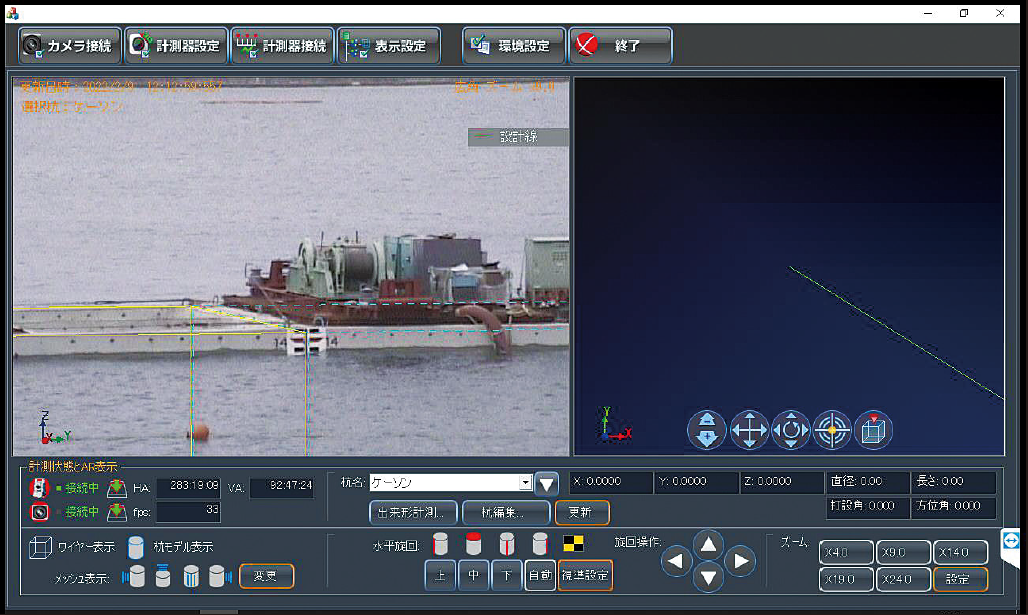

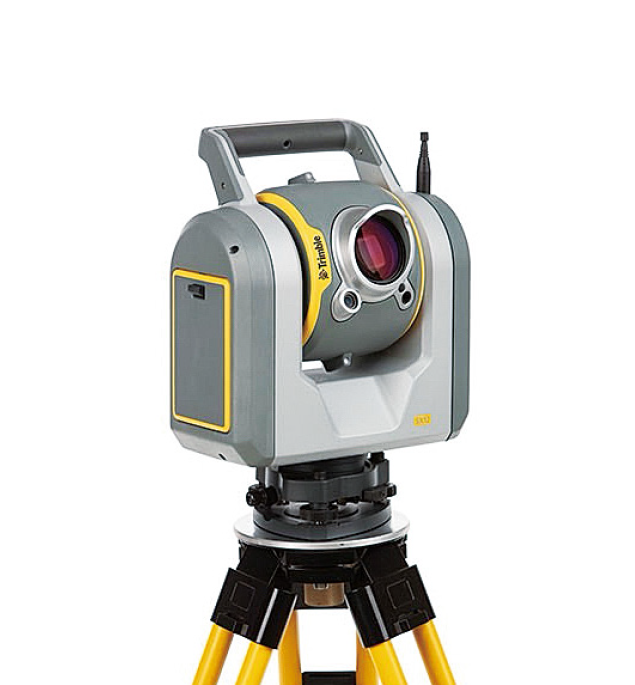

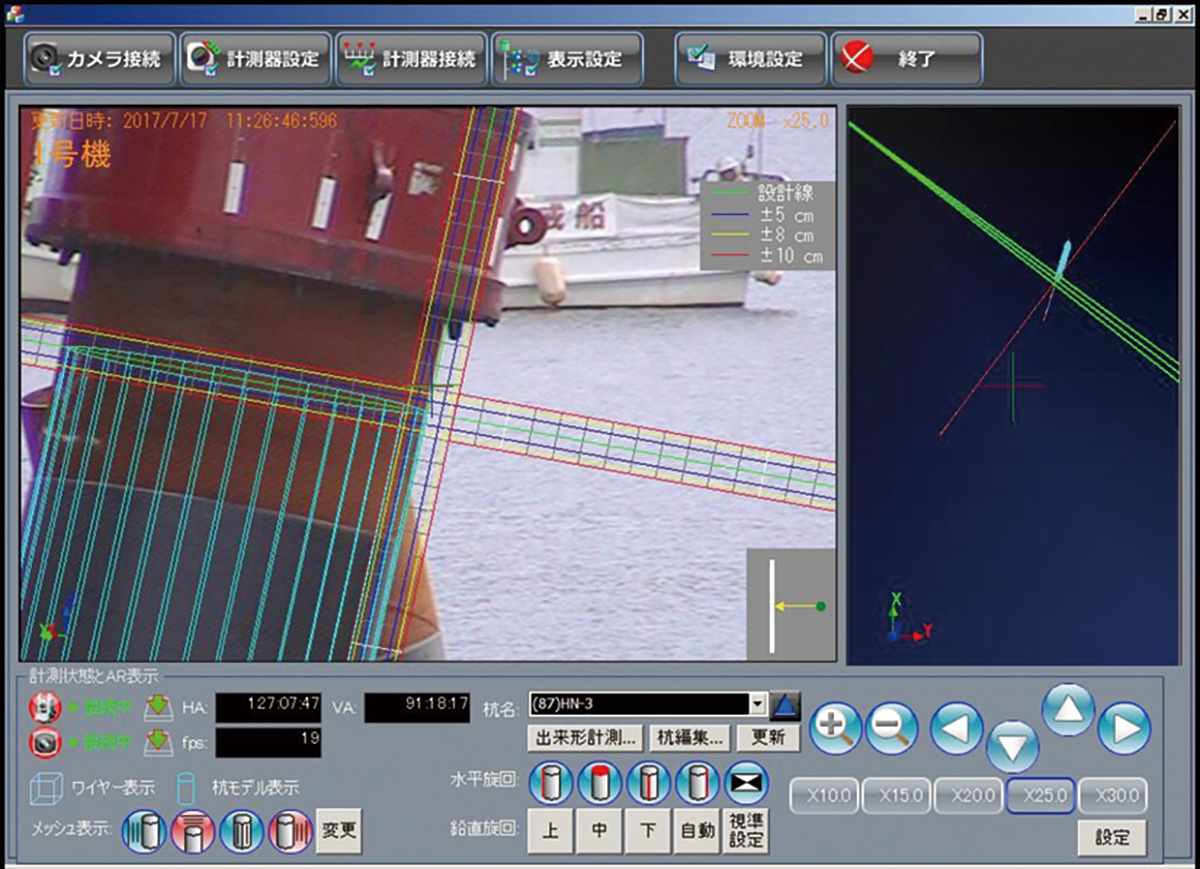

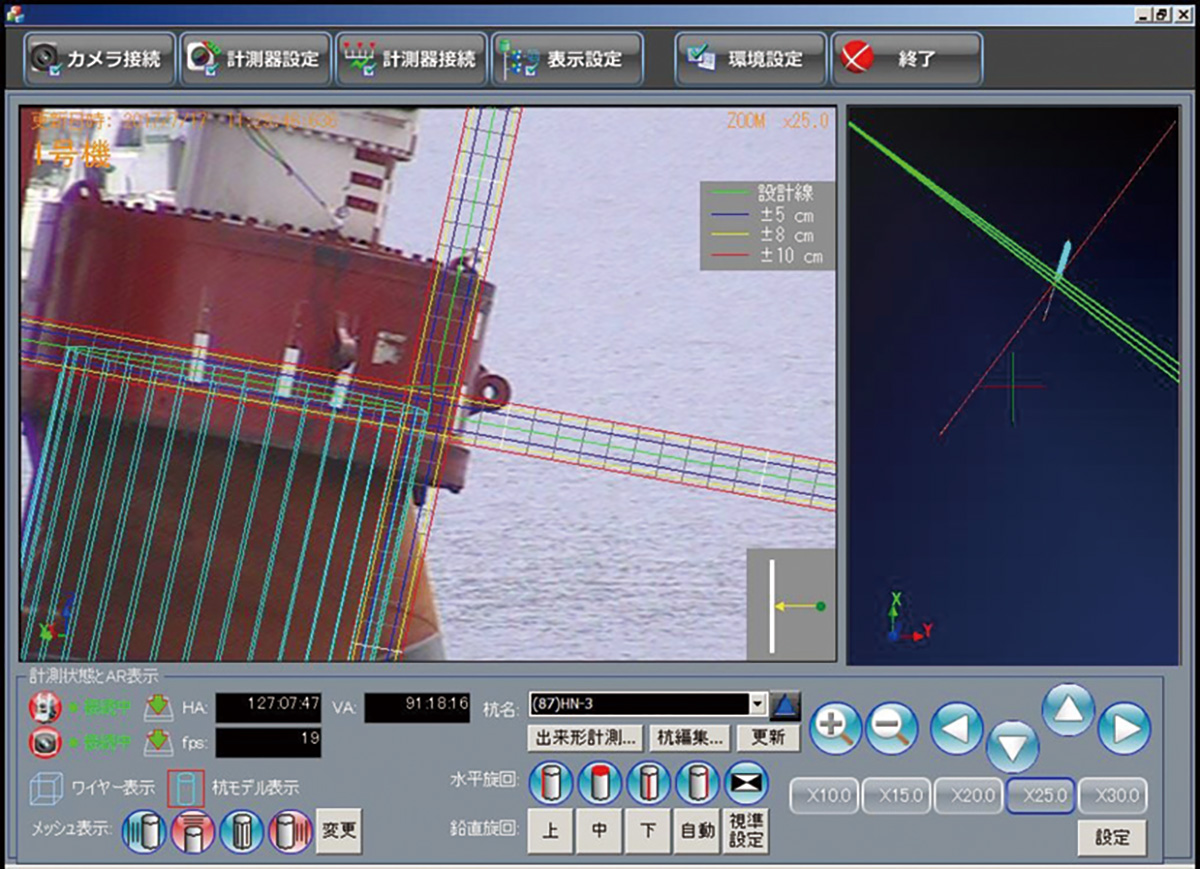

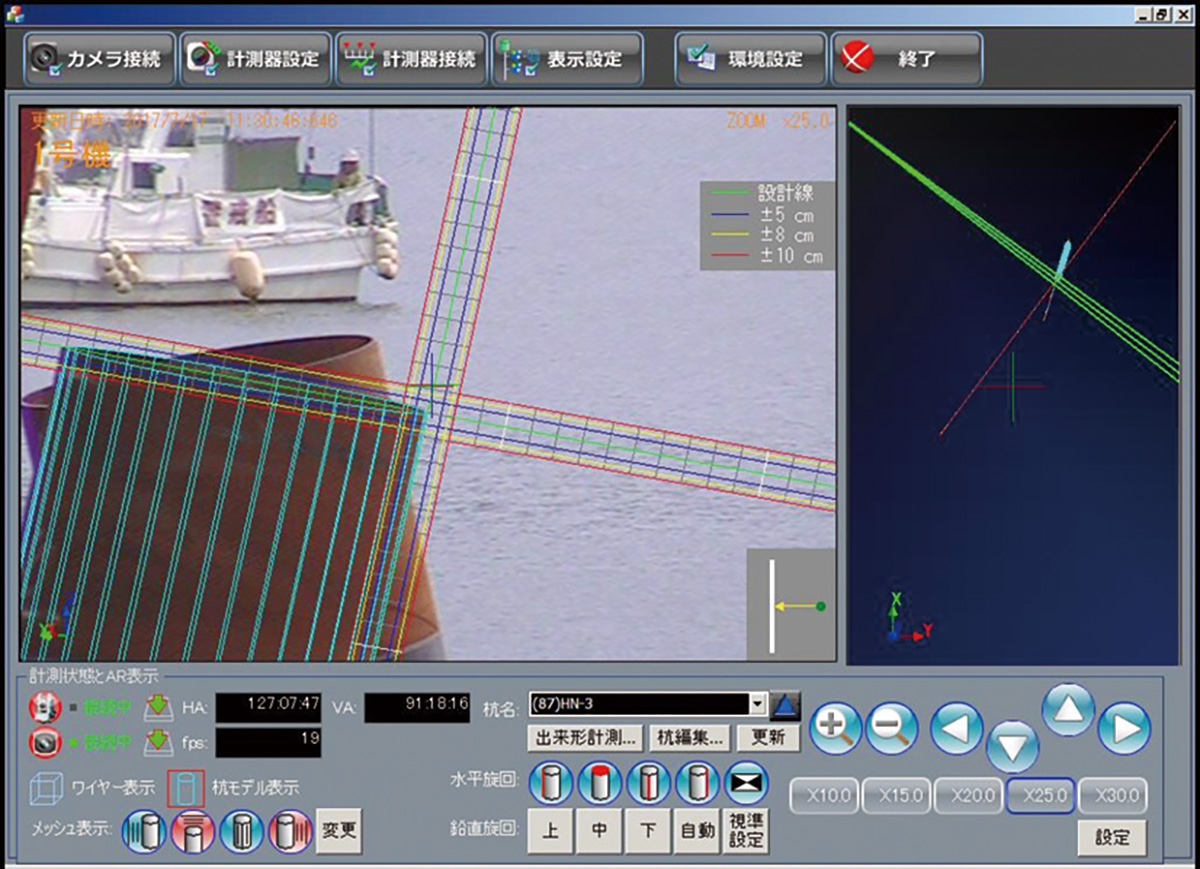

This system is a construction management support system that captures images using a camera-equipped total station and overlays 3D design drawings on those images using AR (augmented reality). Workers and operators can share the current positions of piles and structures, as well as the 3D design locations (for driving or installation), on a monitor and guide each other in real time. By importing CAD data, it is possible to display not only piles but also jackets, caissons, and bridge deck slabs in bridge construction.
