Automatic Displacement Measurement System
Loop Man
QSK-130006-VE
This system is a three-dimensional (3D) automatic displacement measurement system utilizing an automatic sighting total station. During close-proximity construction or chemical grouting, sudden deformation may occur to surrounding structures, necessitating high-frequency and high-precision measurement management. By performing automatic observations, it enables real-time alerts.
Overview Diagram
-
![Quay]()

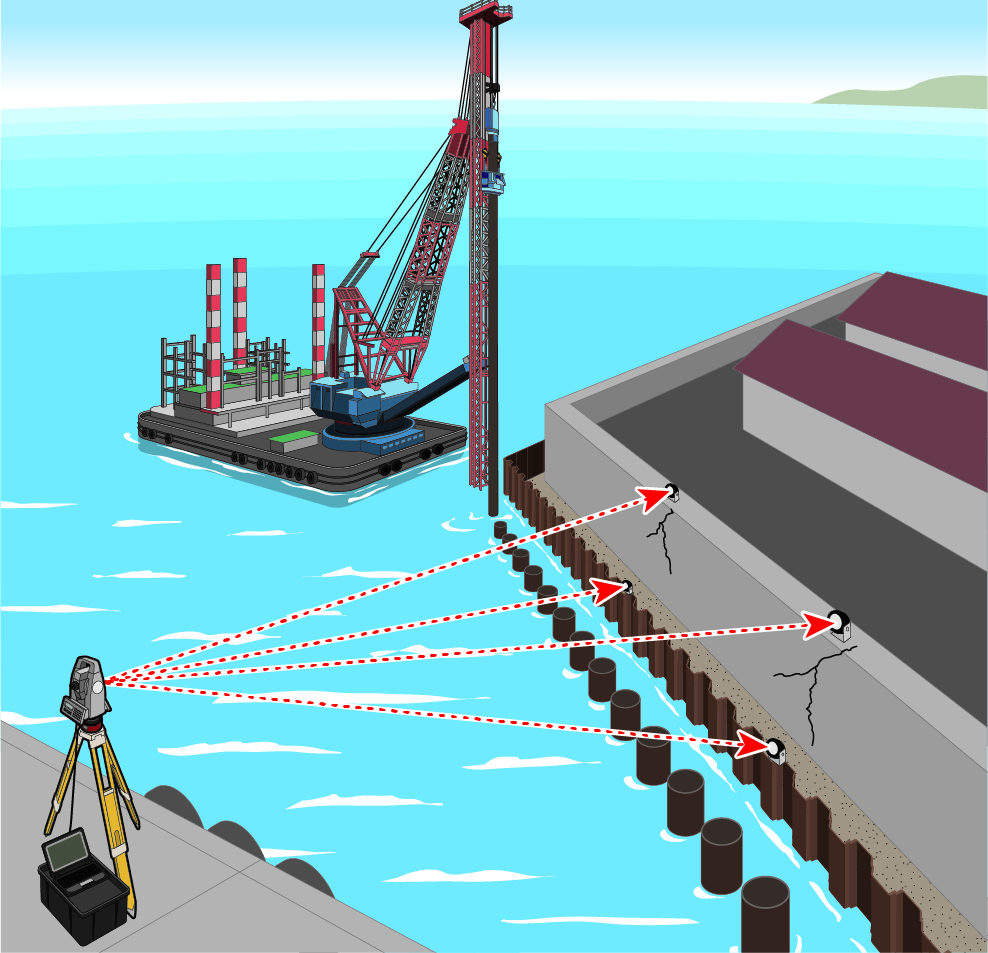

Quay
-
![Railway]()

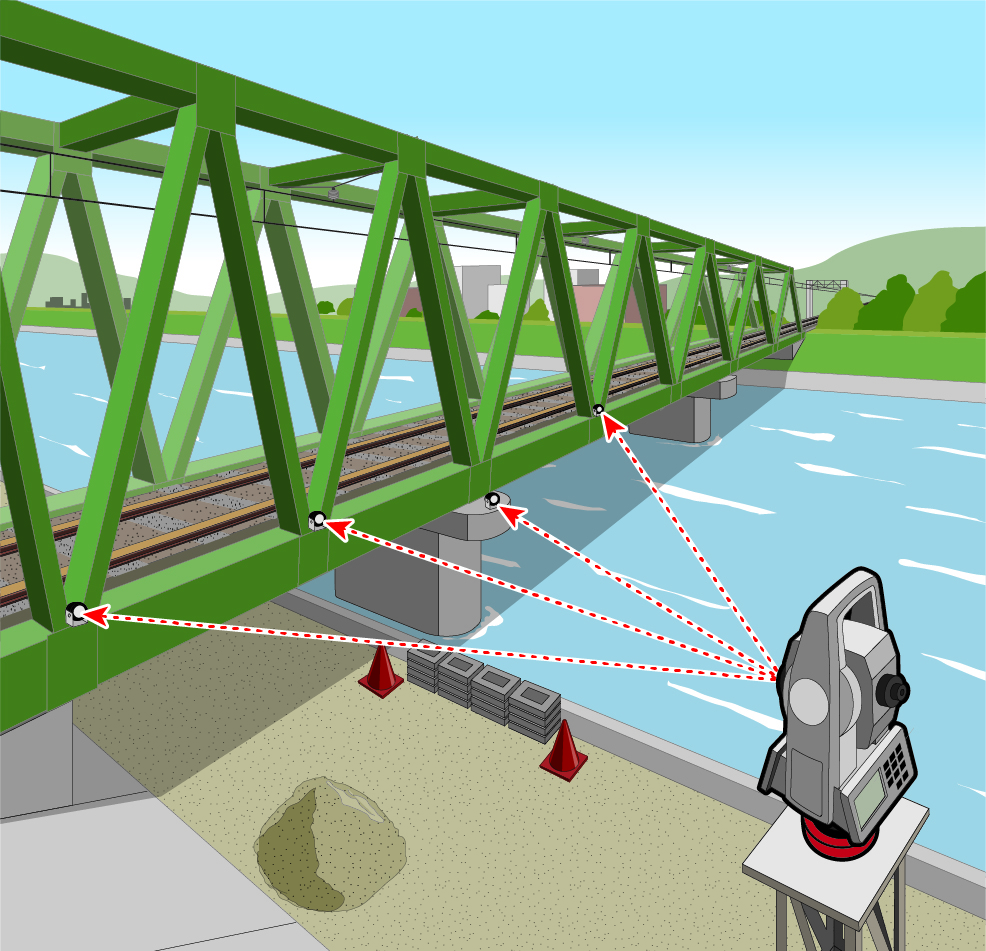

Railway
-

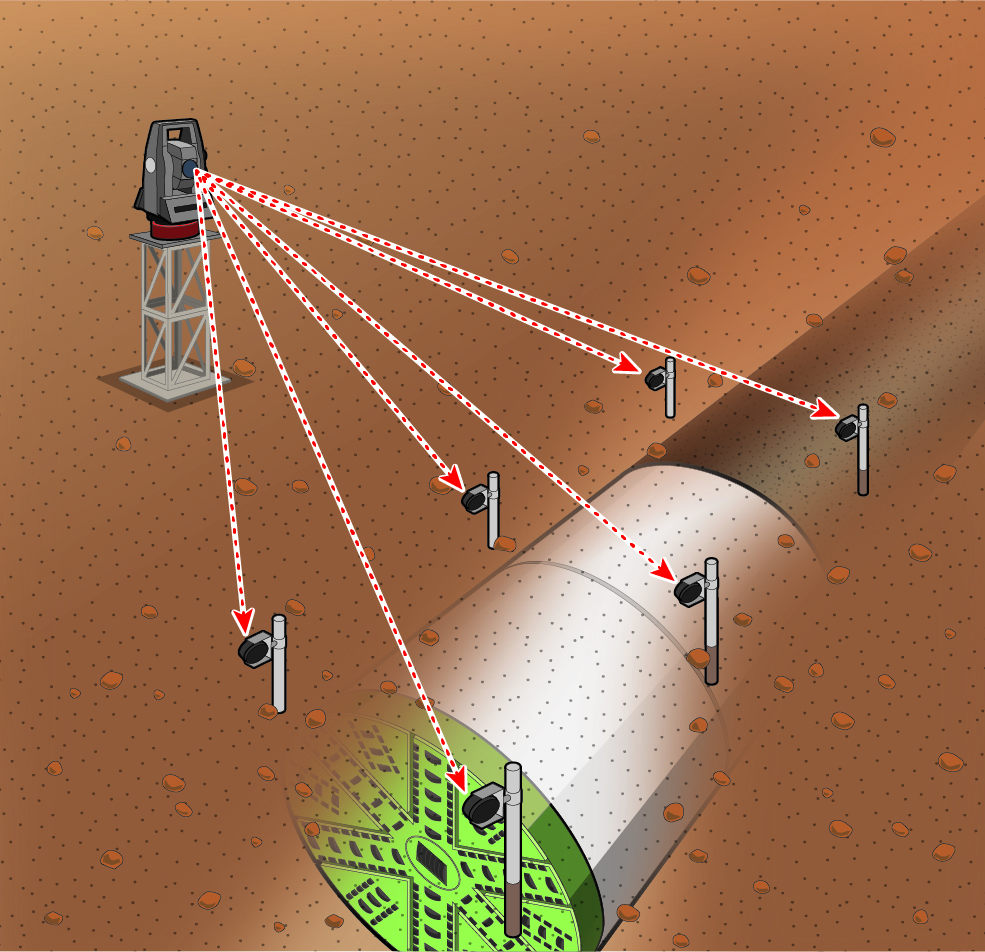

![Ground Surface]()
Ground Surface
-
![Earth Retaining Structure]()

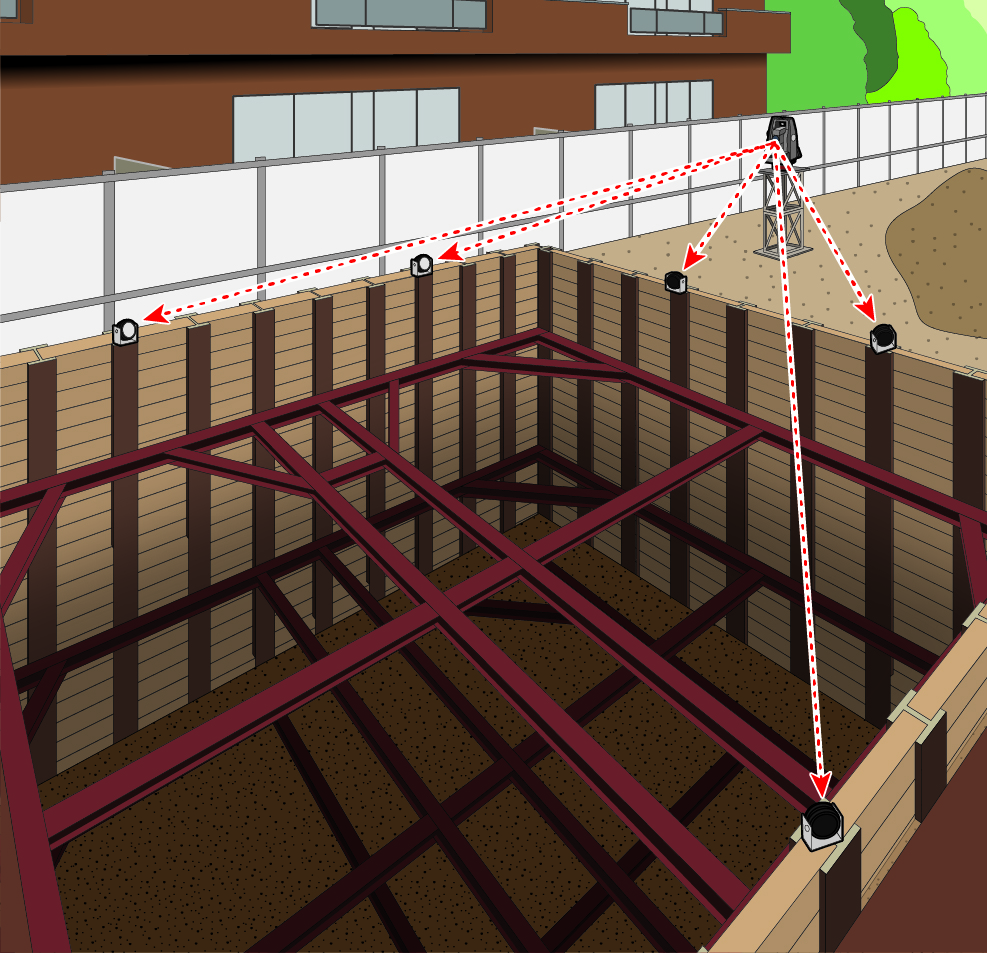

Earth Retaining Structure

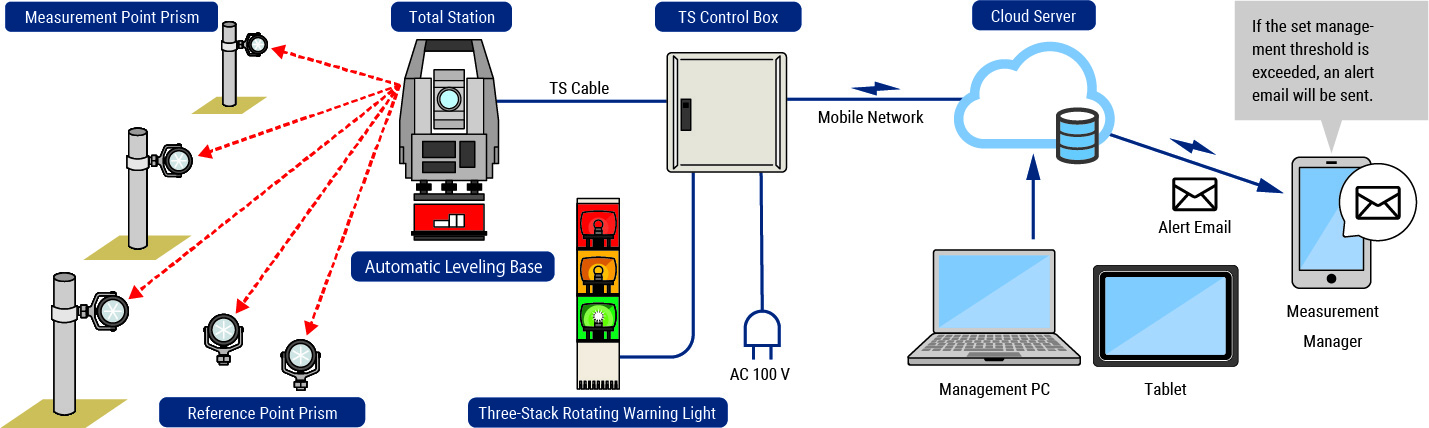

System Configuration

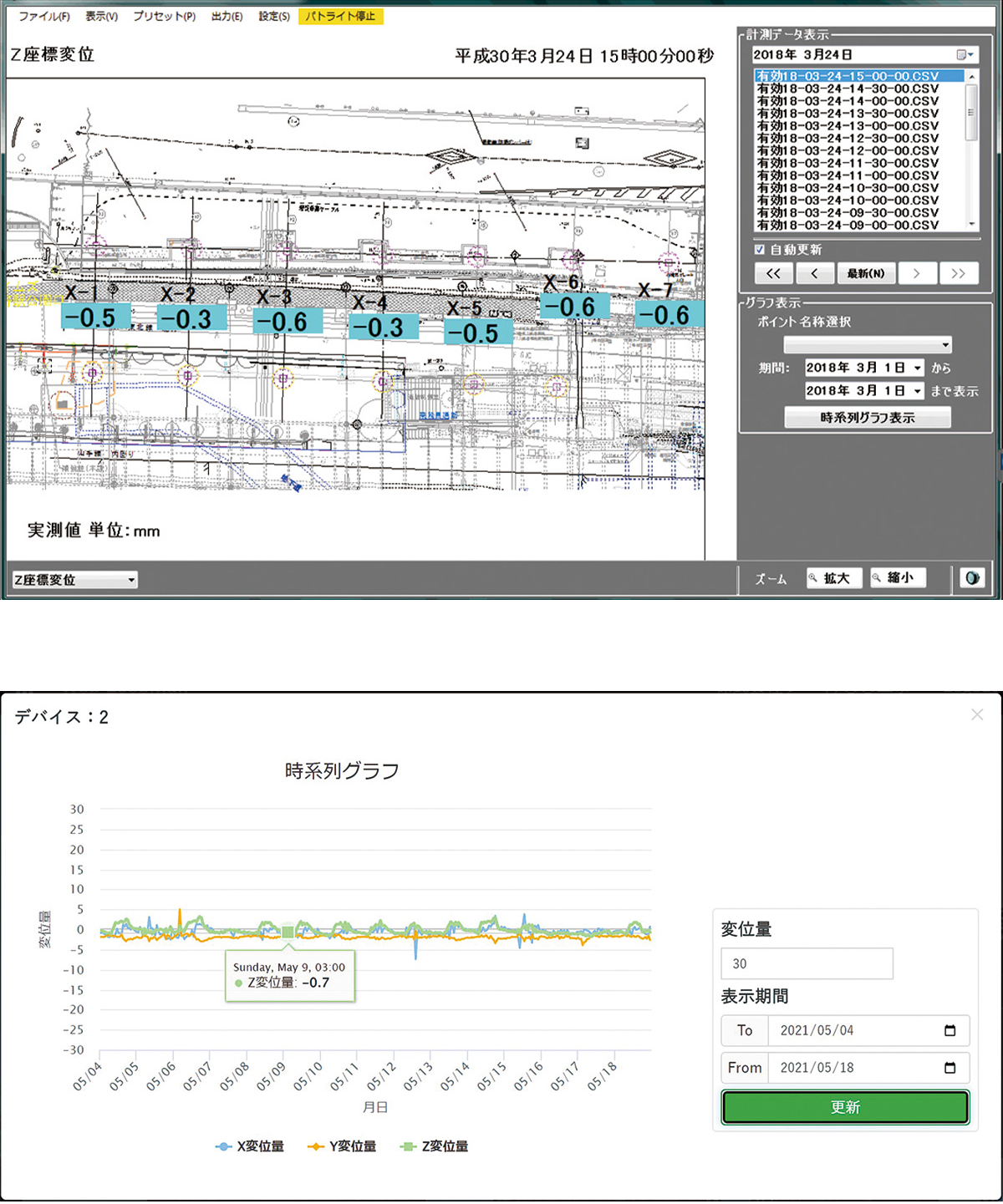

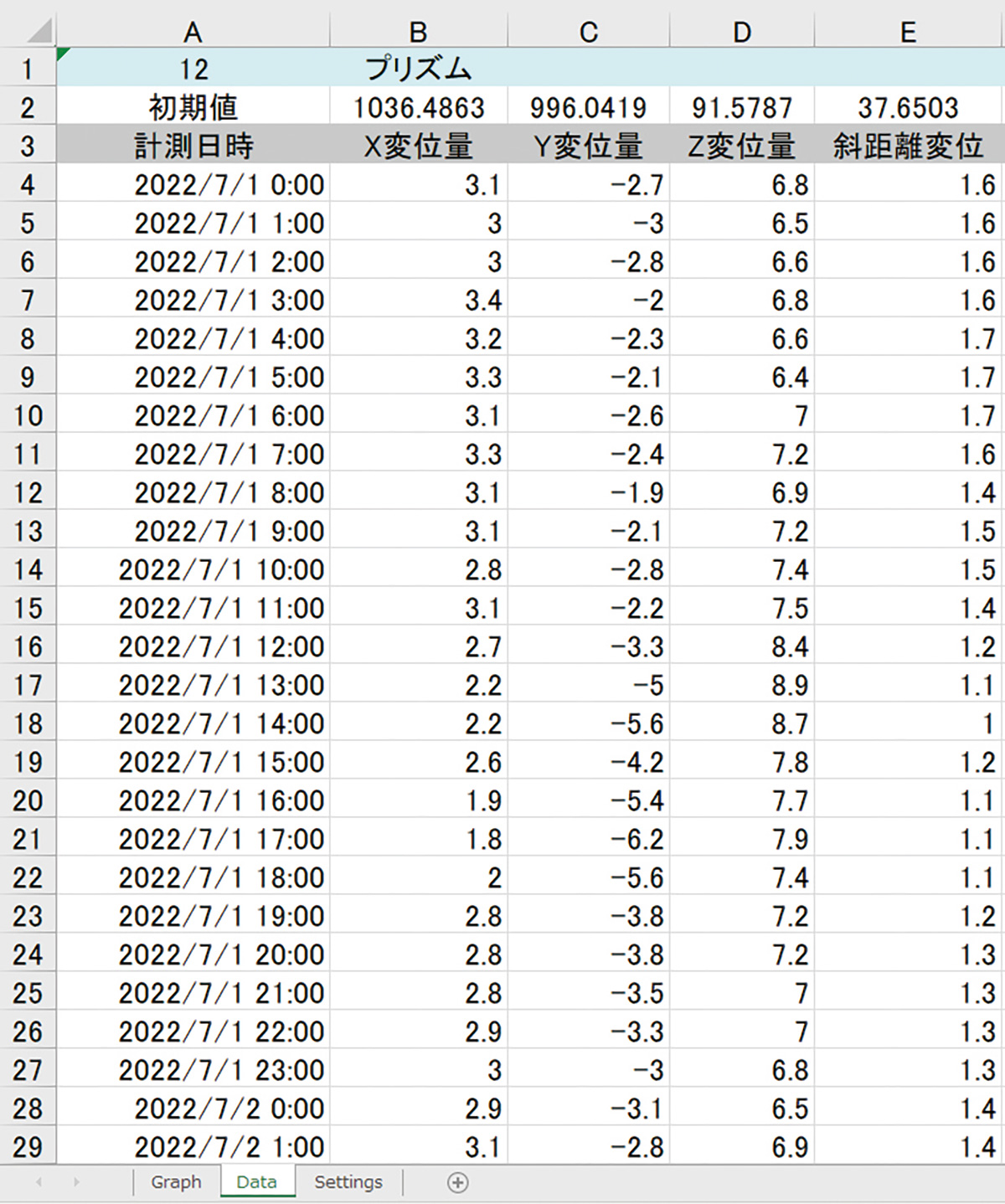

Management Software
Construction Photography
-
![Single-Pipe Base]()

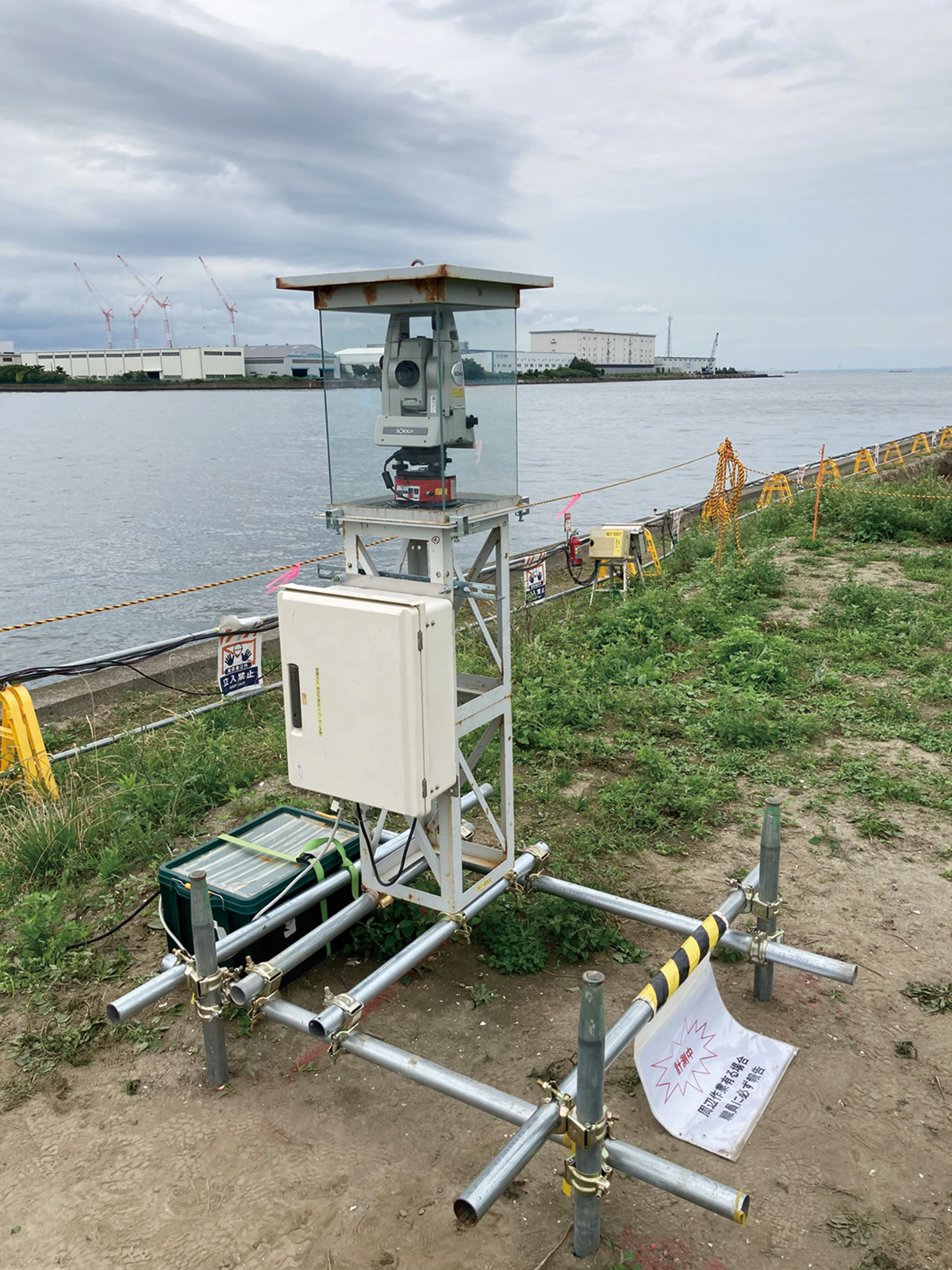

Single-Pipe Base
-
![Concrete Foundation]()

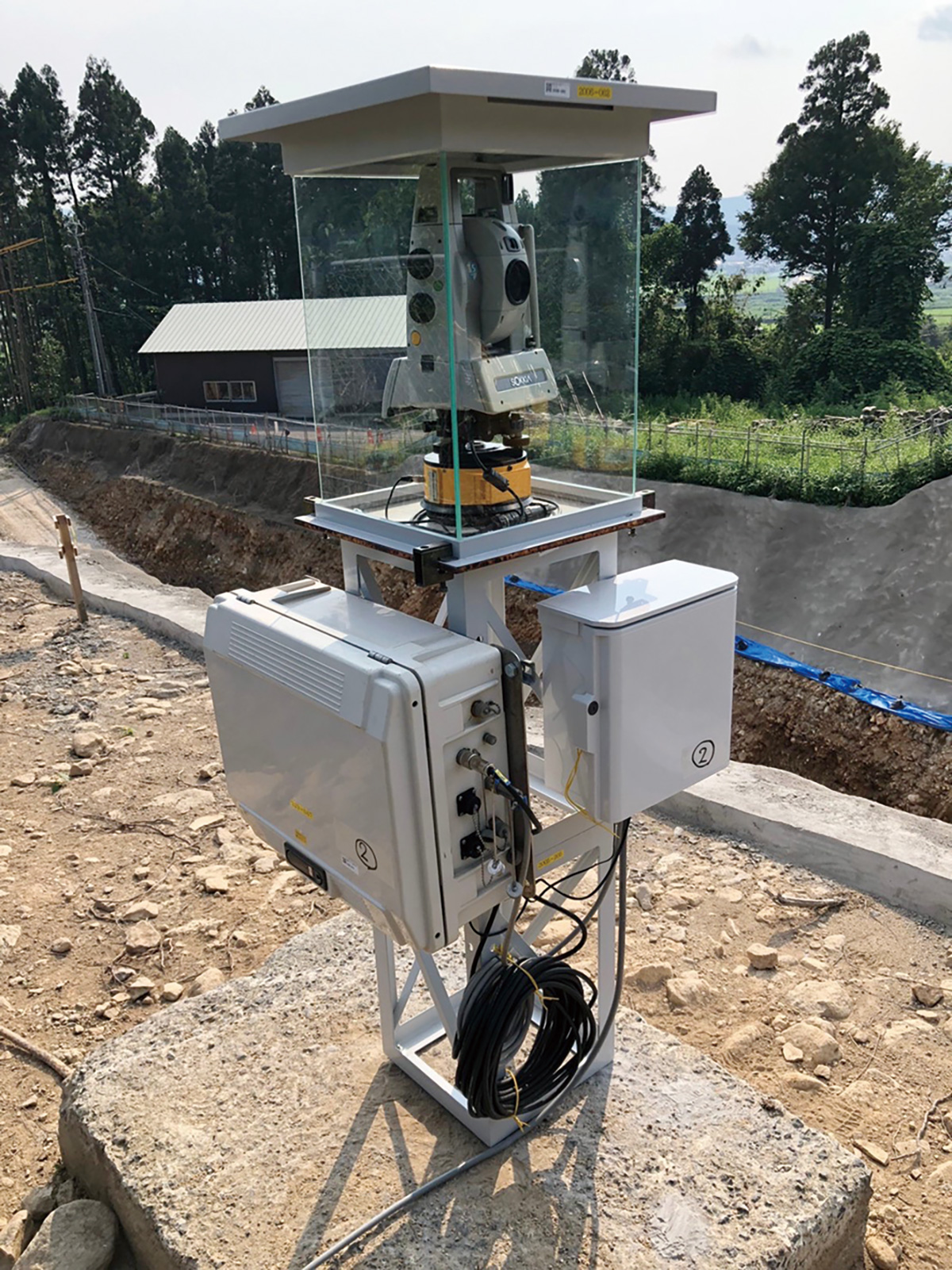

Concrete Foundation
-

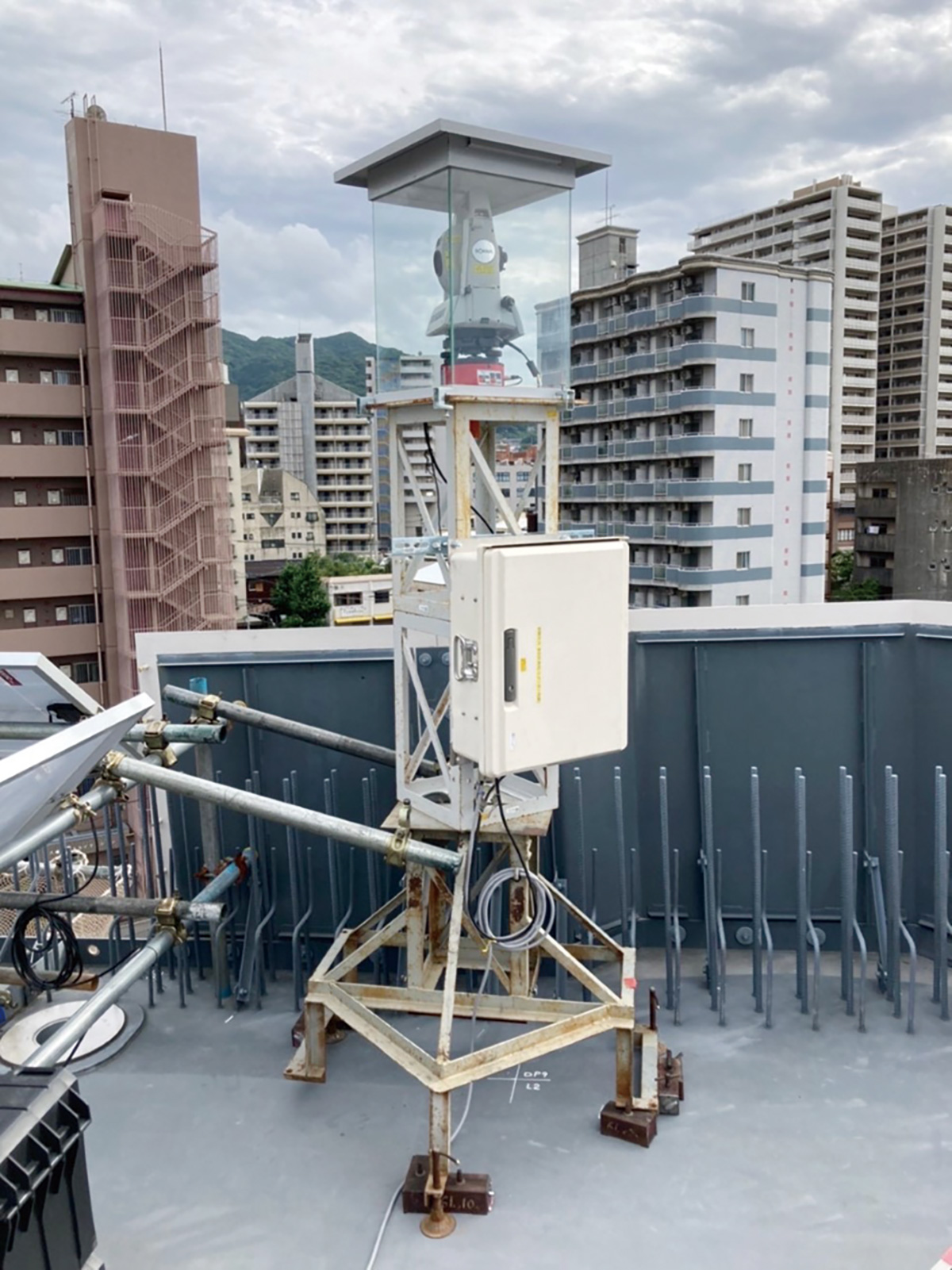

![Portable Stand]()
Portable Stand
-

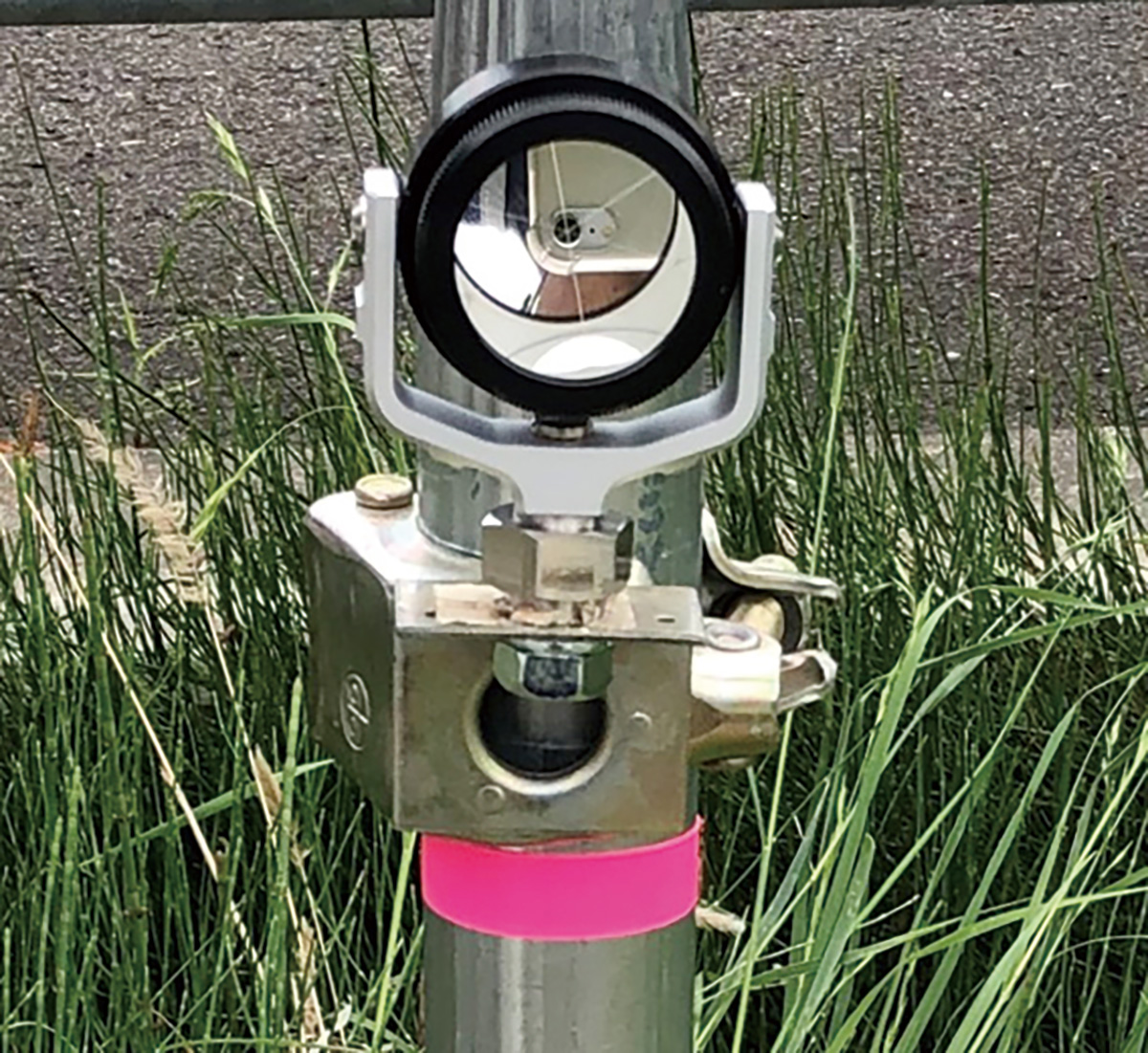

![Prism]()

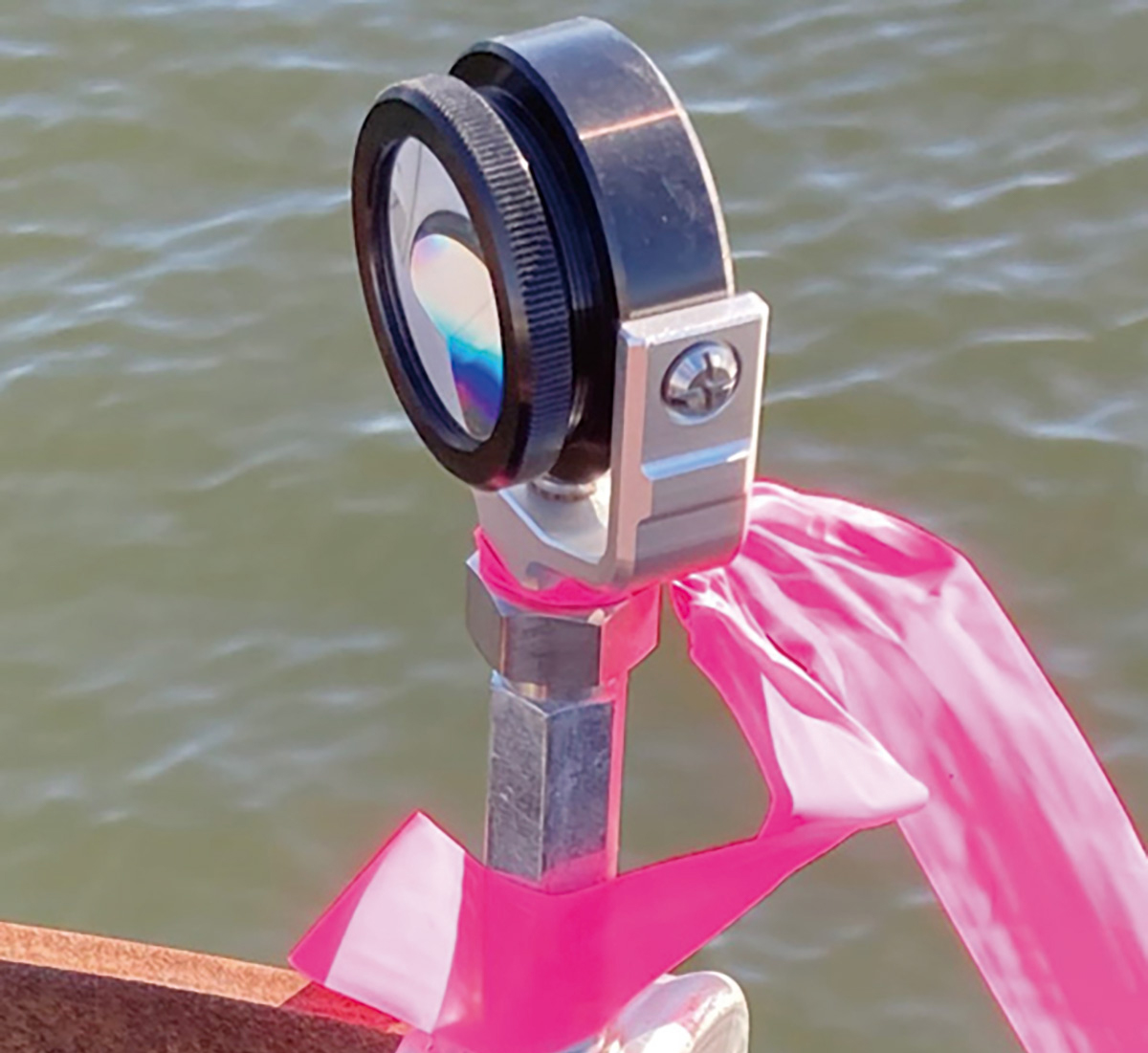

Prism
-
![Prism]()
Prism
