Vibration Monitoring System
Vibration Watcher
KT-230245-A
Conventional vibration measurement devices are often bulky and require external power, limiting where vibration countermeasures can be implemented and making installation cumbersome. The Vibration Watcher requires no external power. Simply place it where vibration needs to be monitored, and it starts measuring immediately.
No software installation is required, so it can be used right after setup. While conventional vibration indicators and measuring devices typically measure at only one location, the Vibration Watcher is easy to install and can be placed in multiple locations. This enables multi point measurement, allowing instant visualization of where and how much vibration is occurring.

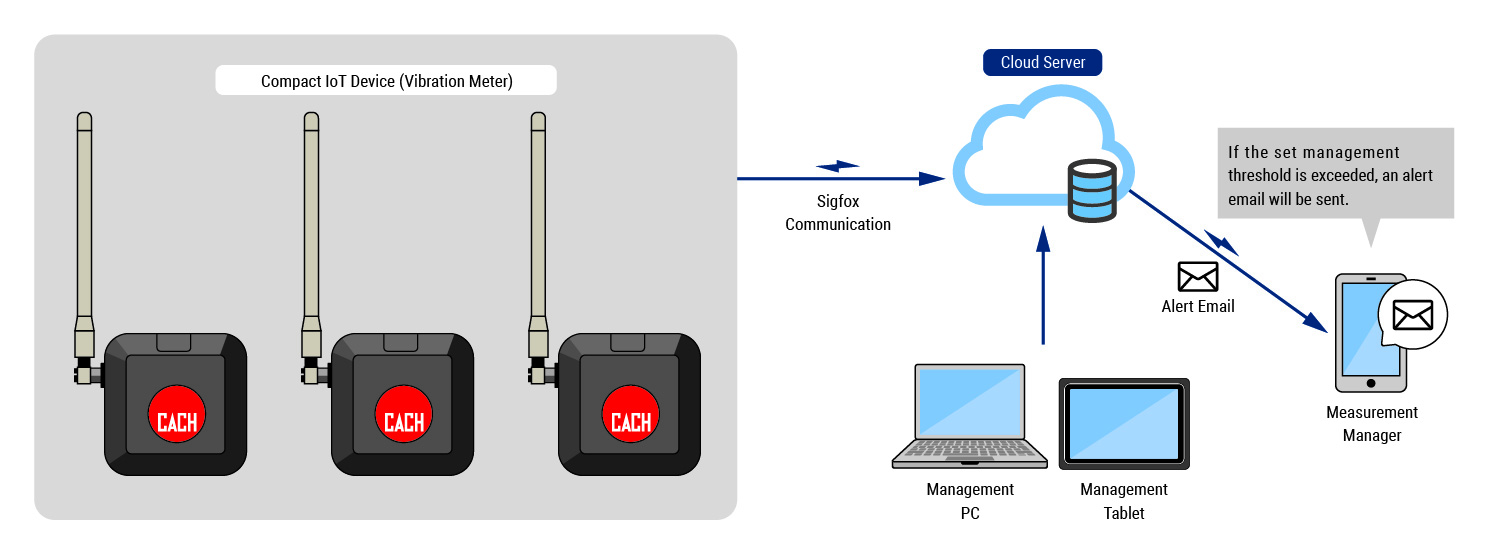

System Configuration
| Item | Unit | Before Implementation |
After Implementation |
|
|---|---|---|---|---|
| Number of Dump Trucks Subject to Vibration Measurement | unit | 42 | 39 | |
| Average Number of Loadings | times / unit | 8.4 | 9.3 | |
| Loading Time | min / unit | 2:44 | 2:59 | |

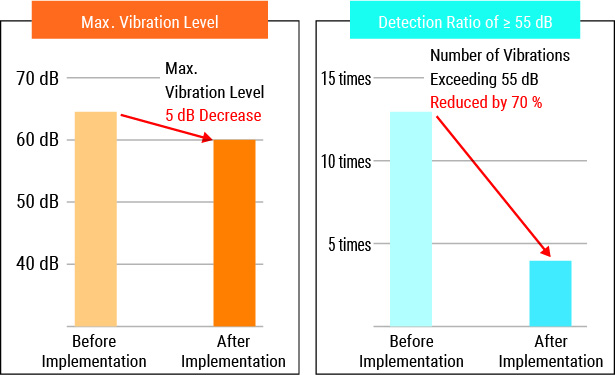

| Vibration Data | Max. Vibration Level | dB | 65 | 60 |
| Detection Ratio of ≥ 55 dB | time | 13 | 4 | |
| Detection Ratio of ≥ 60 dB | time | 1 | 0 | |
