Restricted Area Safety Monitoring System-2D Sensor | Automated Measurement Systems

This system can monitor the intrusion of heavy machinery and personnel by projecting a surface laser. With wireless alarm output, it can be connected to various devices, including rotating warning lights, wristwatch-type alarms, email alert systems, and electronic display boards. Additionally, the built-in camera saves detected objects as image data, allowing later download and review. *Crane automatic stop capability available. (optional accessories)

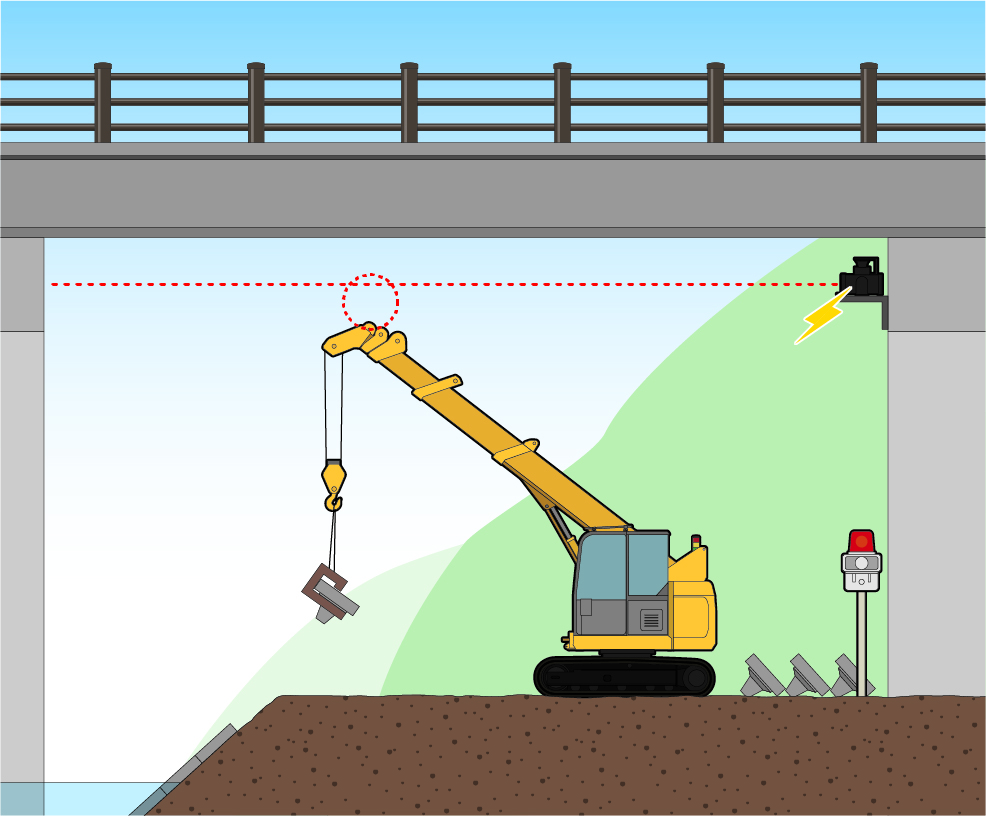

Height Restriction

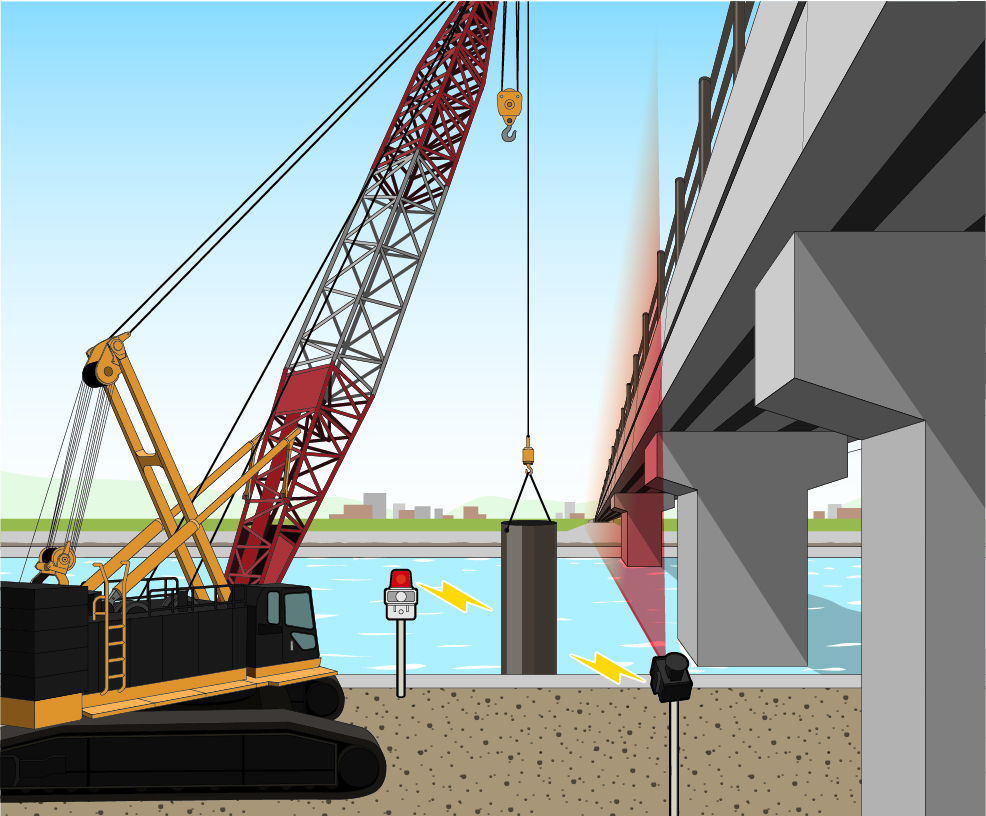

No Entry

Wireless Connection

The tablet and sensor connect wirelessly, eliminating unnecessary wiring. *Communication range is approximately 30 meters.
Schedule Settings

The detection start time and day can be configured.
Alarm Output

Wireless alarm output allows for easy installation.
Image Capture

Continuously recorded using the built-in camera.
Recorded images can be viewed on the tablet.
Detection Settings

Detection areas can be freely configured.

Illumination Distance	Approx. 40m (unit of measurement:0.1 m)
Scanning Angle	180 °(measurement resolution:0.25 °)
Laser Class	Laser Safety Class 1
Waterproof Rating	IP44 Equivalent
Operating Temperature Range	-10 to 50 ℃
Power Supply	AC 100 V
Dimensions	188 (W) ×236 (D) ×196 (H) mm
Weight	Approx. 2975 g
