Bridge Girder Guidance System

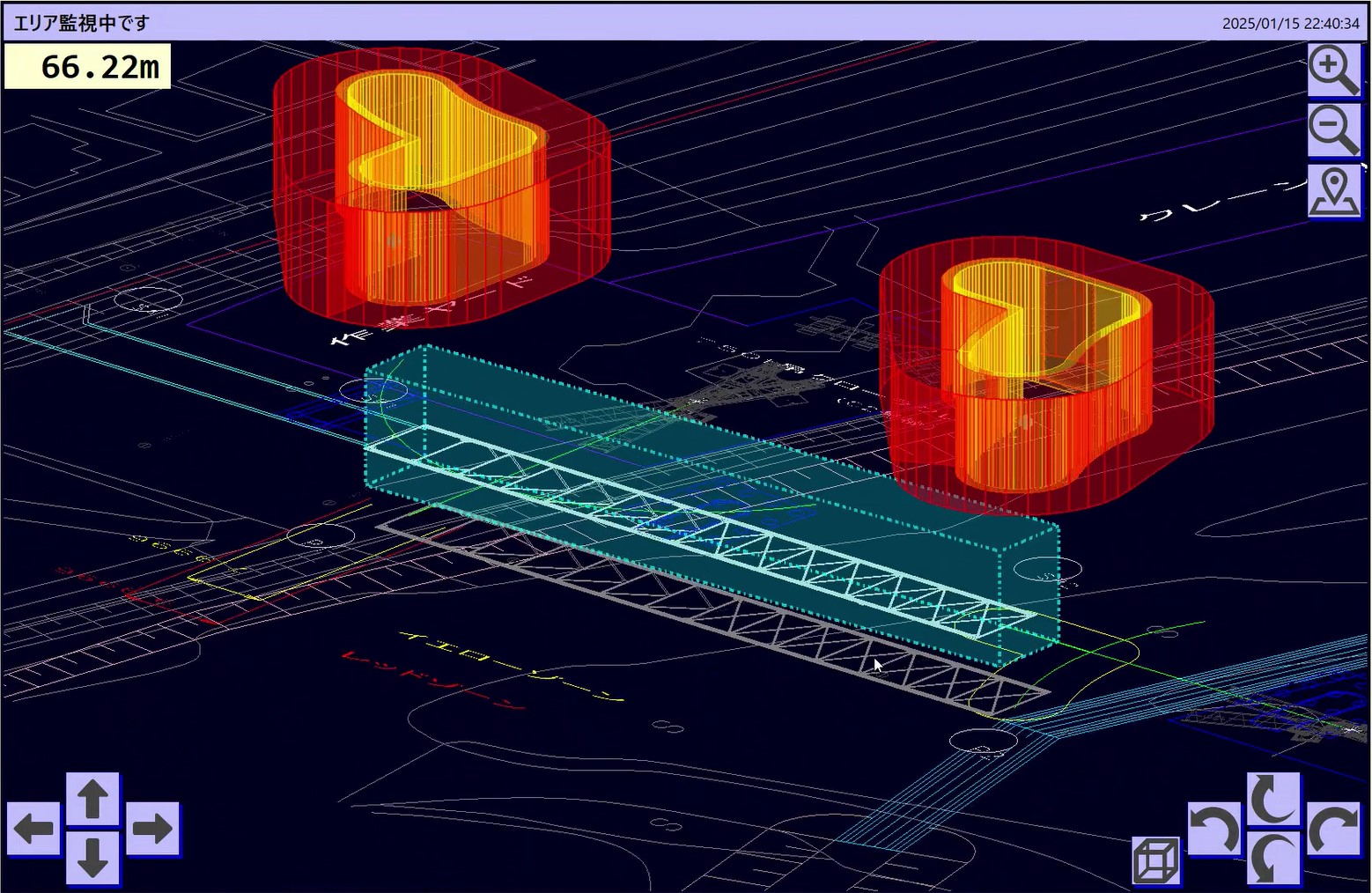

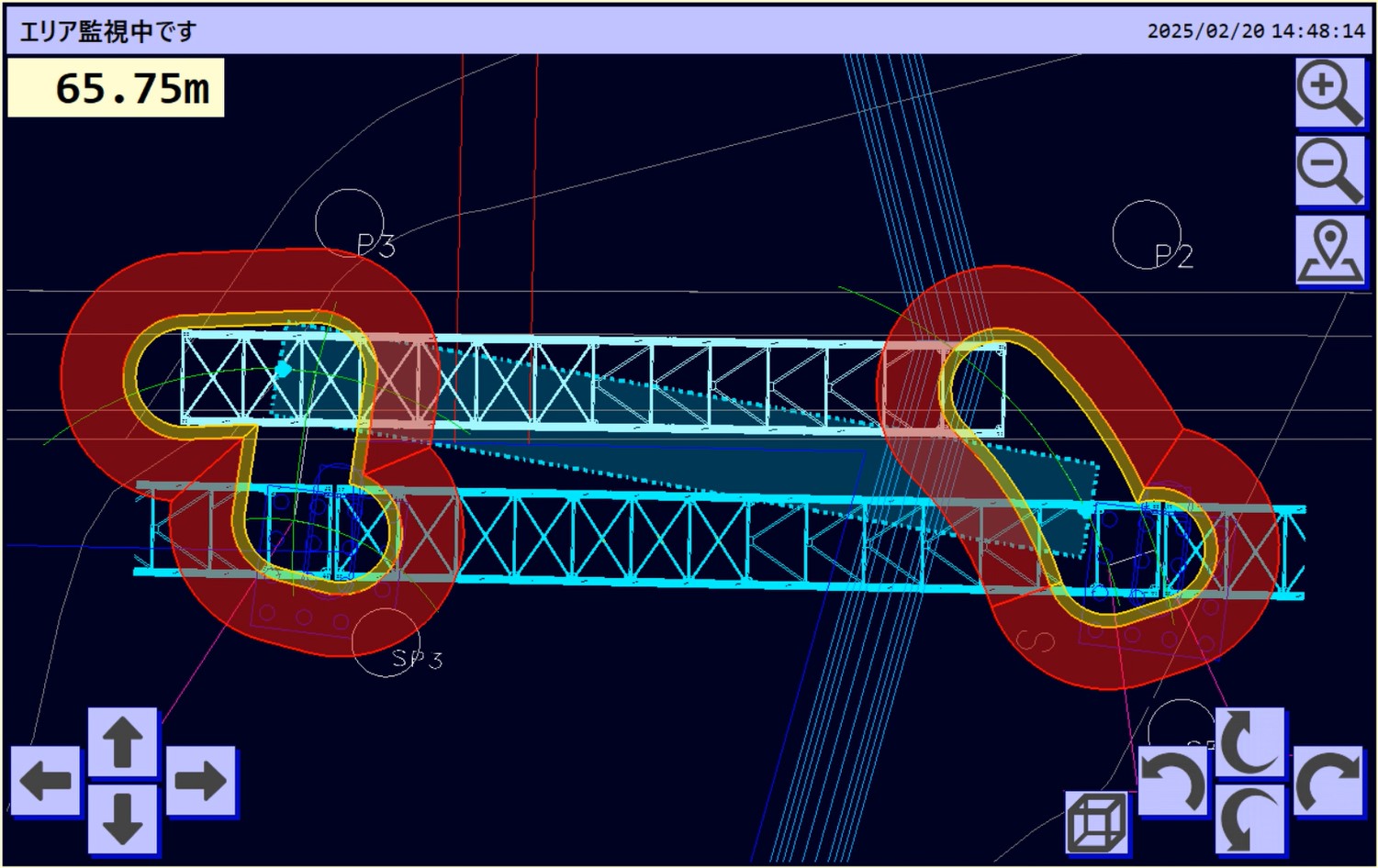

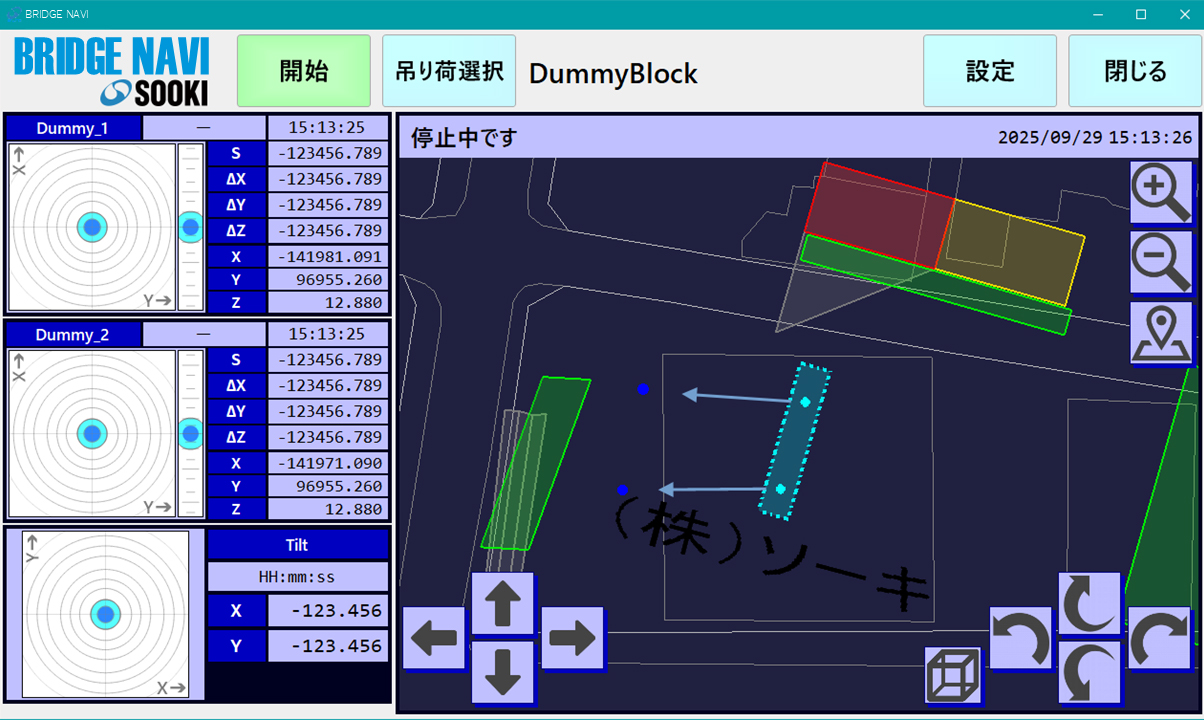

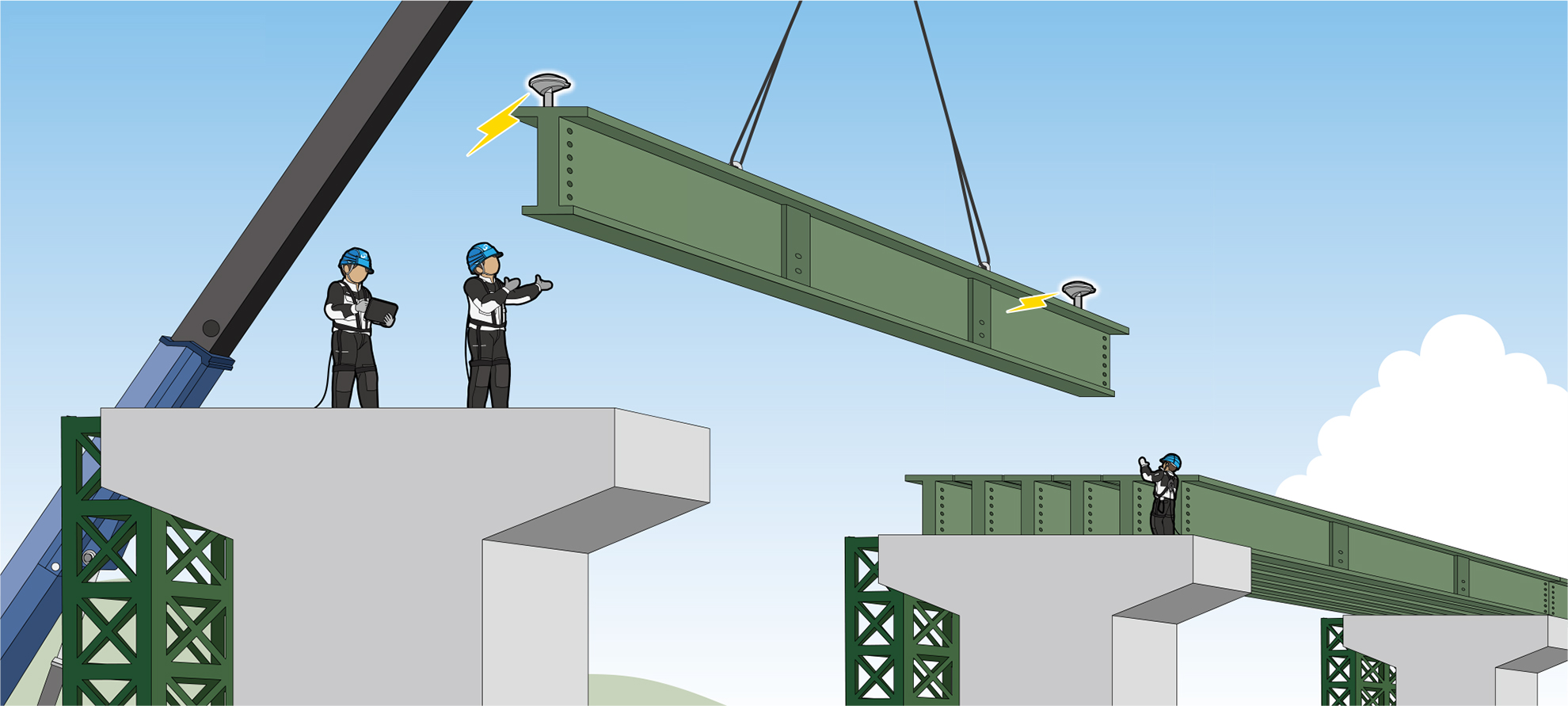

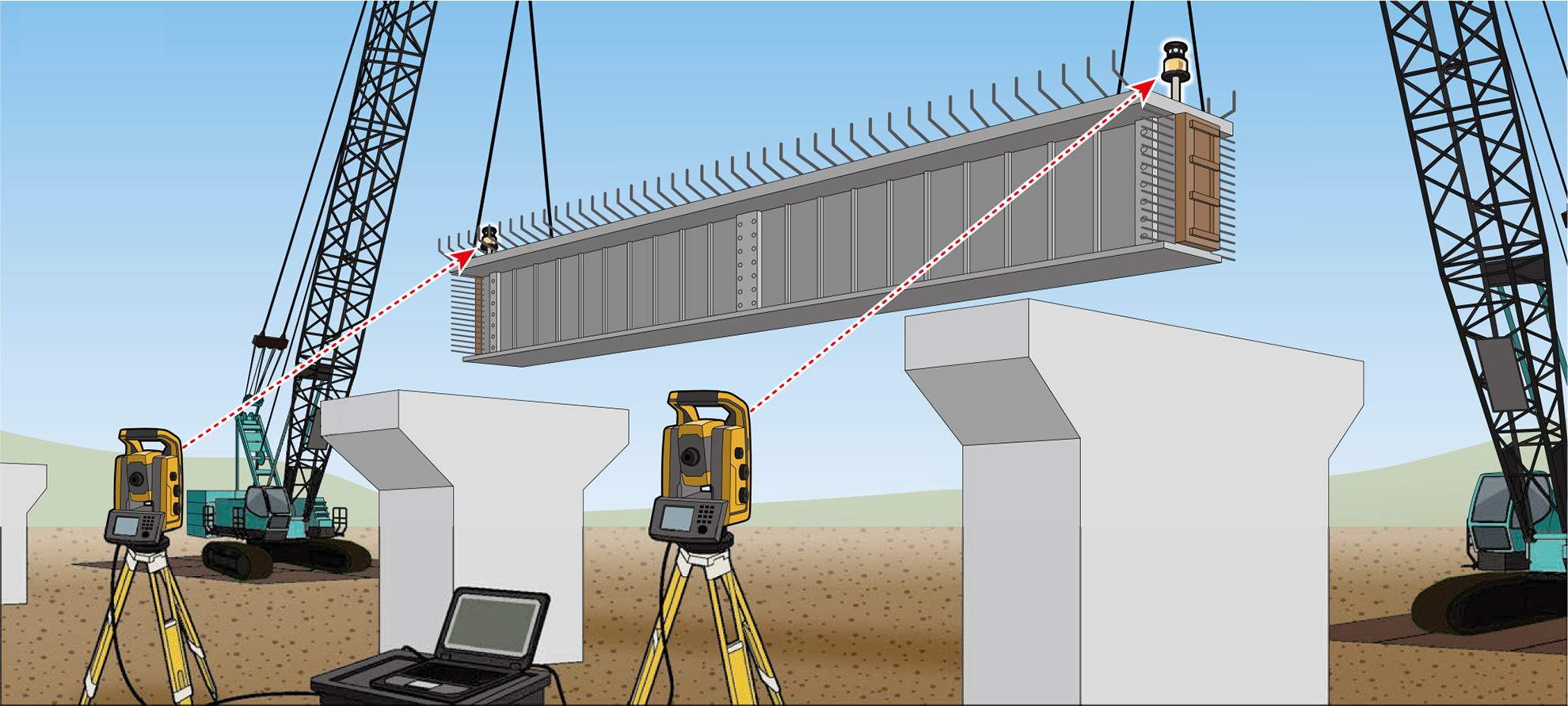

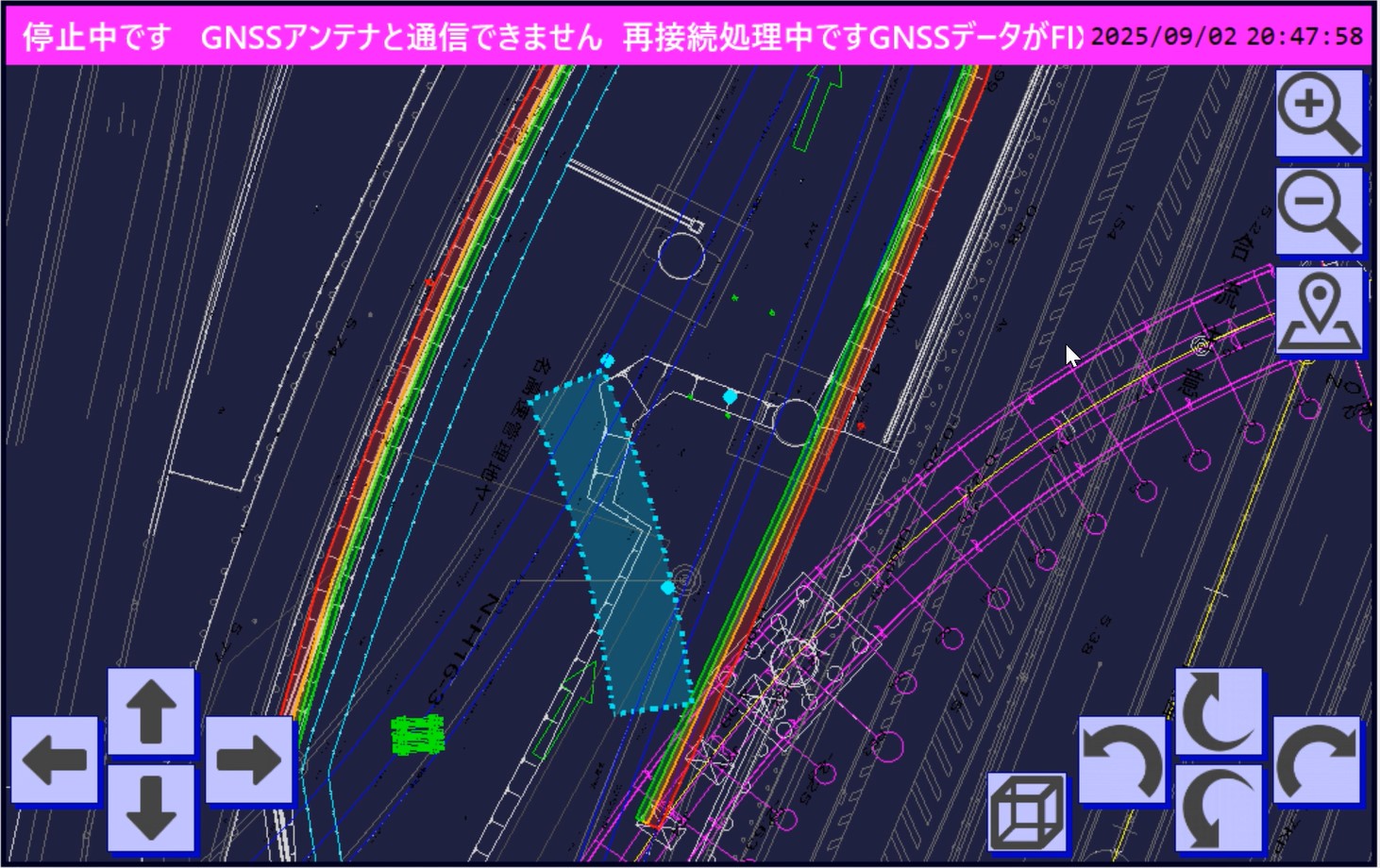

This system uses automatic tracking total stations or GNSS to manage the positions of guided objects based on positioning data, enabling real-time guidance to the target design positions. The system displays the current position, distance, and angle. The data is transmitted wirelessly to the management PC. Operators and managers can confi rm real-time guidance information to the installation position while monitoring the display. Additionally, by using the optional inclinometer, both the guided object's position and balance management can be performed simultaneously.
