The Ministry of Land, Infrastructure, Transport and Tourism (MLIT) has compiled ''the Guidelines for Computerized Construction Management of Embankment Compaction Using Total Stations and GPS (Draft)'', positioning it as the third management method following the conventional sand replacement and RI gauge methods. TE Nav supports both total stations and GPS, assisting in computerized construction for river works, road earthworks, and paving projects.

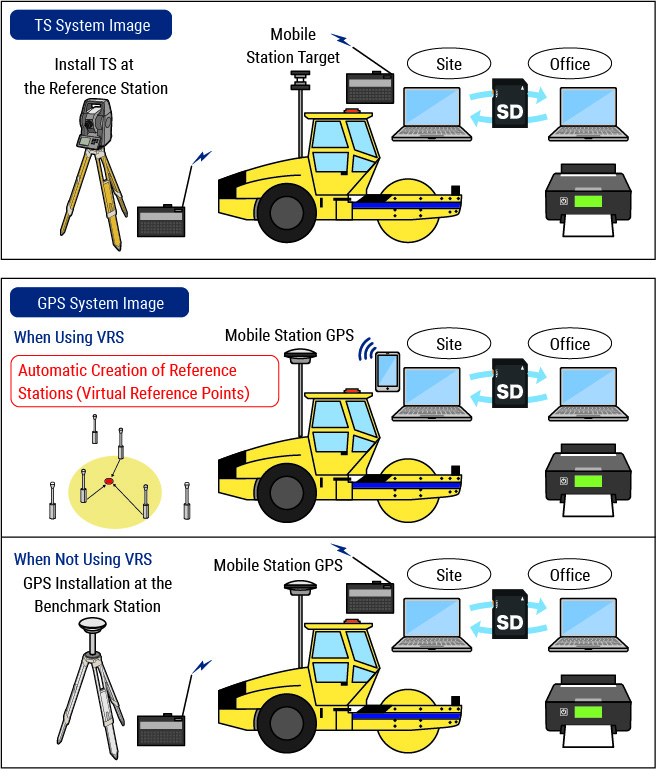

System Image

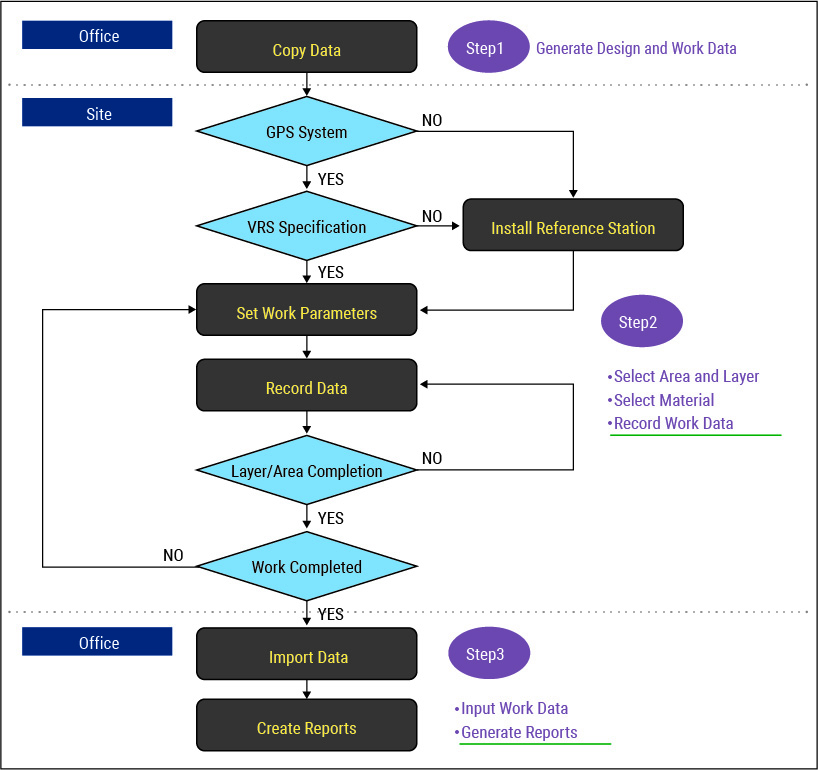

System Flow

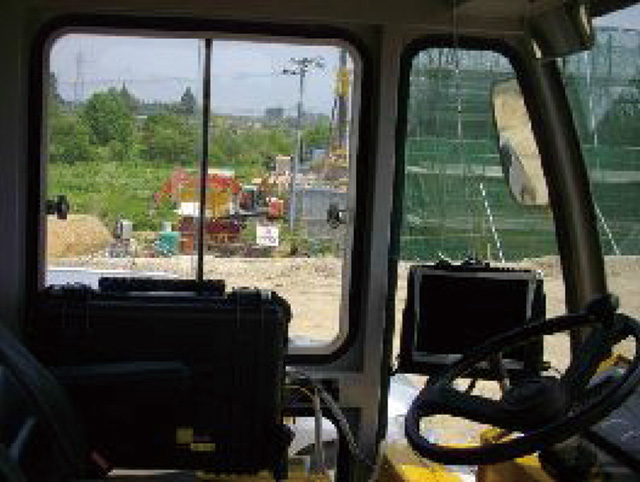

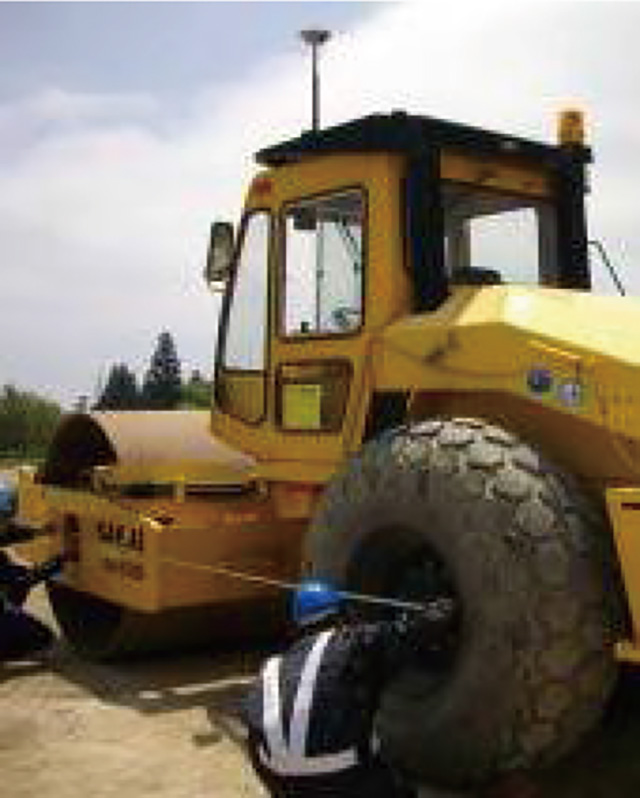

Equipment Installation

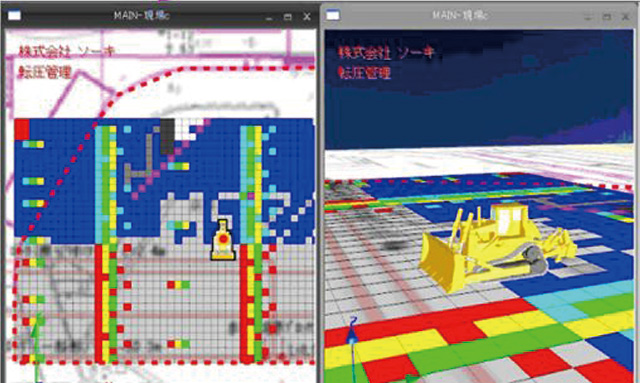

Operator Screen

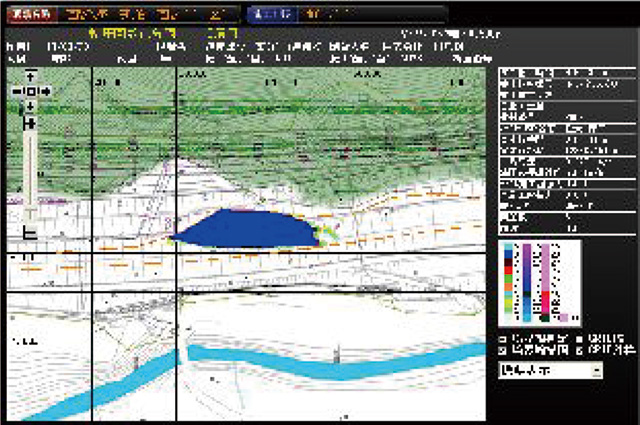

Generate Report

Item	TS (Total Station)	GPS (Global Positioning System)
Item	TS (Total Station)	VRS Usage	No VRS
Accuracy	Horizontal : ±1 to 3 mm Vertical : ±1 to 3 mm	Horizontal : ±10 to 20 mm Vertical : ±20 to 30 mm
Scope of Work	Approx. 700 m × 700 m /Section	No Restrictions	Approx. 700 m × 700 m /Section
Line of Sight	Do Not Obstruct the TS Laser Sighting.	Ensure Continuous Satellite Signal Reception.
Weather	Measurements Cannot Be Performed in Severe Weather.	All-Weather
Units in Operation	Multiple Units / Section	Multiple Units / Section
Overall Evaluation	Provides Stable Accuracy and Measurements, but Managing The TS Requires Considerable Effort. Suitable for Medium-Scale Earthworks.	System Management is Easy, but Data Stability is Lower. Suitable for Large-Scale Earthworks.
