Wireless Tilt Monitoring System for Heavy Machinery & Suspended Loads
Real-Time Inclination Monitoring System
QS-190042-VE
This system is a safety support solution that uses wireless inclinometers attached to heavy machinery and suspended loads to monitor tilt in real time. Previously managed through visual confirmation by supervisors, tilt conditions can now be monitored quantitatively and in real time, thereby contributing to improved workability and safety. *Crane automatic stop capability available. (optional accessories)
Overview Diagram
-
![OutriggerManagement]()

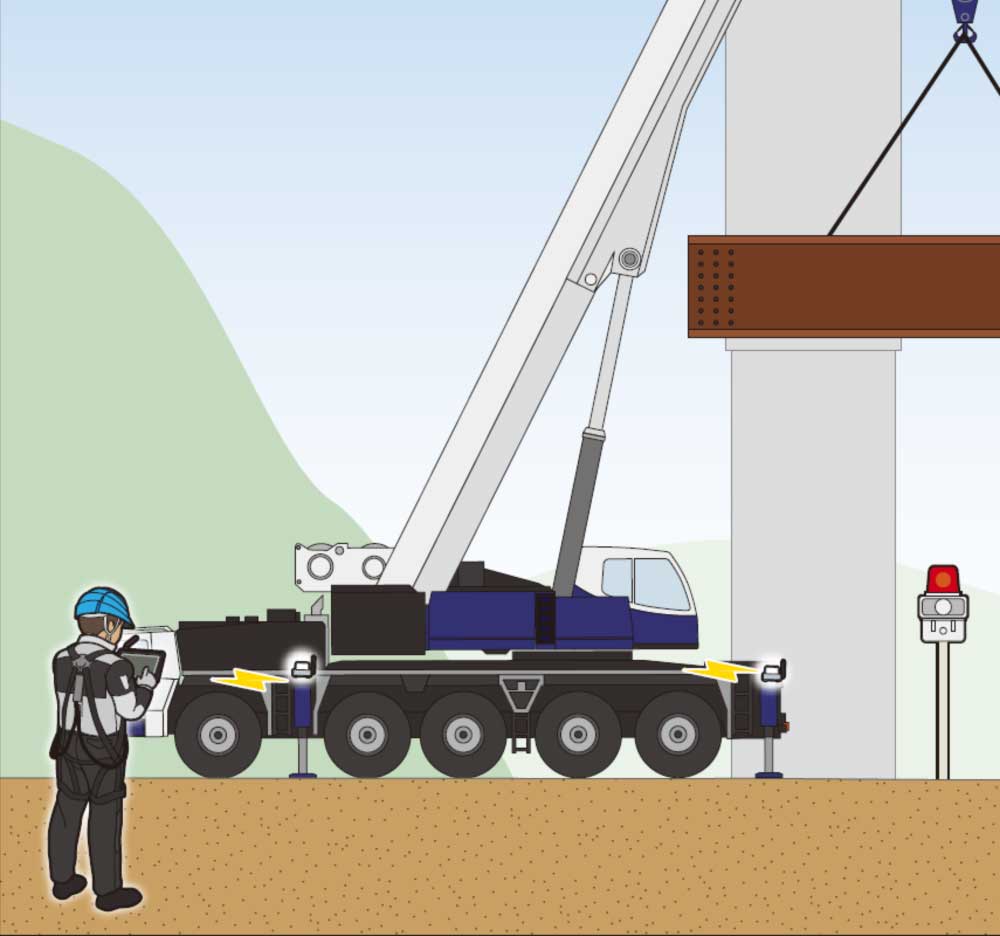

Outrigger Management
-
![JointManagement]()

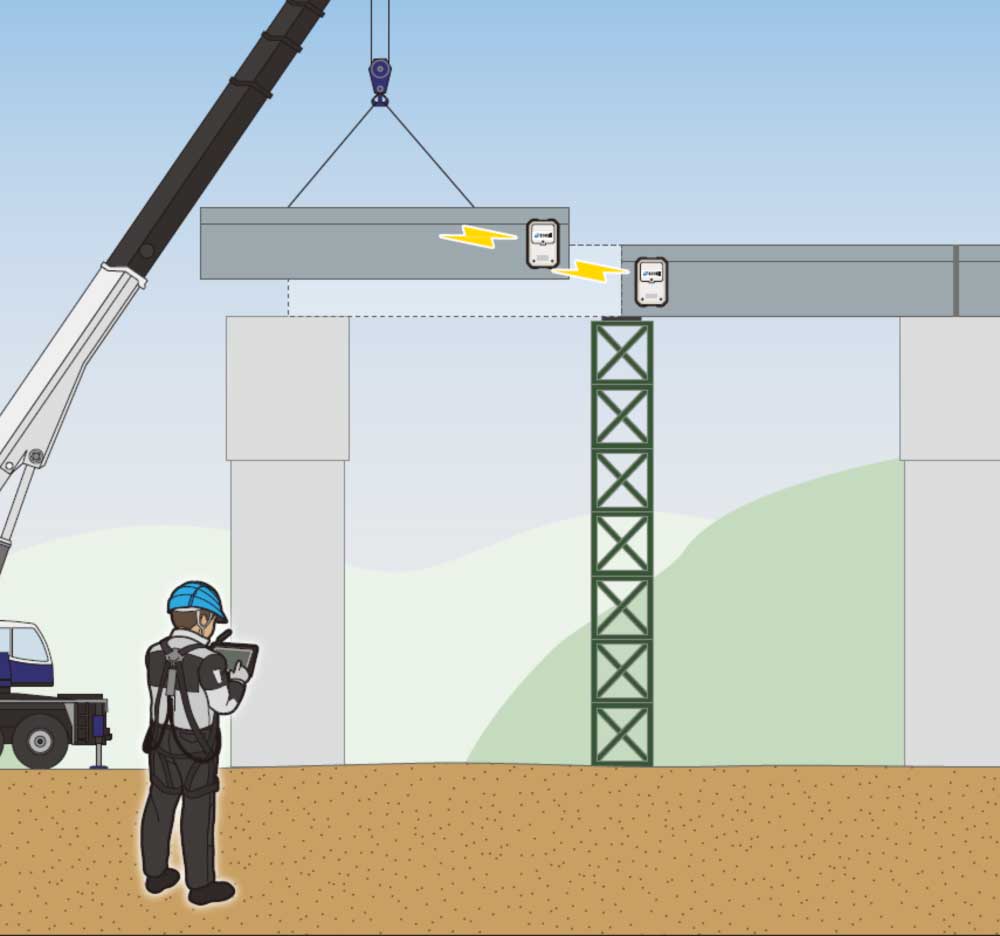

Joint Management
-
![Overview Diagram]()

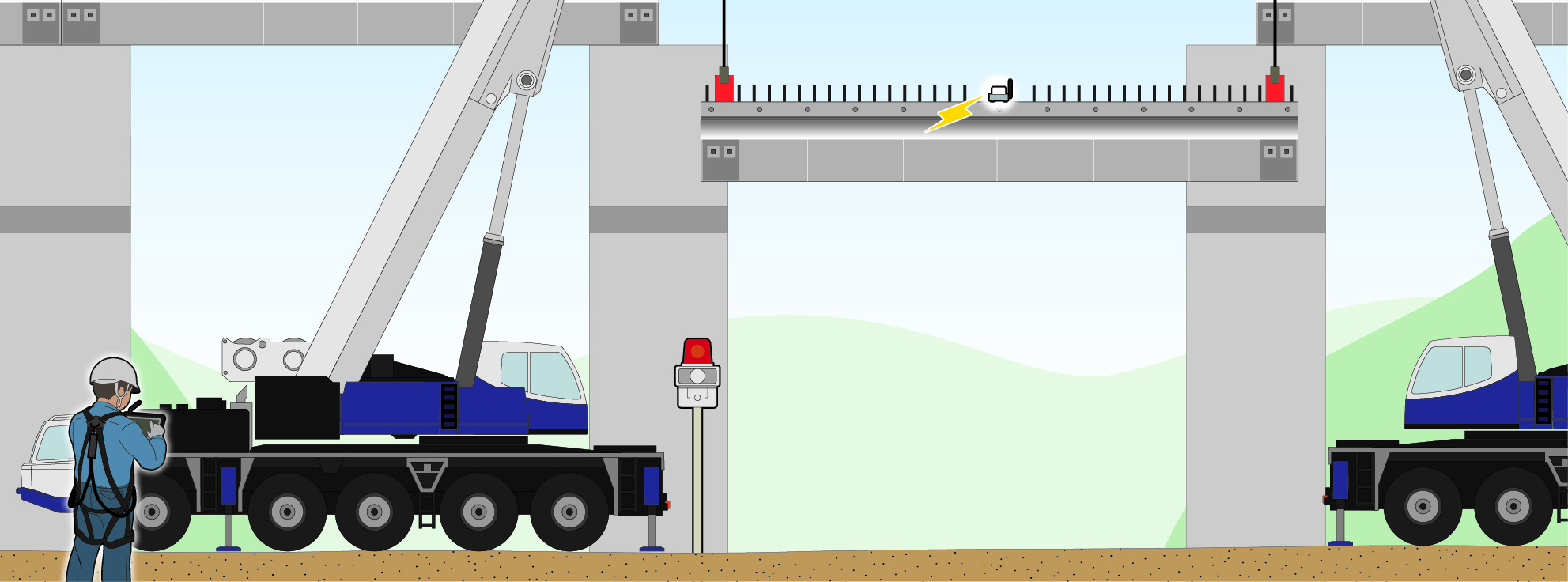

Suspended Load Management
System Configuration

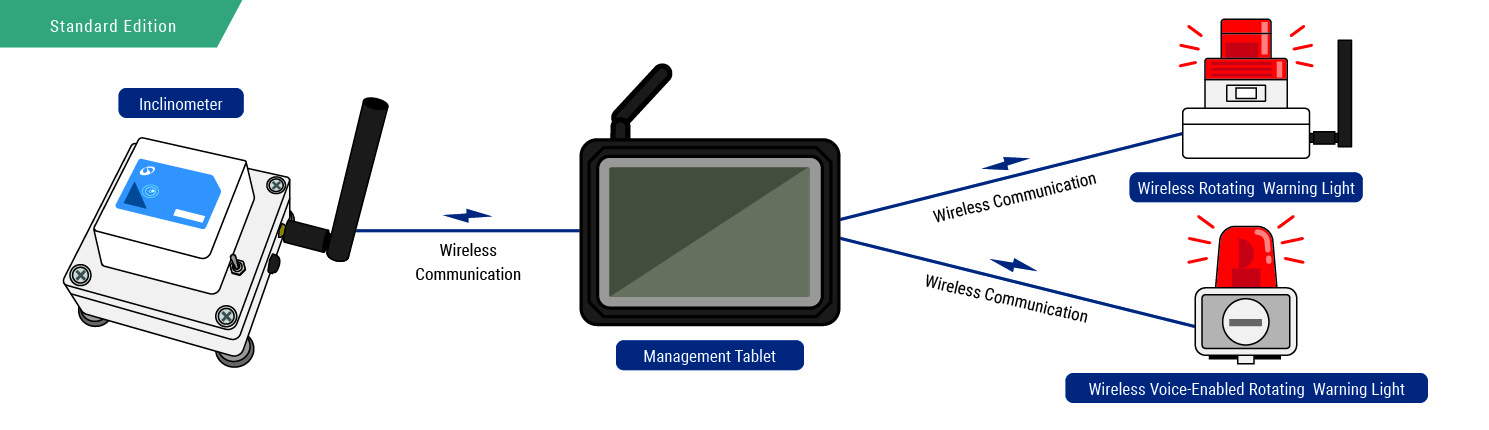

Standard Edition

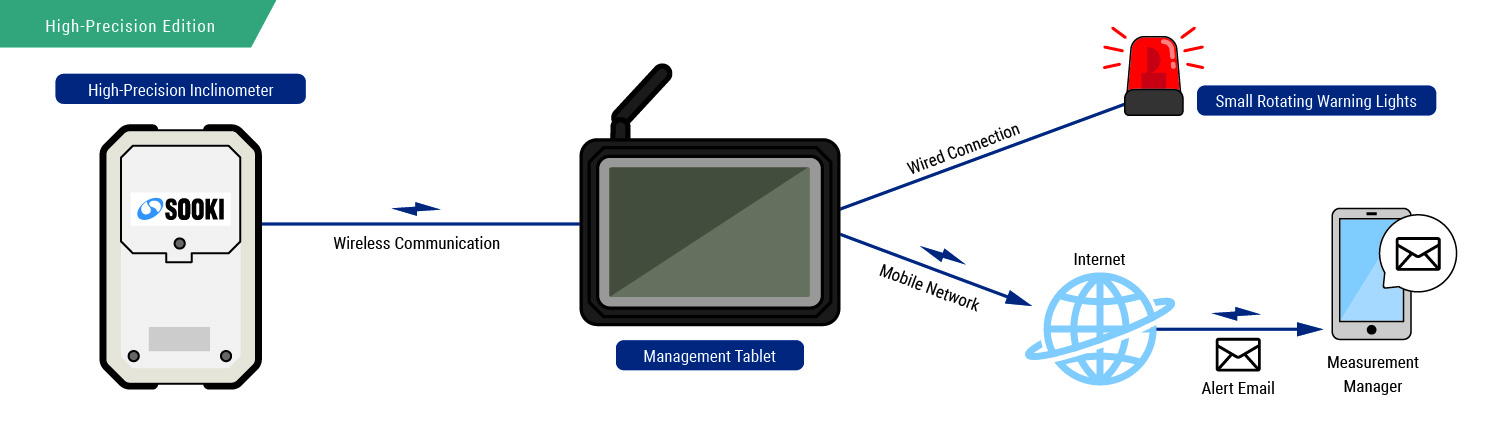

High-Precision Edition

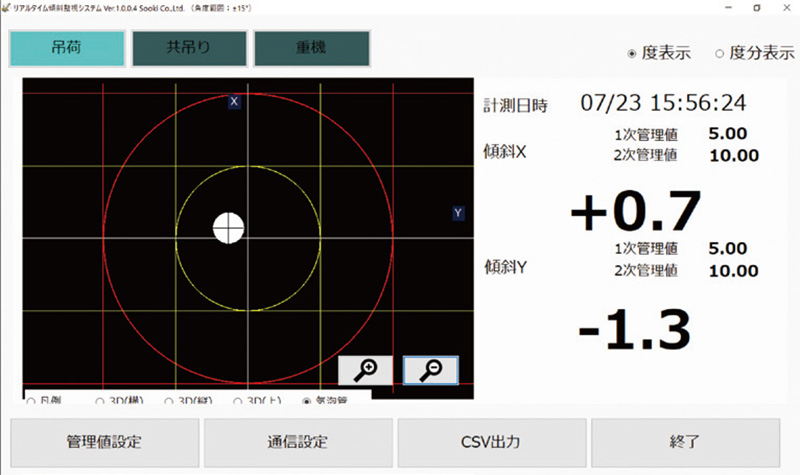

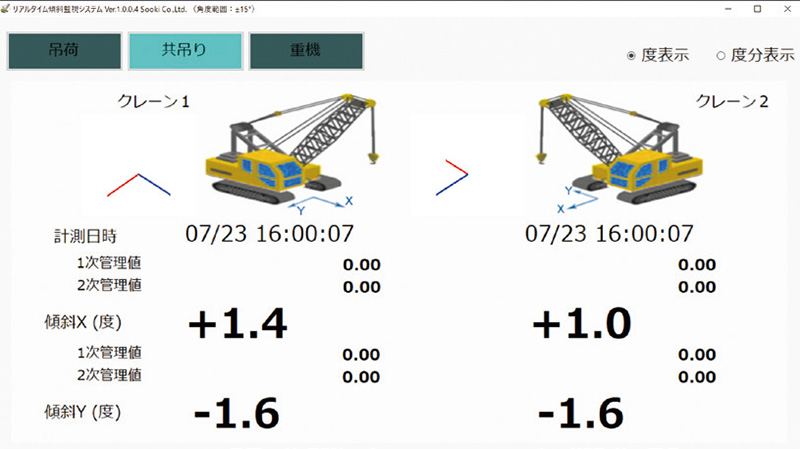

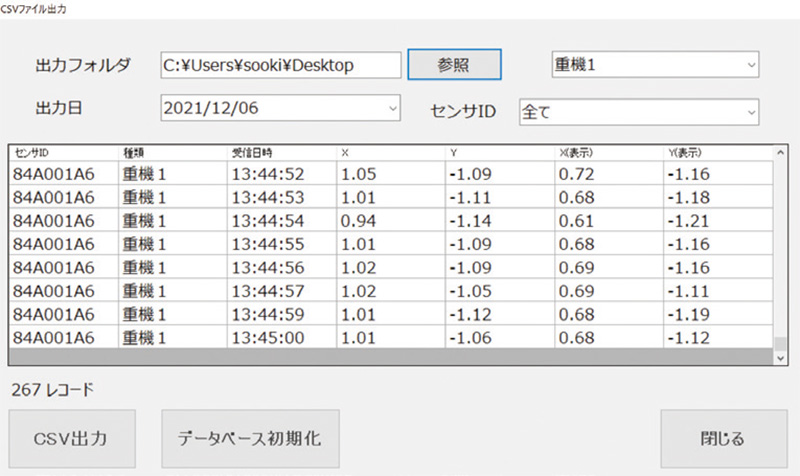

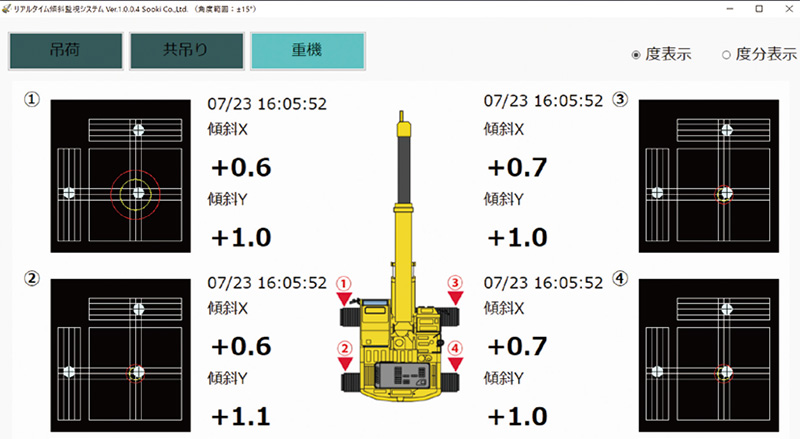

Management Software
Specifications
| High-Precision Edition | Standard Edition | |
|---|---|---|
| Measurement Range | ± 10 ° | ± 15 ° |
| Reproducibility | 0.001 ° | 0.2 ° |
| Resolution | 0.0002 ° | 0.1 ° |
| Data Transmission Interval | 1s | |
| Unit of Measurement | Degree, % | Degree |
| Wireless Communication Range | Line-of-Sight Approx. 100 m | |
| Power Supply | 2 × AA battery | 3 × AA battery |
| Battery Life | About a Month | About a Week |
| Dust/Waterproof | IP 67 | IP 54 |
| Operating Temperature | -10 ℃ to 55 ℃ | -10 ℃ to 50 ℃ |
| Alarm Output | Primary, Secondary, Tertiary Alarm | Primary, Secondary Alarm |
