Construction Site Safety Monitoring System
Sky Watch
QS-220040-A
This system utilizes GNSS and the automatic tracking function of total stations to acquire real-time position information of cranes and suspended loads, enabling 3D monitoring of the construction area. When an object enters a preset alert zone, rotating warning lights or buzzers notify operators and workers of potential hazards. Additionally, since the coordinate data calculated through simulation can be replayed within the software, it is possible to confirm the movements of the boom top and suspended load in advance.
*Crane automatic stop capability available. (optional accessories)
Overview Diagram
-
![Work Area Monitoring]()

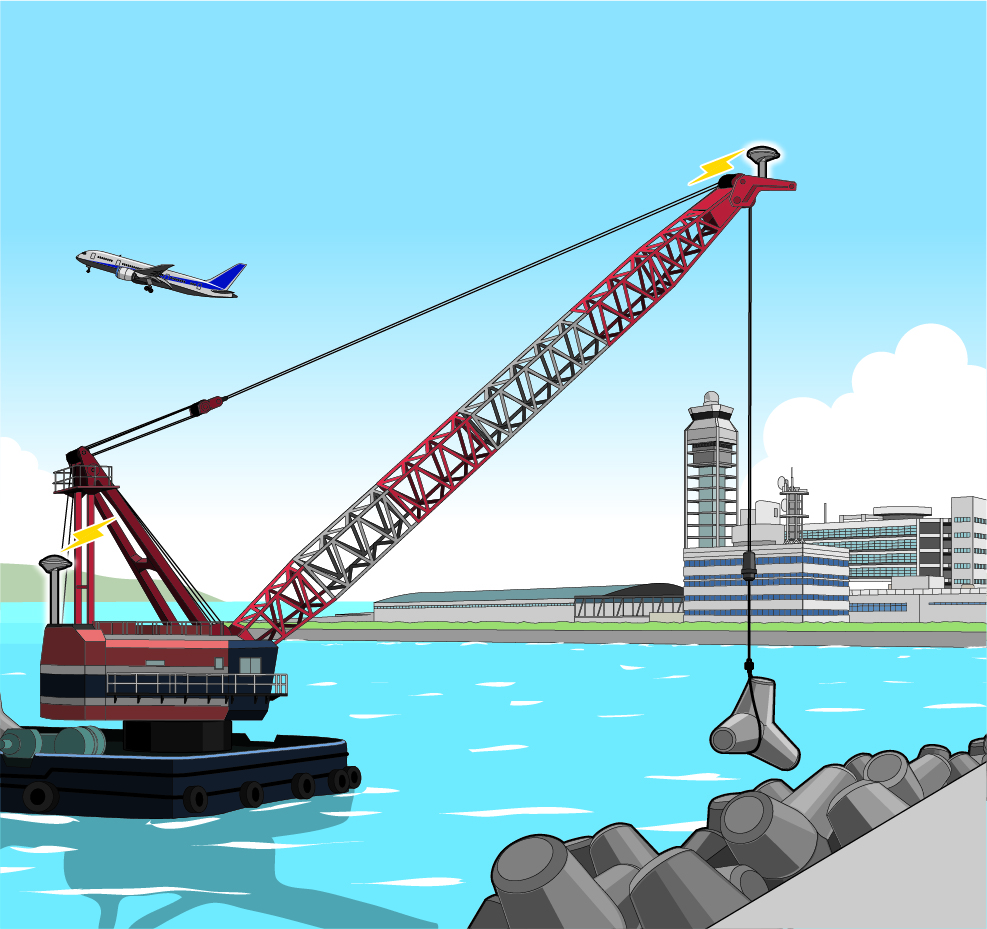

Work Area Monitoring
-
![Height Restriction]()

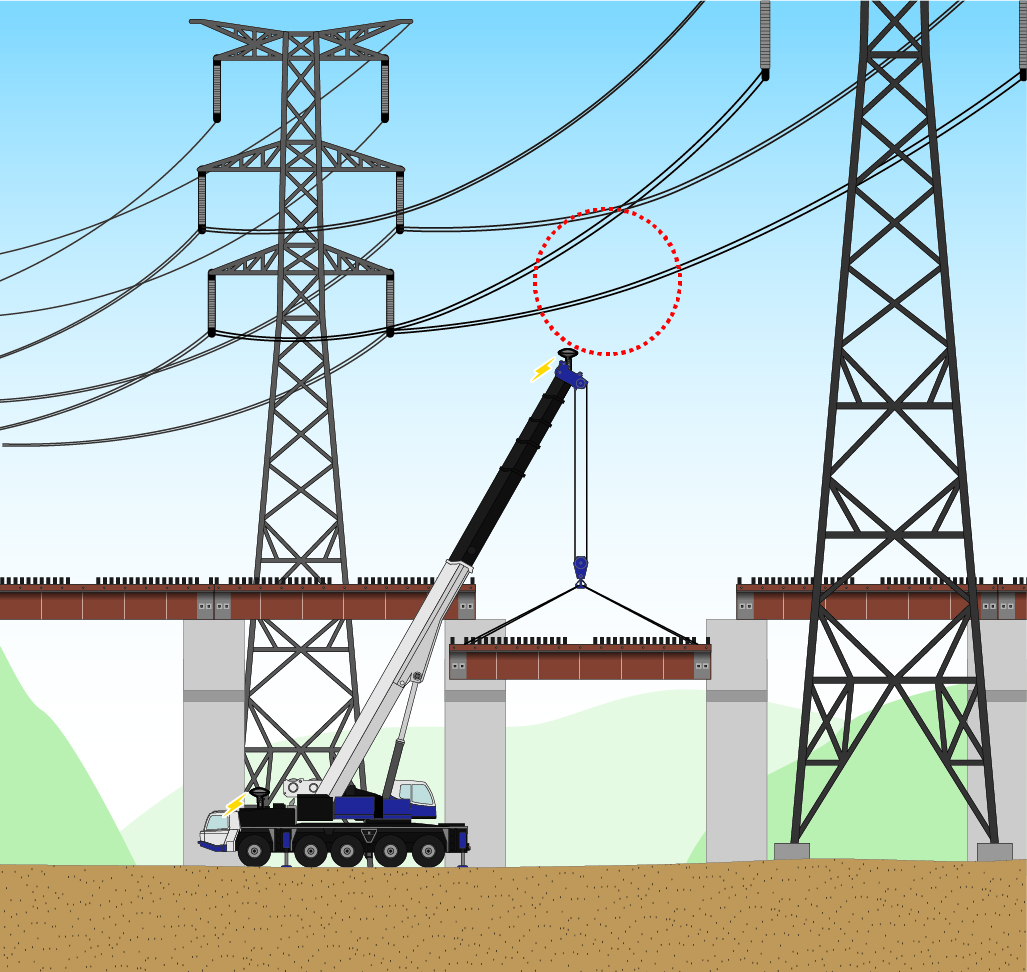

Height Restriction
-
![Crane Contact Prevention]()

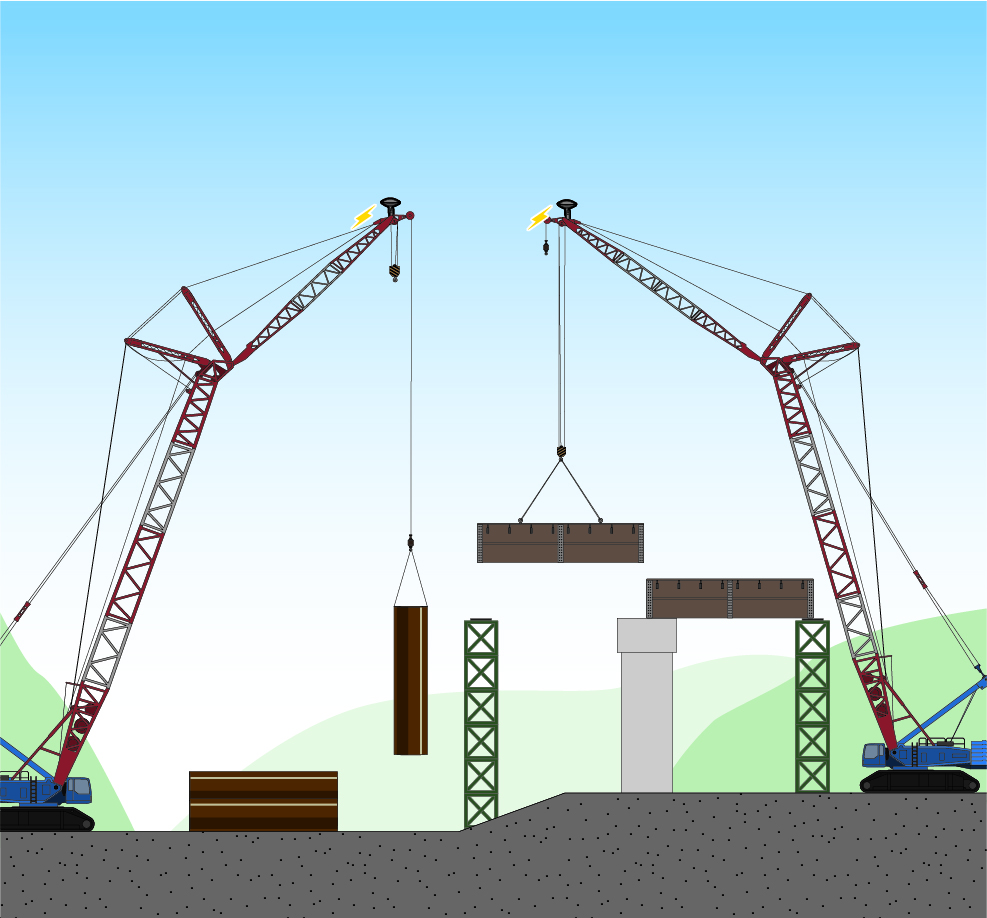

Crane Contact Prevention
-
![Load Contact Prevention]()

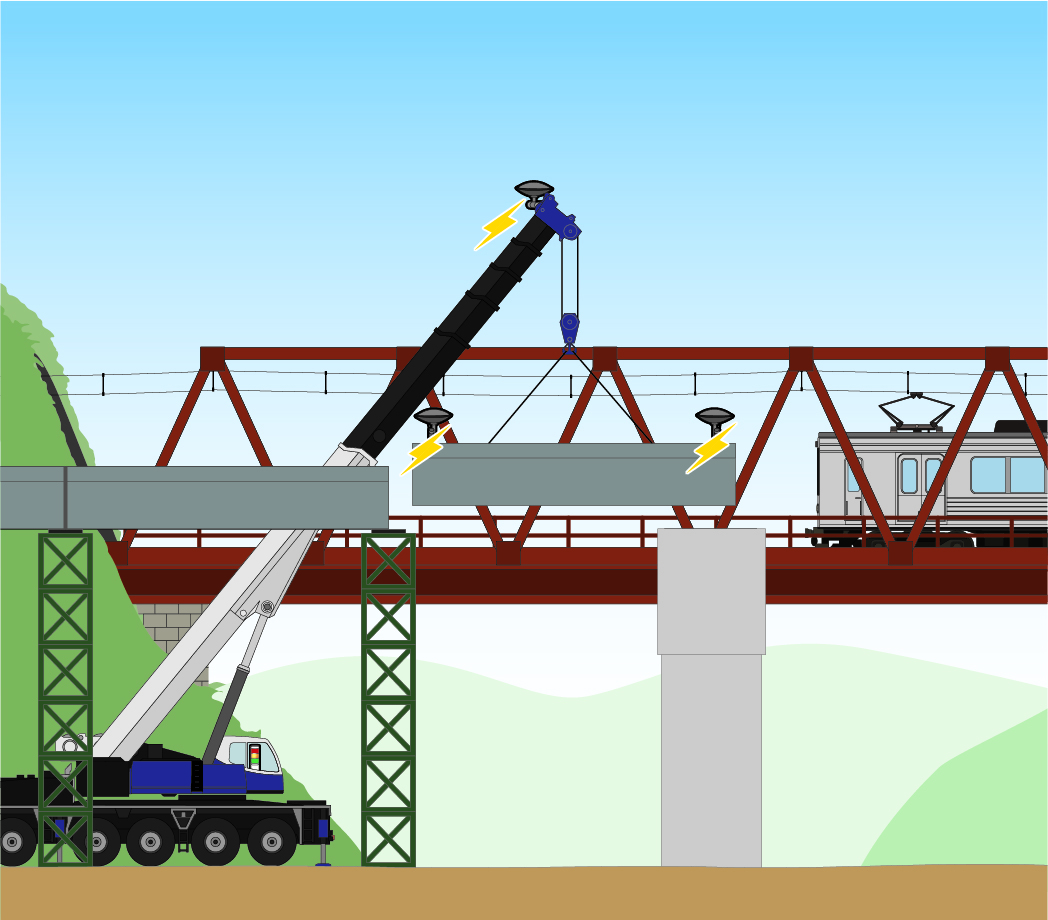

Load Contact Prevention

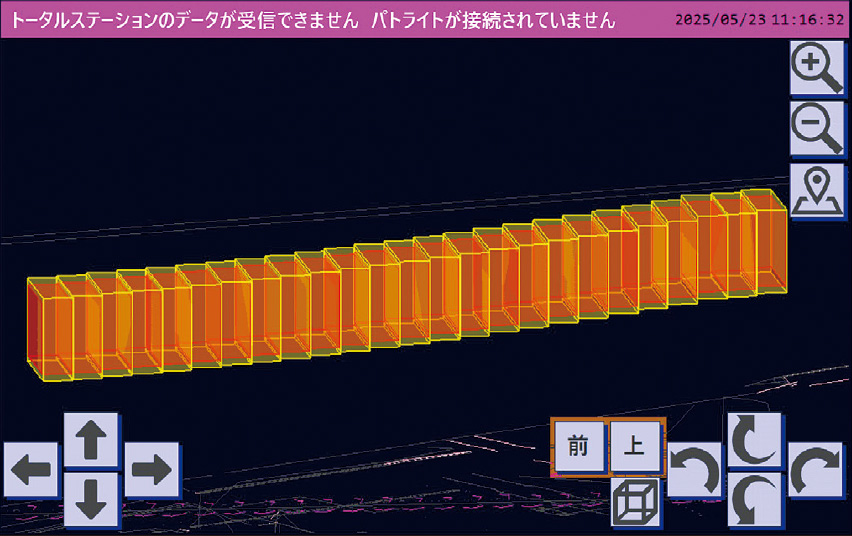

Management Software(Alert zones can be set at three levels, and trajectory maps for each GNSS receiver can be exported.)
-
![Management Software]()

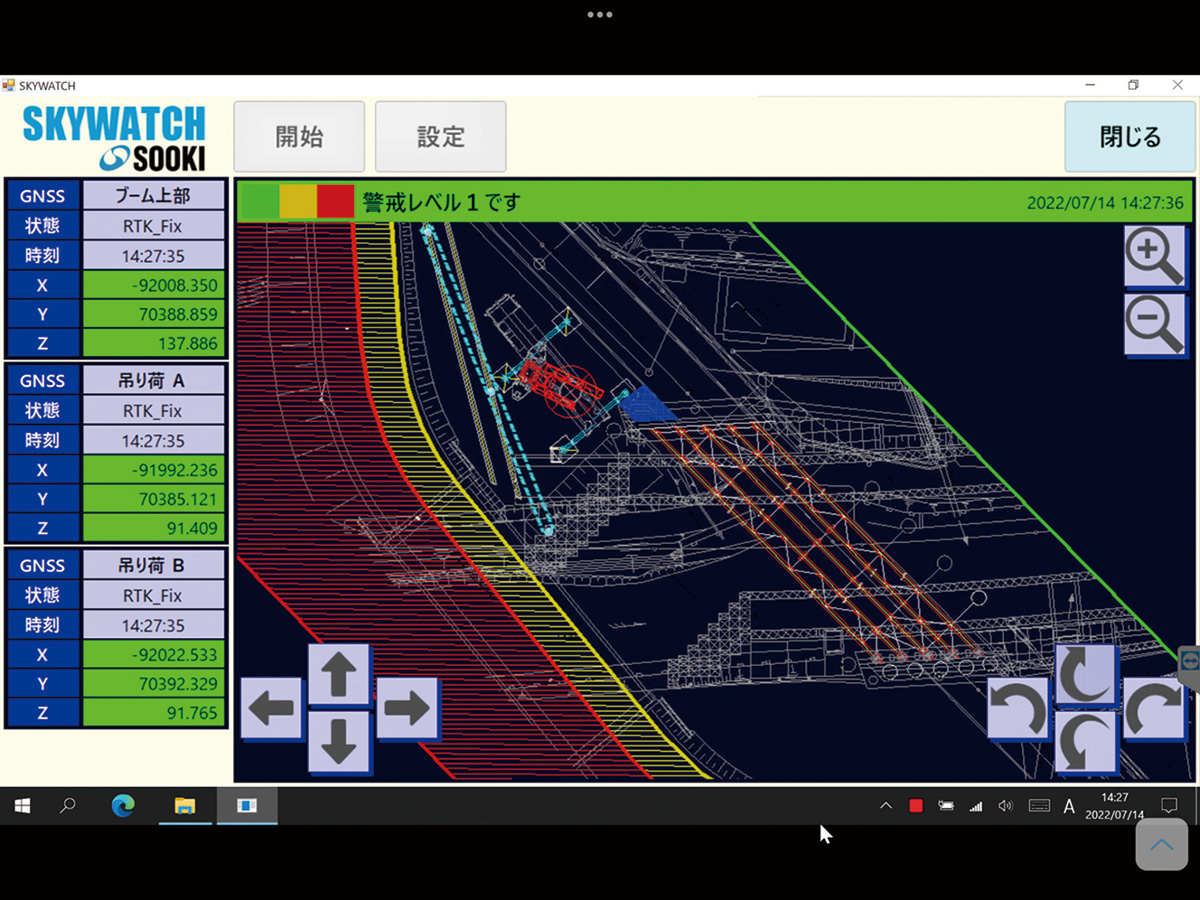

Primary Alarm
-
![Management Software]()

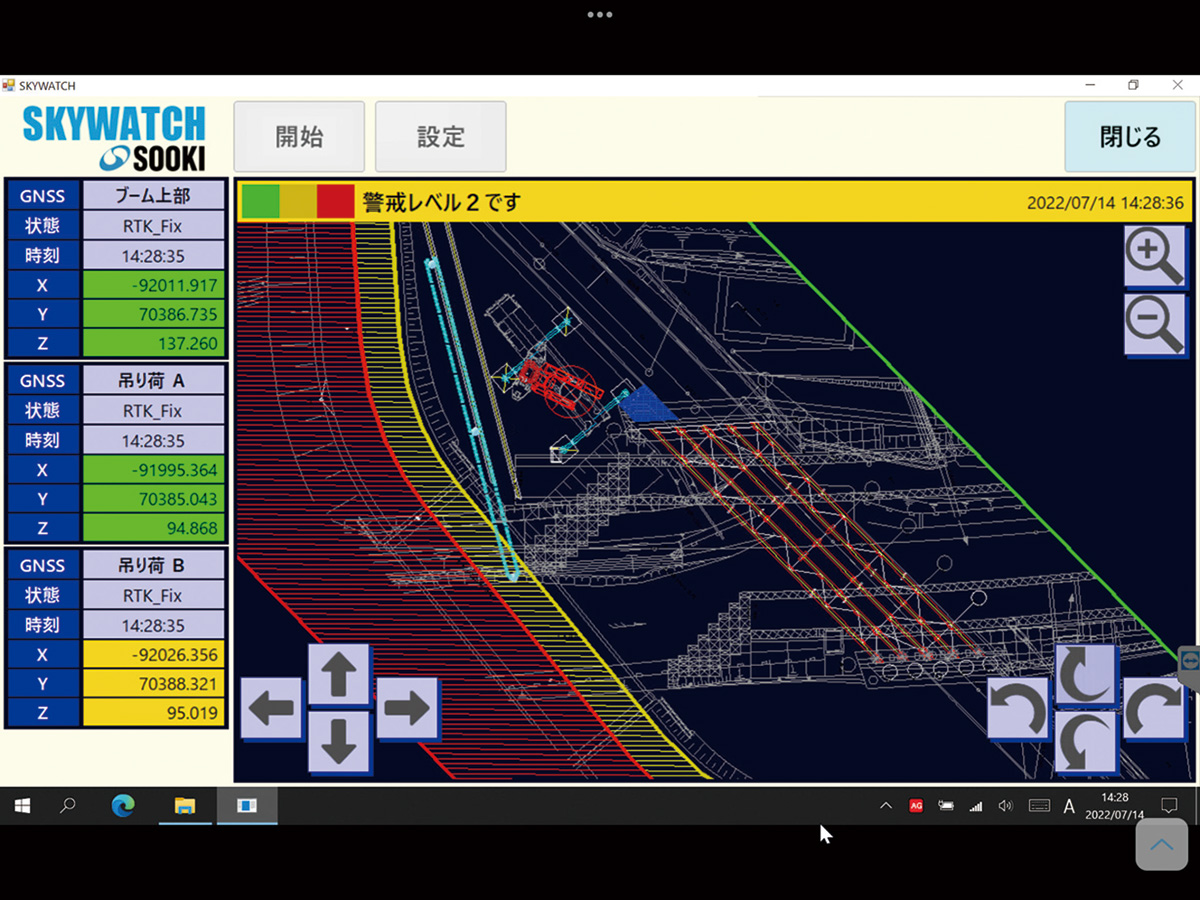

Secondary Alarm
-
![Management Software]()

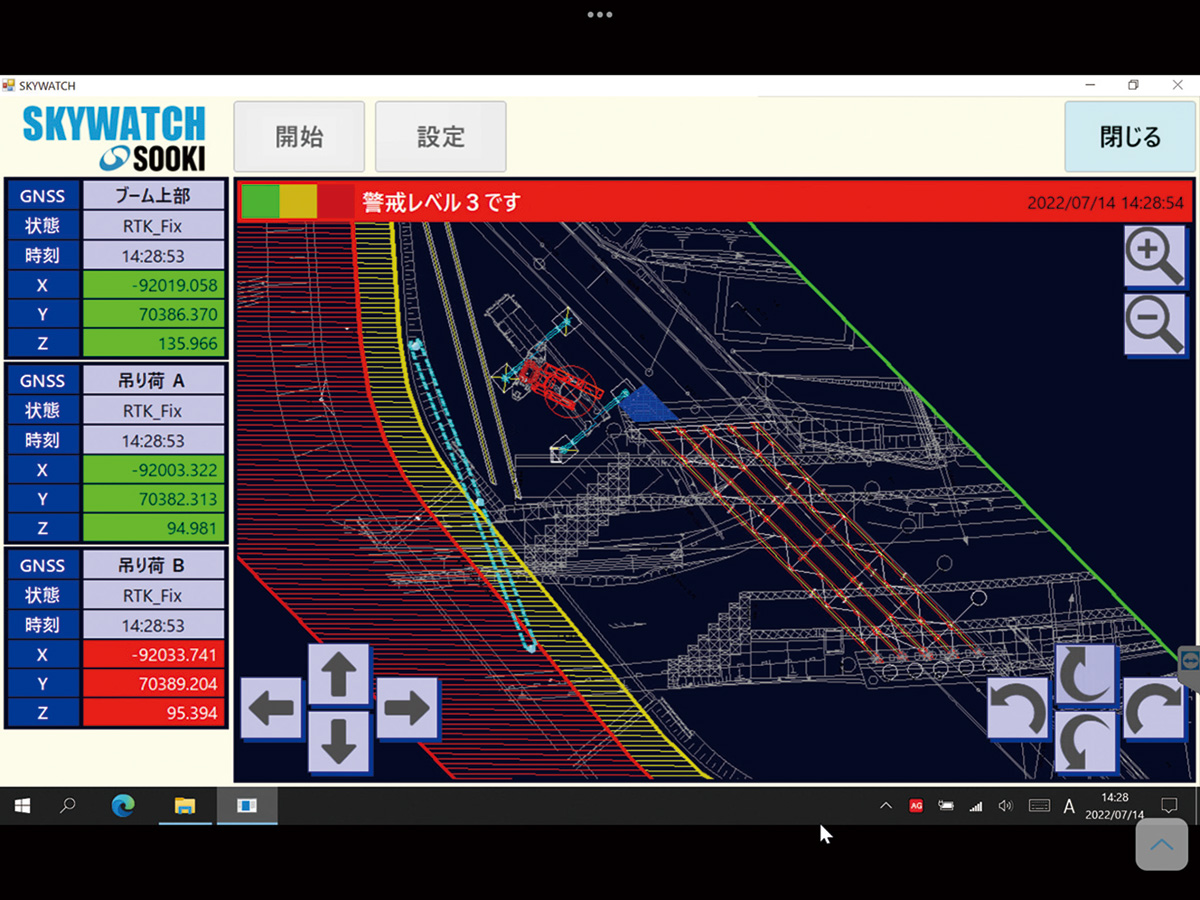

Tertiary Alarm
-
![Management Software]()

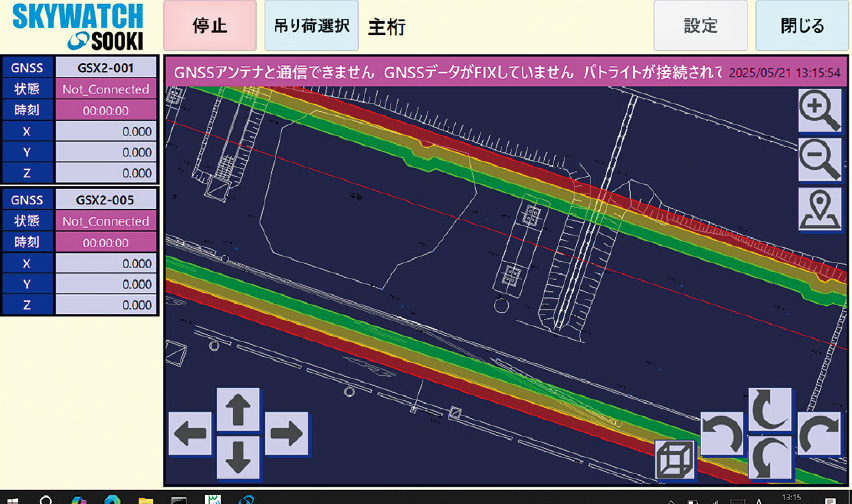

Top View/Boundary Crossing Monitoring
-
![Management Software]()
Side View/Power Line Monitoring
-
![Management Software]()

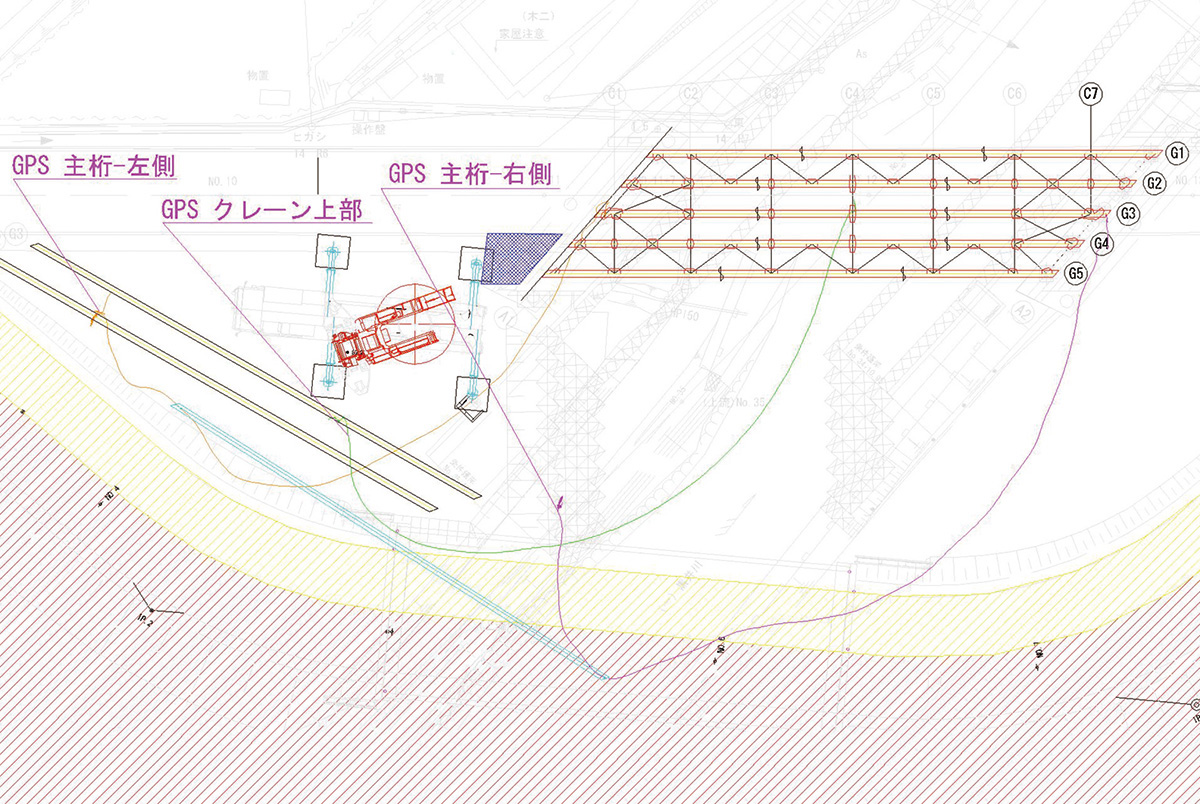

Construction History(Trajectory Diagram)
-
Compatible with Automatic Crane Stop
- Rental Option for Stop Device
- Supports Crane Connection
-
Visualizing 3D Areas Using AR and MR
- AR:iPad
- MR:Dedicated Goggles
-
Optional Alarm Outputs
- Outdoor Warning Light
- Email Alerts
- Worker Safety Management System (→ P.76)
