Non-Contact Dynamic Displacement Measurement System
DD System
KK-080035-VR

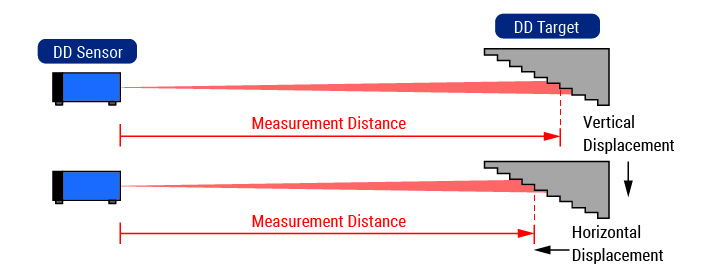

This system uses a high-speed laser displacement sensor capable of up to 500 measurements per second to observe structural displacement and vibration without contact. By employing a specially developed stepped target (DD Target), it enables displacement measurement perpendicular to the laser irradiation direction. When a flat, conventional target is used, the system can also measure horizontal displacement with high precision. *The target must be a dedicated type.

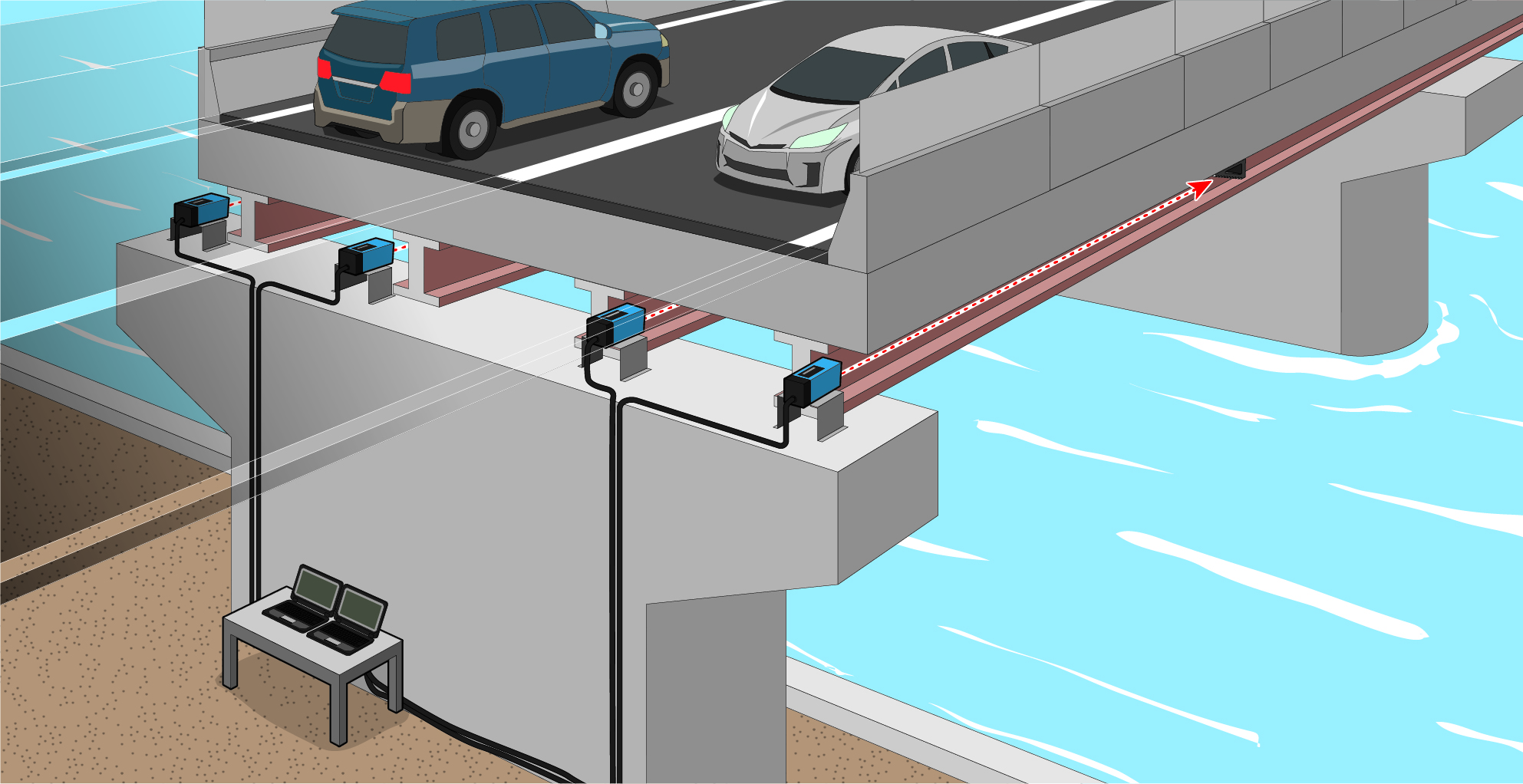

Overview Diagram

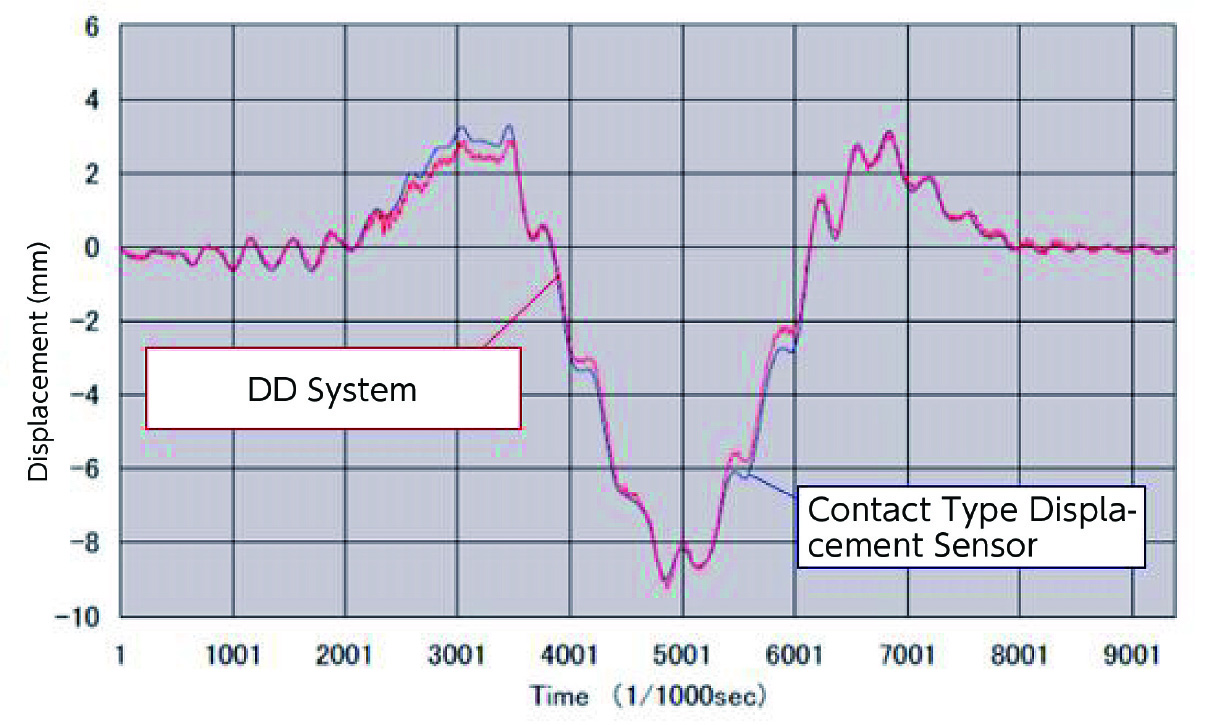

Verification
Through comparative testing on actual bridges with a contact-type displacement sensor, it was confirmed that vertical displacement can be measured with an accuracy of 0.2 mm.
Specifications
| Measurement Range | Standard Target : 0.15 m to 70 m |
|---|---|
| DD Target : 15 to 25 m | |
| Measurement Interval | 500, 166, 83, 41, 20 cycles/s (5 levels) |
| Minimum Display | 0.1 mm |
| Accuracy | 0.5 mm |
| Power Supply | AC 100 V |
| Operating Temperature | -10 ℃ to 50 ℃ |
| Dimensions | Laser Displacement Sensor : 60 (W) ×150 (D) ×100 (H) mm |
| DD Target : 100 (W) ×200 (D) ×100 (H) mm |
