Superstructure One-Person Survey System

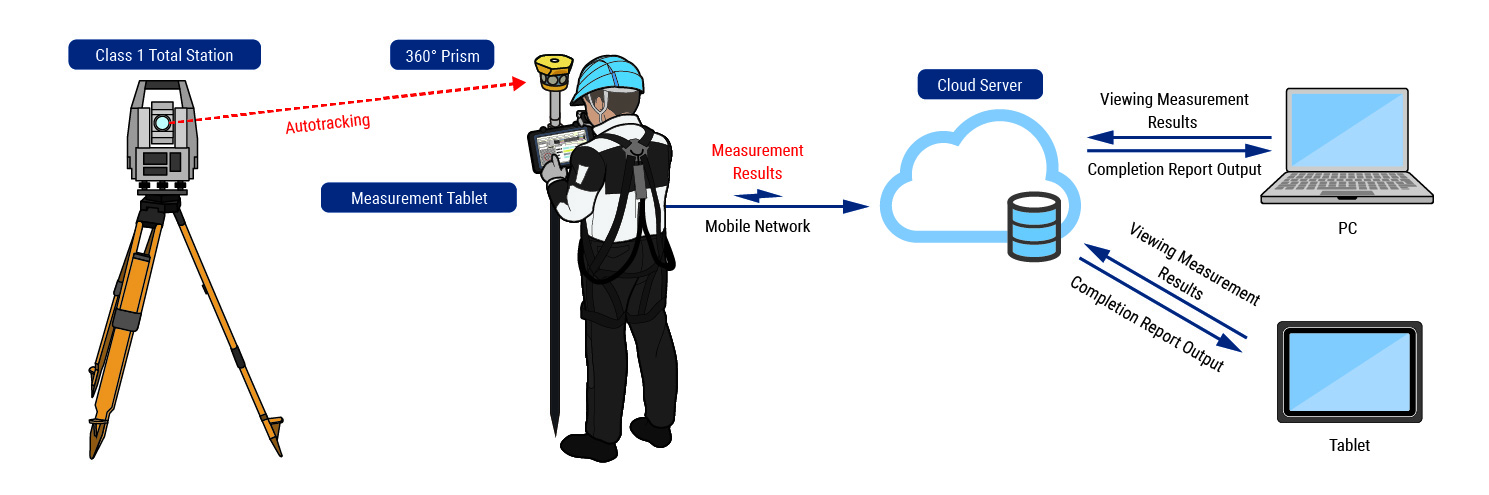

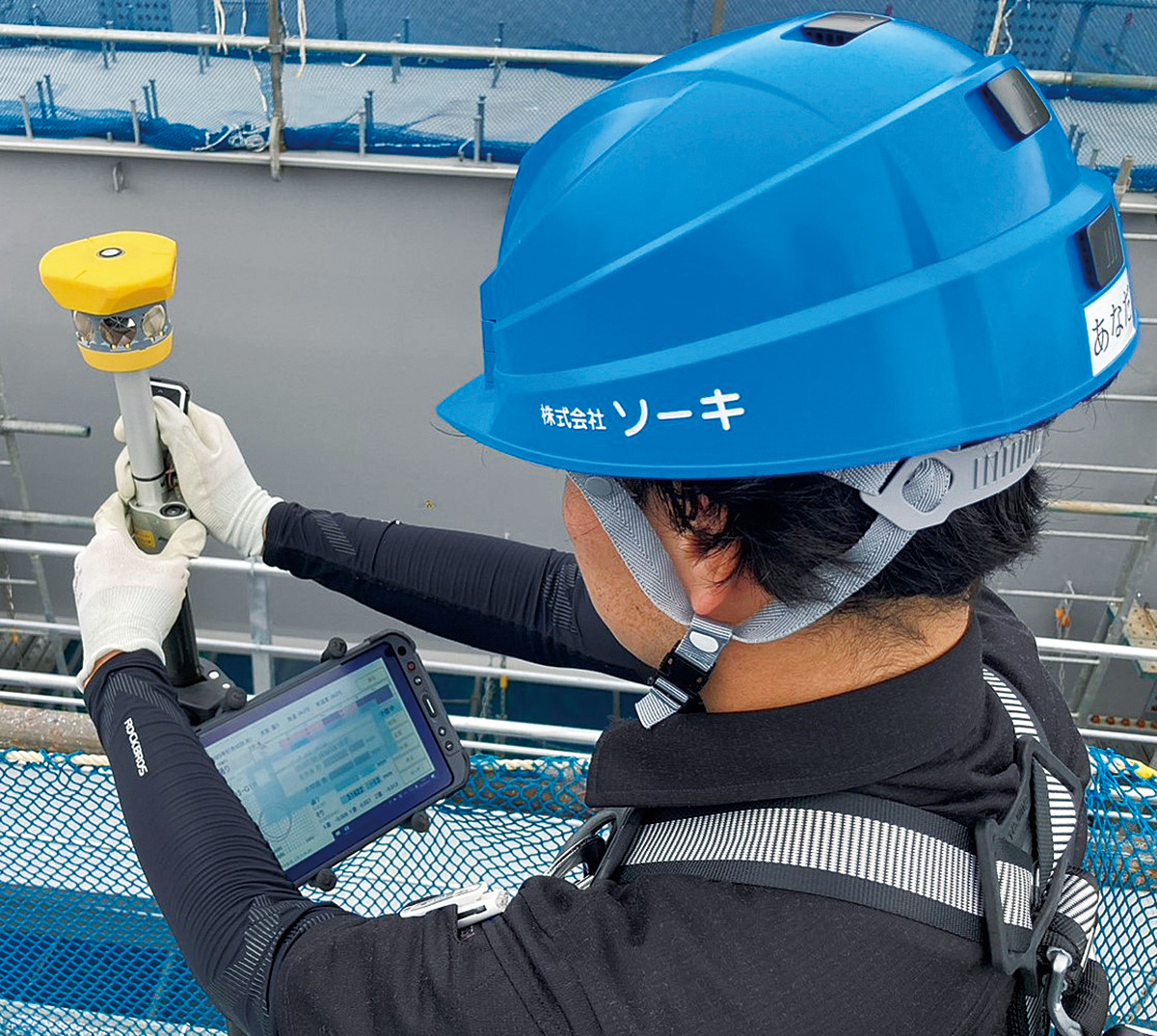

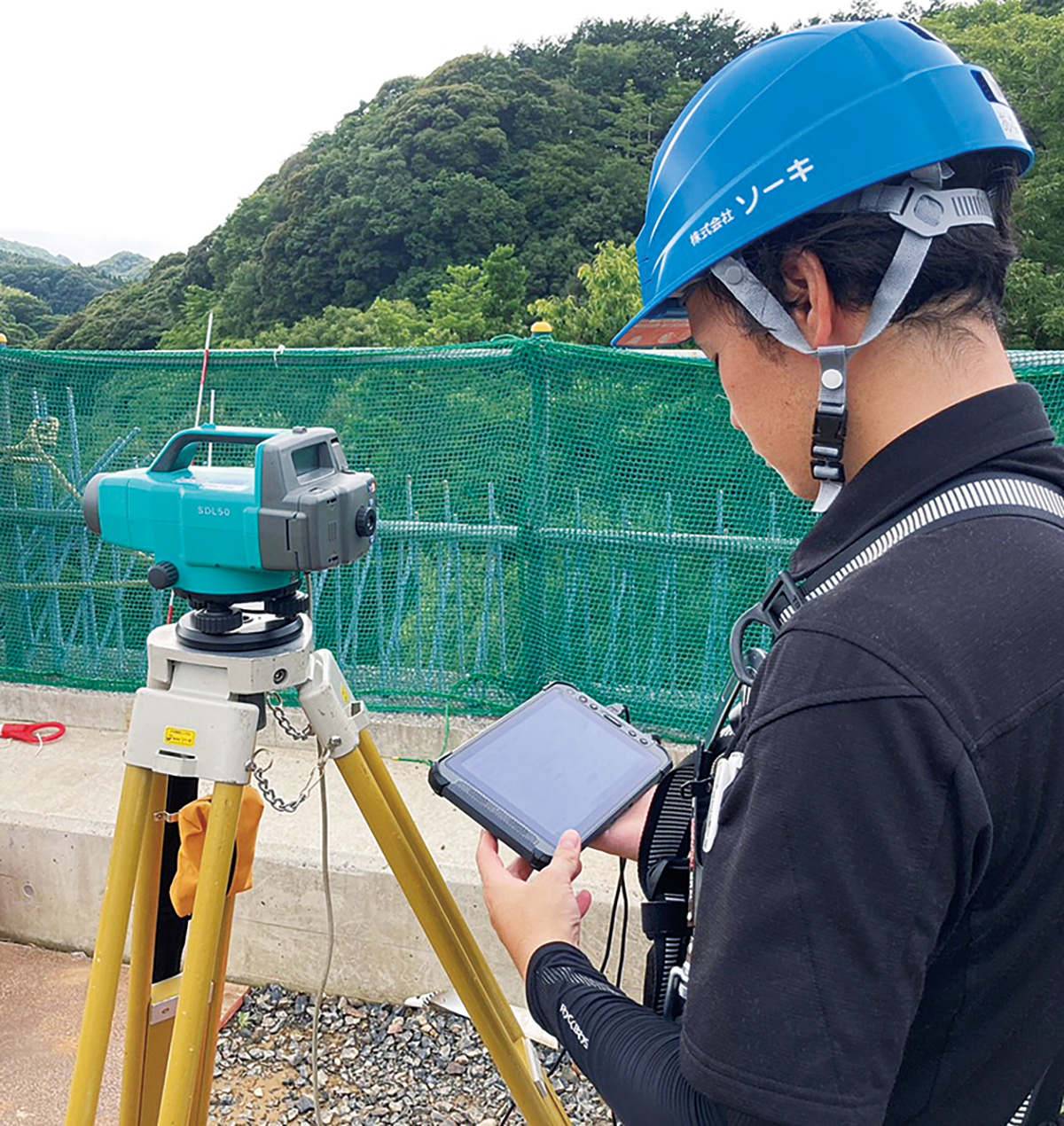

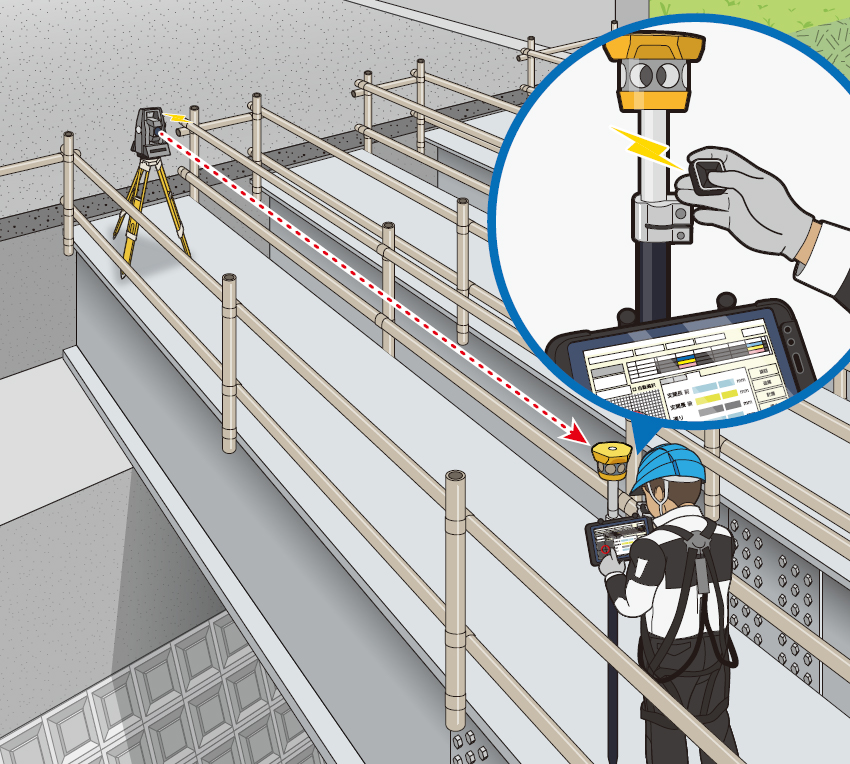

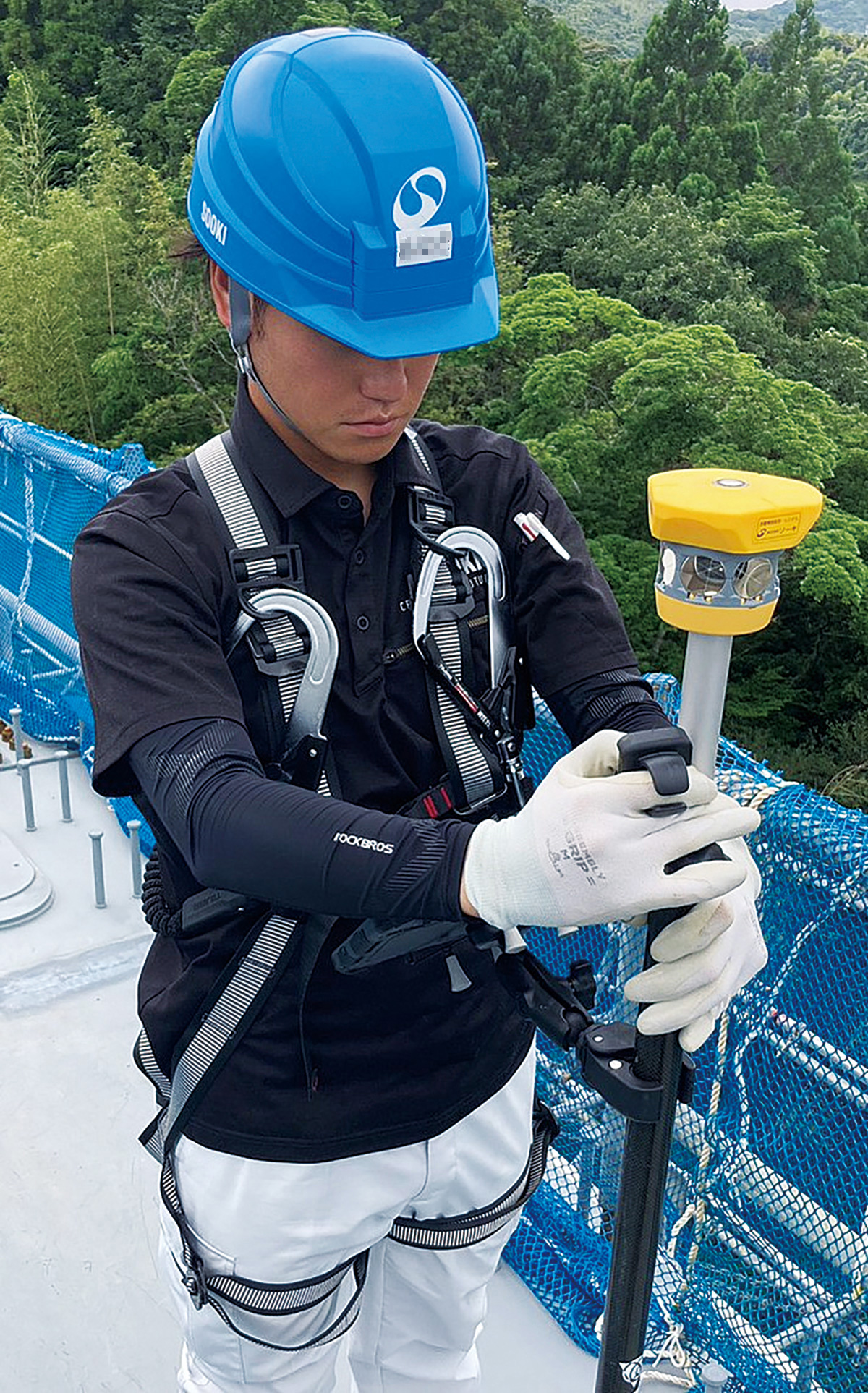

This system uses a Class 1 total station to perform one-person as-built measurements at bridge superstructure sites and automatically generate reports. Differences from design values can be checked on site, and the overall measurement results for the entire girder (total length, span length, alignment, camber, reference height and width) can also be verified. During surveying, distance measurement operations are performed while keeping the measurement prism horizontal. This allows the total station to be operated using a compact wireless button. The system provides voice guidance from measurement results to judgment, supporting efficient field operations. *A digital level for camber measurement is available as an optional accessory.
