Laser Projector Marking System
CS-Screen
This system uses a full-color laser display projector to project the tunnel cross-section onto the tunnel face. It works together with the TopLun system to perform marking.

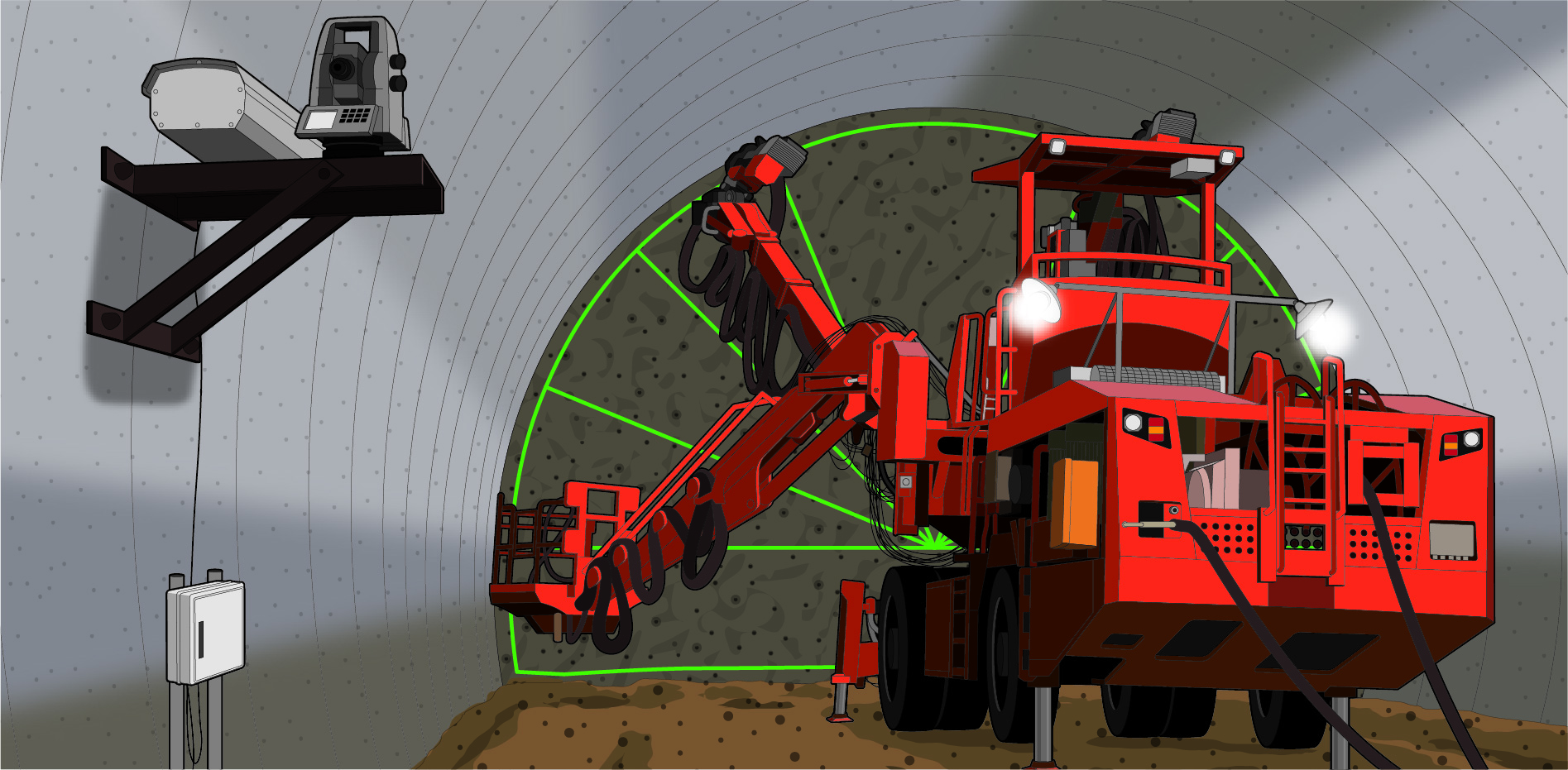

Overview Diagram

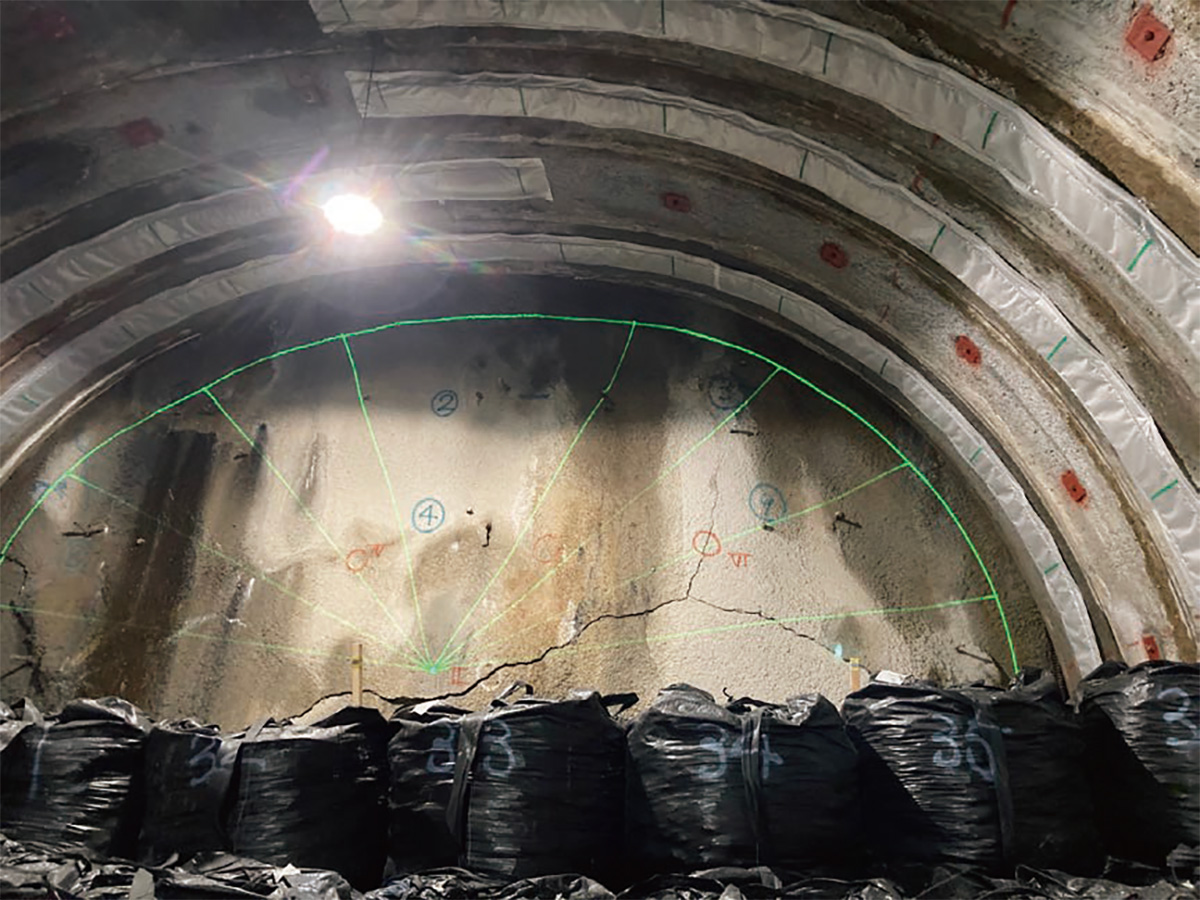

Output Image

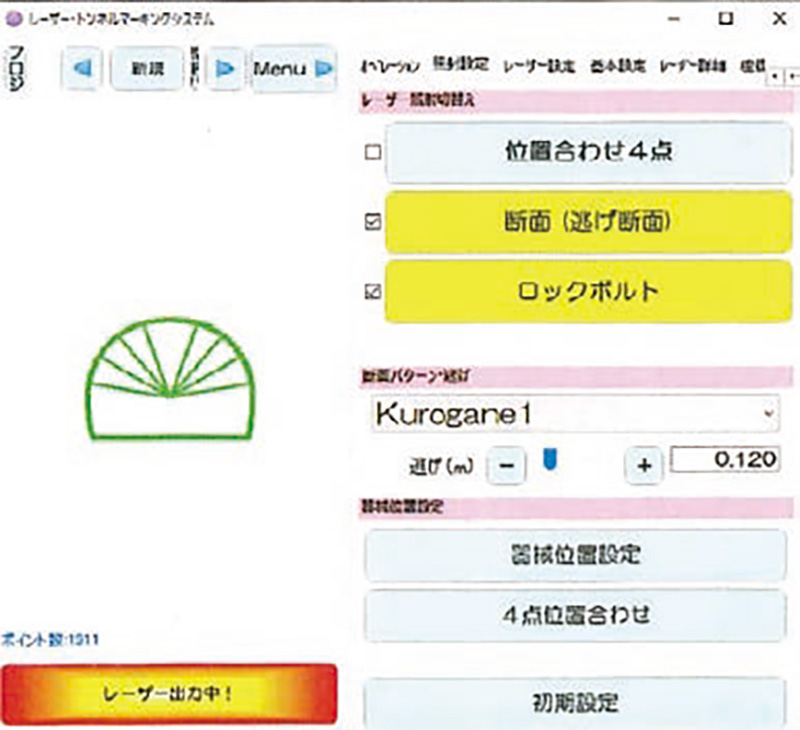

Management Software
Specifications
| Laser Output | 2000 mV |
|---|---|
| Beam Size | 4.5 mm × 5.2 mm |
| Power Input | 100 to 230 V / 50-60Hz |
| Operating Temperature | 0 to 40 ℃ |
| Dimensions | 377 (W)×600 (D)×281 (H) mm |
*Enable illumination of objects beyond characters and tunnel shapes.
