Dust Logger System
Dust Monitor
This system uses a lightweight display panel to notify the surrounding area of measured dust concentration levels. It features a built-in LD-5R dust meter to display dust concentration and can also save measurement data to a USB memory device. *For accurate measurements, the appropriate K value must be applied.

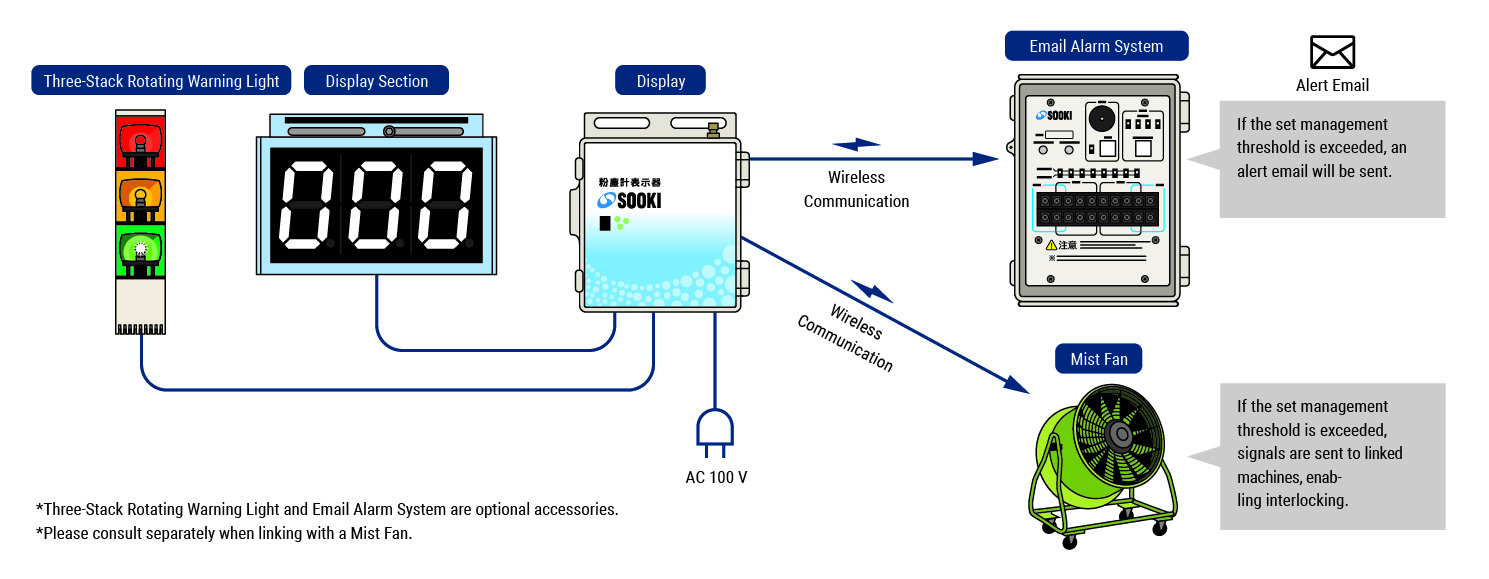

System Configuration

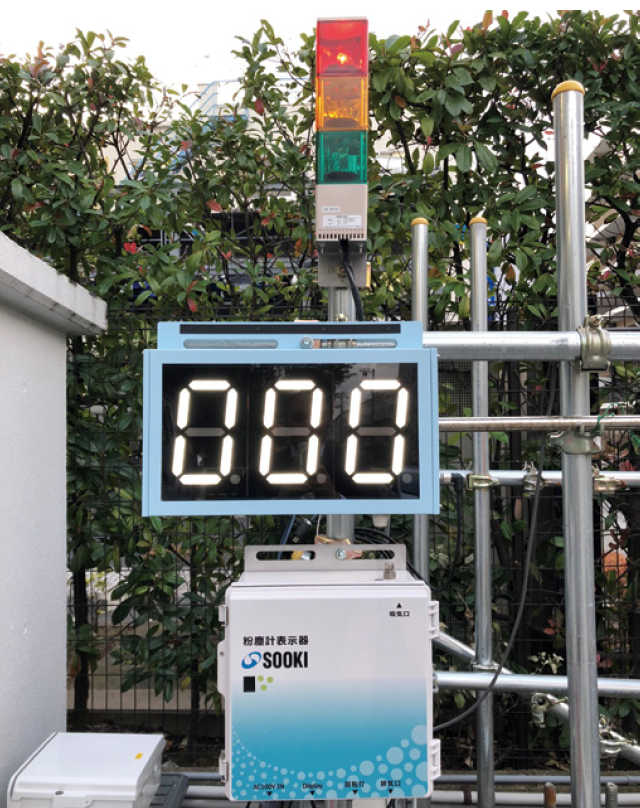

Construction Photography
Equipment Configuration
-

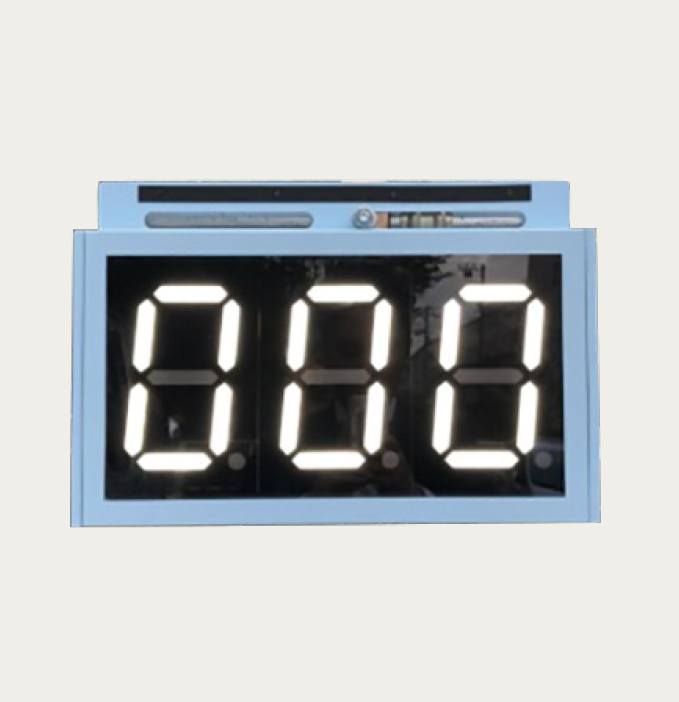

![Display Section]()
Display Section
-

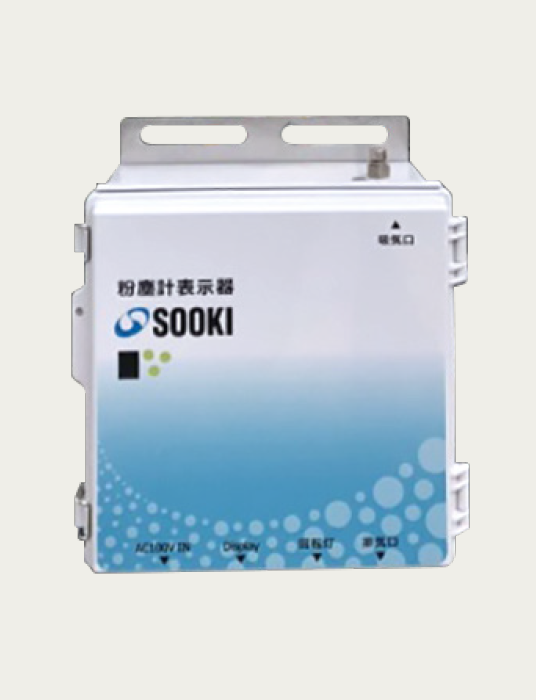

![Display]()
Display
-

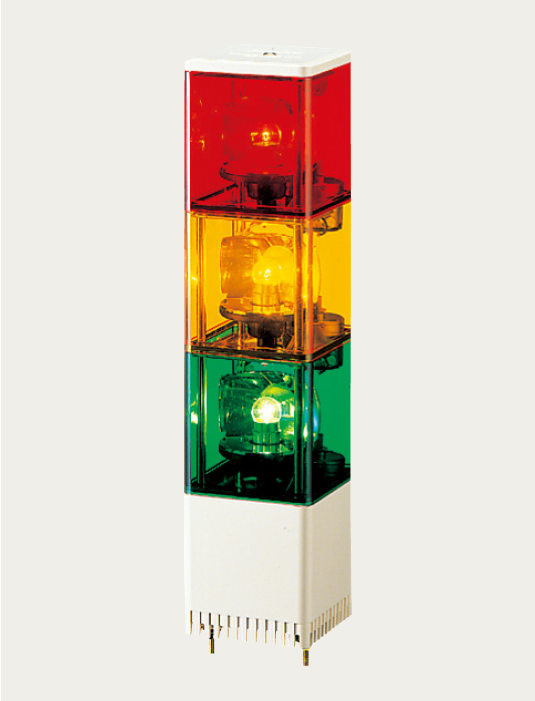

![Three-Stack Rotating Beacon *Optional]()
Three-Stack Rotating Warning Light *Optional
Specifications
| Measurement Principle | Light Scattering Method |
|---|---|
| Measurement Sensitivity | 1 CPM=0.001 mg/㎥ (Compared to Standard Particles) |
| Measurement Range | 0.001 to 10.000 mg/㎥ (Compared to Standard Particles) |
| Measurement Accuracy | ±10% (Compared to Standard Particles) |
| Suction Flow Rate | 1.7 L / min |
| Suction Equipment | Suction Pump |
| Light Source | Laser Diode |
| Power Supply | AC100V |
| Weight | Measurement Section:Approx. 5.3 kg |
| Display Section:Approx. 2.2 kg | |
| Dimensions | Measurement Section : 300 (W) ×181 (D) ×300 (H) mm |
| Display Section : 447 (W) ×39 (D) ×250 (H) mm |
