Heatstroke Cloud Management System
Heatstroke Information
QS-180050-A
This cloud-based heatstroke monitoring system calculates WBGT values using black globe measurement modules. Measurement data is stored on cloud servers, allowing remote monitoring of on-site working conditions. When an abnormality is detected, in addition to sending an alert email, power can also be supplied to alarm devices and industrial mist fans.

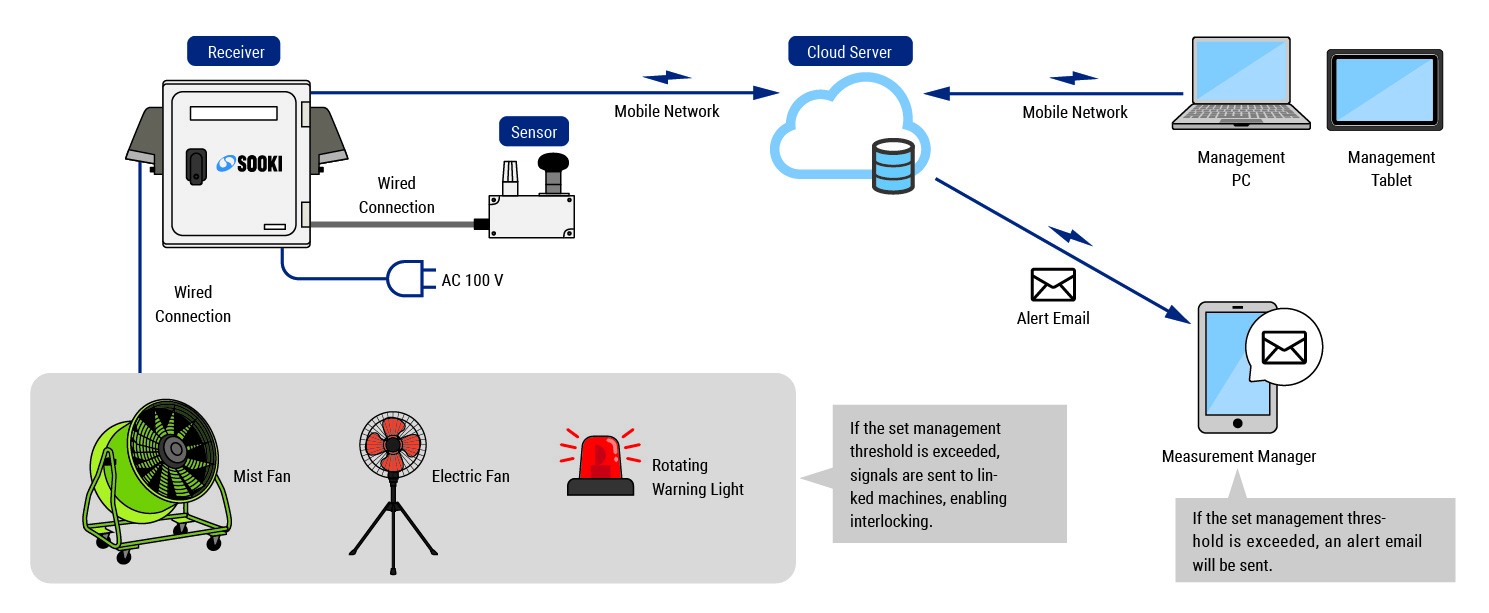

System Configuration
Management Software
Specifications
| Measurement Range | WBGT | 0.0 to 50.0 ℃ |
|---|---|---|
| Temperature | 0.0 to 50.0 ℃ | |
| Humidity | 10.0 to 95.0 % RH | |
| Globe Temperature | 0.0 to 60.0 ℃ | |
| Measurement Accuracy | WBGT | 20.0 to 40.0 ℃ : ± 2.0 ℃, others : ± 3.0 ℃ |
| Temperature | 20.0 to 40.0 ℃ : ± 0.6 ℃, others : ± 1.0 ℃ | |
| Humidity | 30.0 to 90.0 %RH : ± 5.0 %RH, others : ± 7.0 %RH | |
| Globe Temperature | 20.0 to 40.0 ℃ : ± 0.6 ℃, others : ± 1.0 ℃ | |
| Operating Temperature Range | 0.0 to 50.0 ℃, 95.0% RH below(No Condensation) | |
| Power Supply | AC 100 V | |
| Weight | Approx. 4.0 kg | |
| ,. | 200 (W) × 120 (D) × 300 (H) mm(Excluding Protrusions) | |
