Mountain Tunnel Measurement & Marking System
Top Lun
This system utilizes SOKKIA high-precision total stations to perform comprehensive management surveying essential for mountain tunnel construction. It measures internal displacements (inside and outside the tunnel), ground surface settlement, Type A measurements, and supports marking during excavation.
Overview Diagram
-
![Laser Marking]()

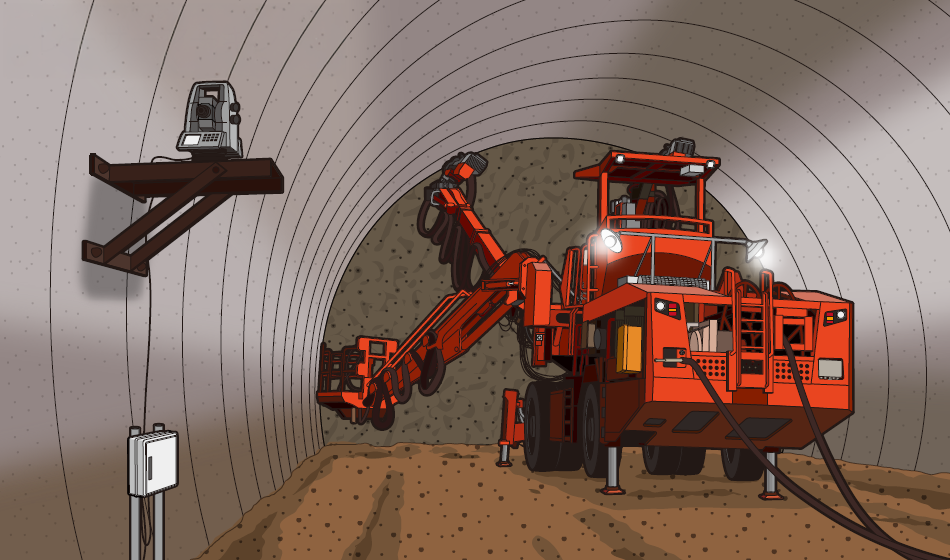

Laser Marking
-
![Internal Displacement Measurement]()

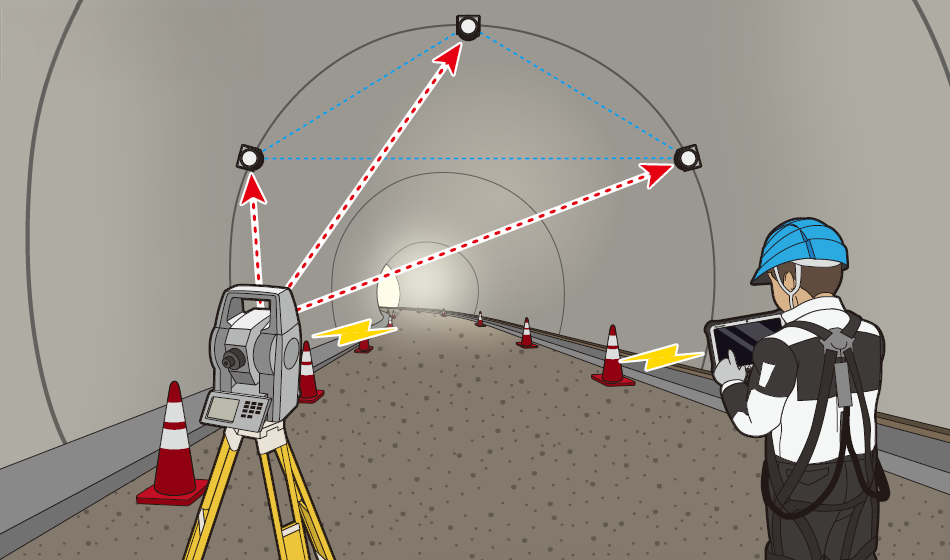

Internal Displacement Measurement
-
![Ground Surface Displacement Measurement]()

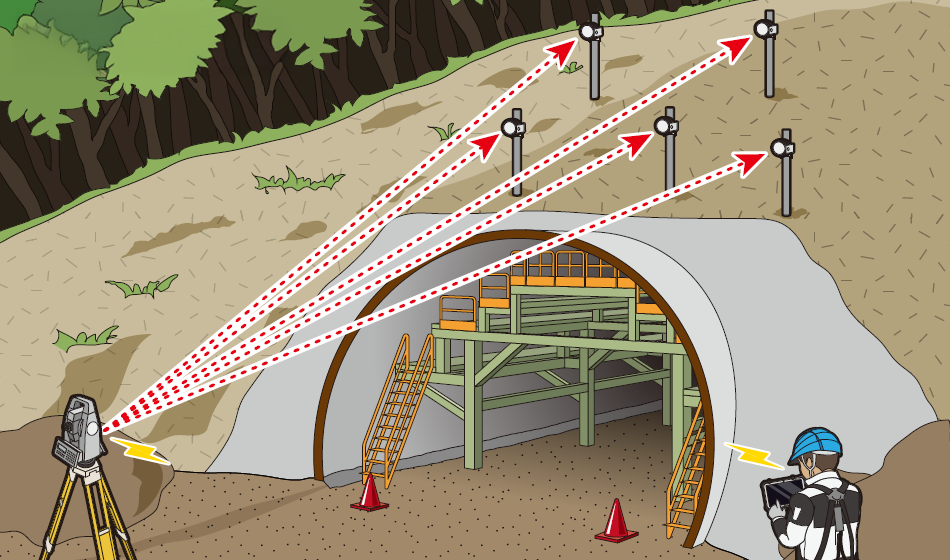

Ground Surface Displacement Measurement
Management Software
-
![Laser Marking]()

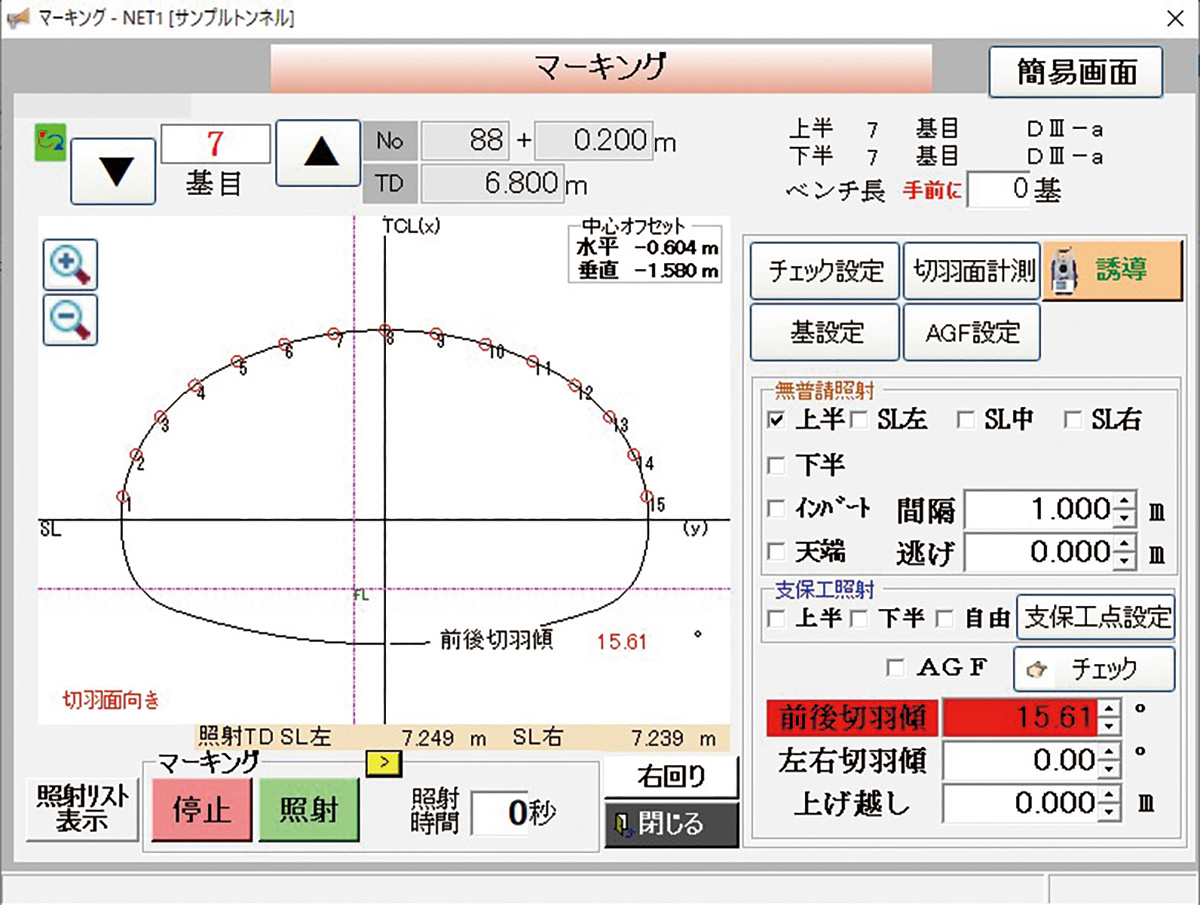

Laser Marking
-
![Internal Displacement Measurement (Type A)]()

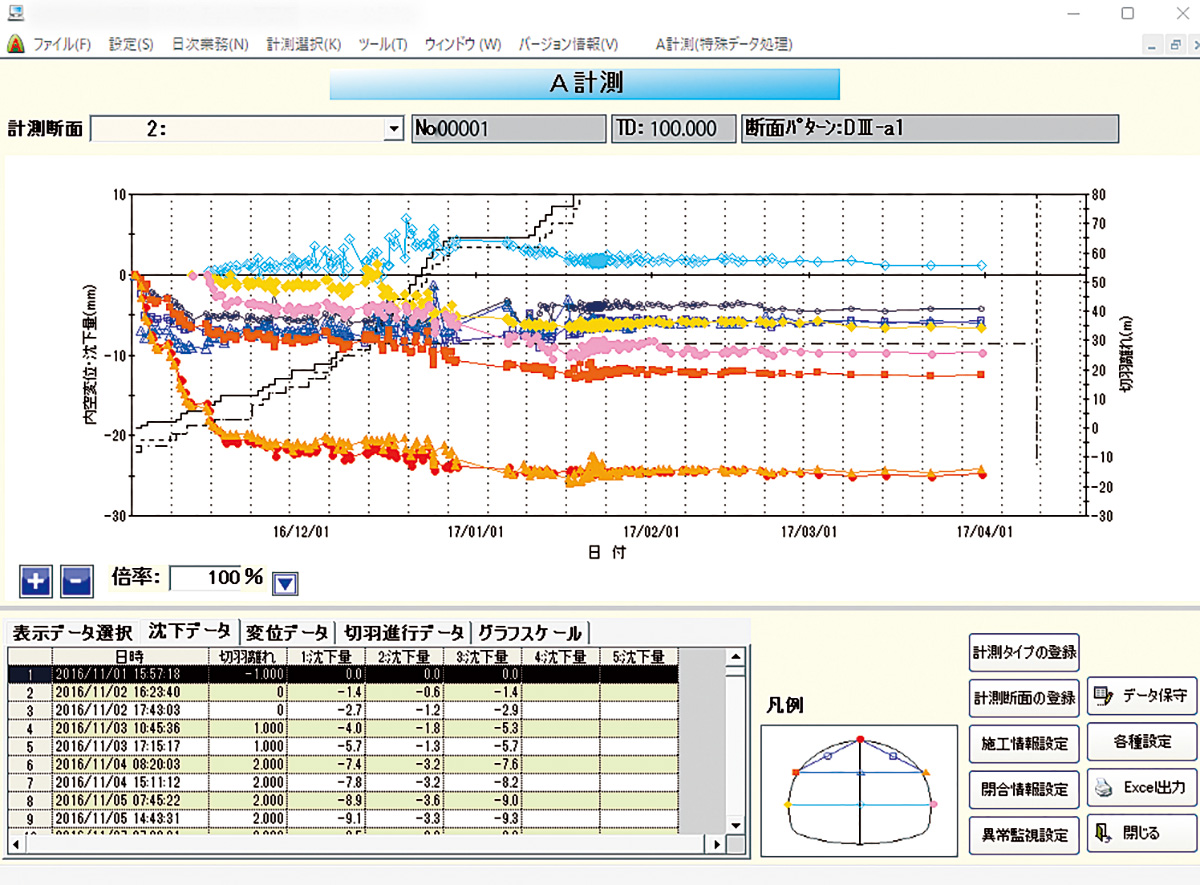

Internal Displacement Measurement (Type A)
-
![Ground Surface Subsidence Measurement]()

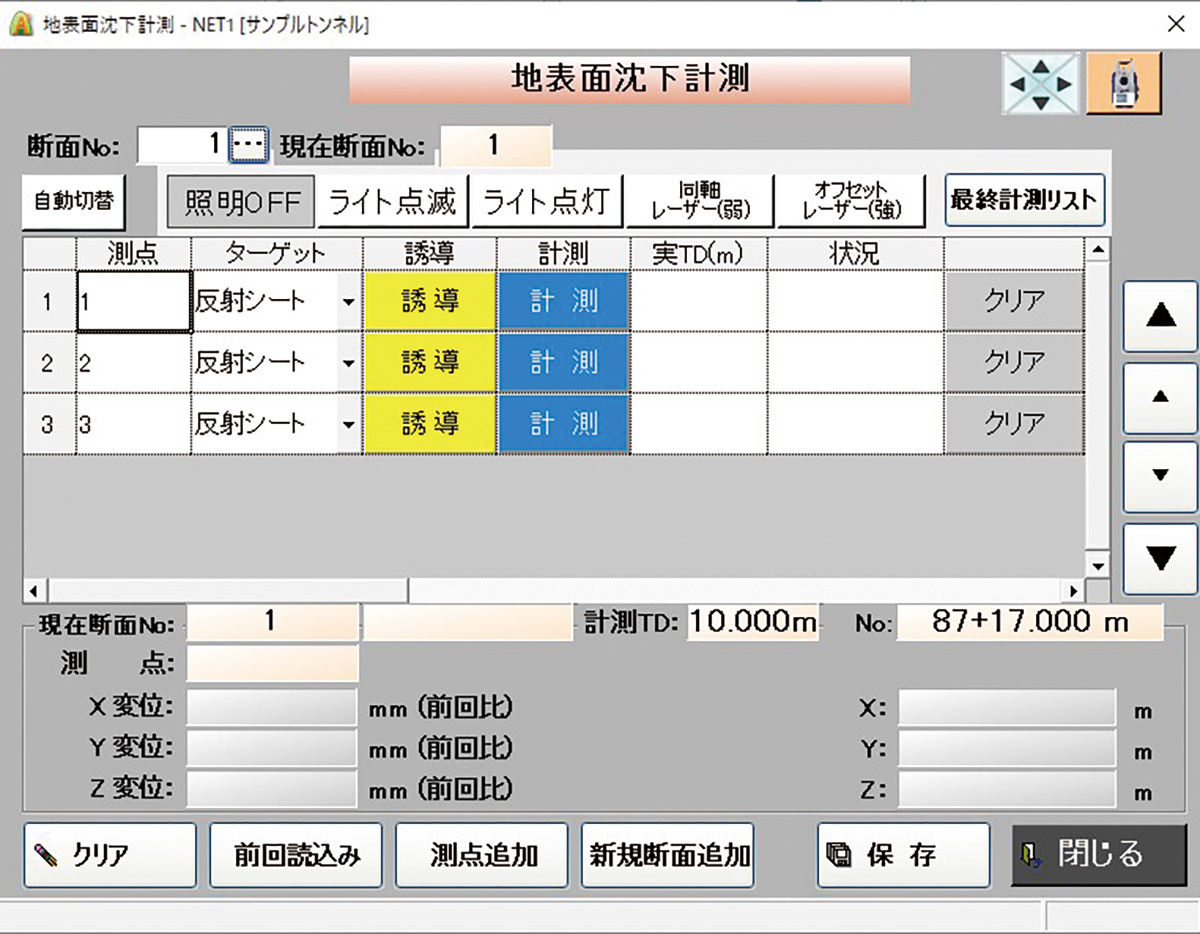

Ground Surface Subsidence Measurement
