Concrete Curing Temperature Cloud Management System
Cure Tenformation
QS-190001-A
This system measures concrete temperature, surface humidity, and outdoor temperature and humidity required for concrete curing management. Measurement data can be viewed on a cloud server. If set management thresholds are exceeded, alerts are sent via email , rotating warning lights , and integration with various devices is possible as needed.
*Additional equipment is required for linking with other devices. Please contact us for details.

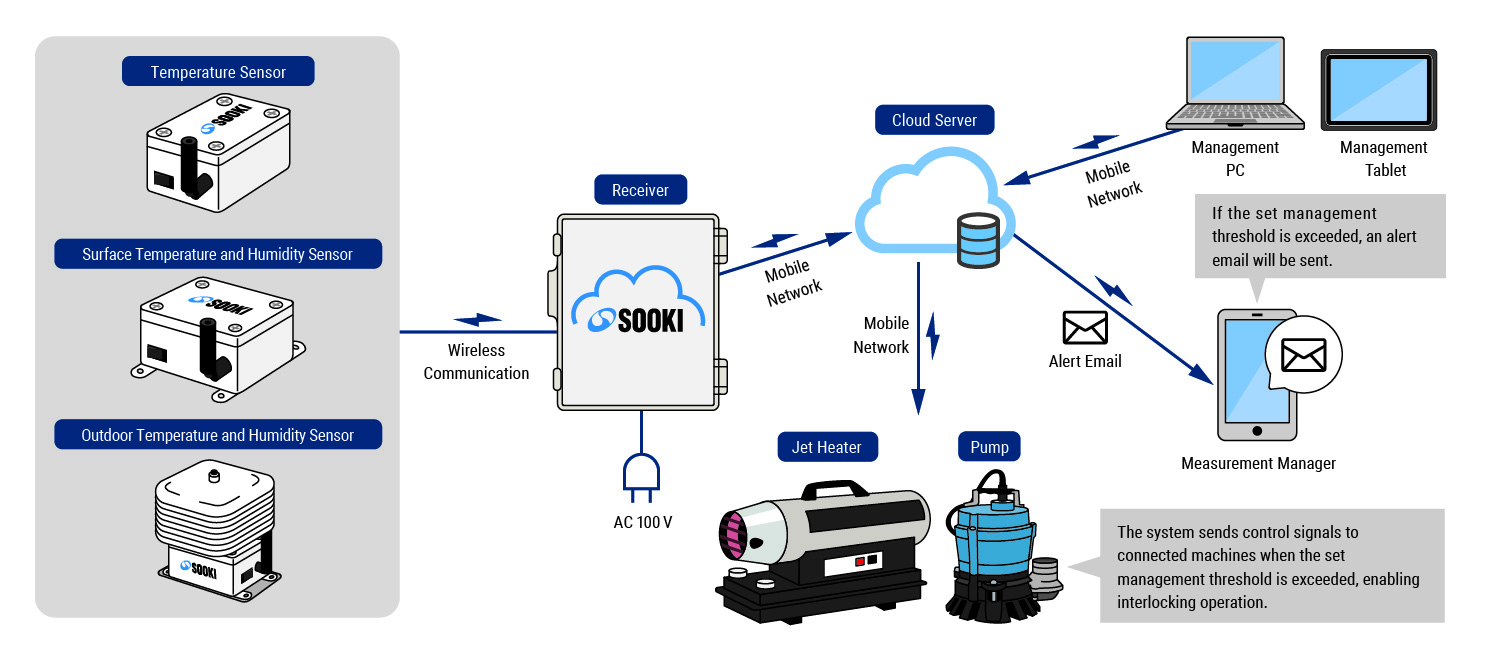

System Configuration

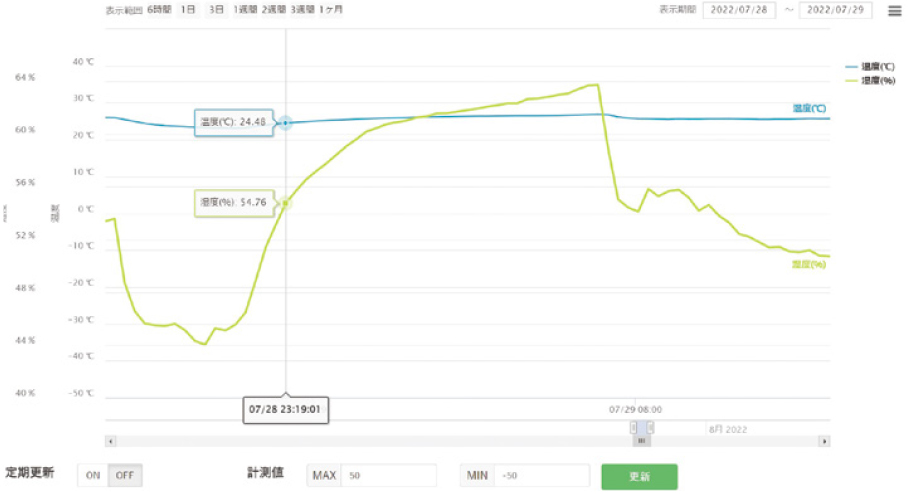

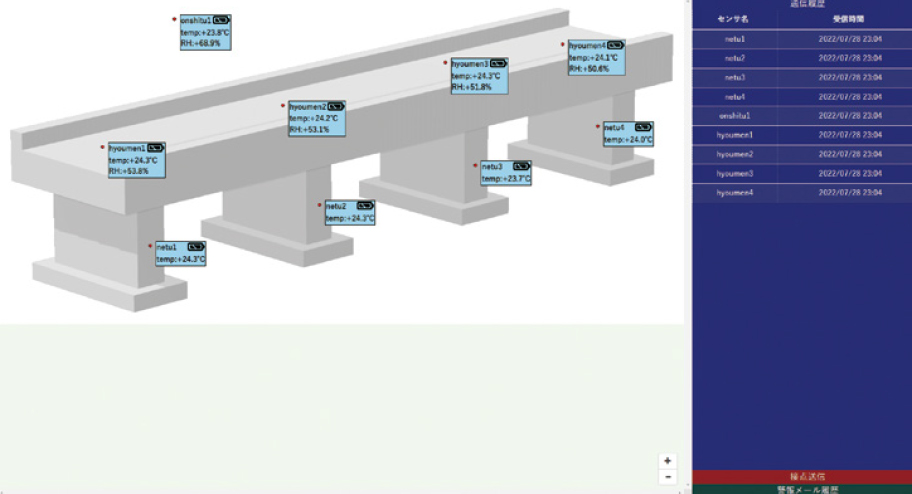

Management Software
Specifications
| Temperature Sensor | Surface Temperature & Humidity Sensor | Outdoor Temperature & Humidity Sensor | Receiver | |
|---|---|---|---|---|
| Sensor Type | MCP 9600 | HYT 939 | SHT-21 | - |
| Transmission Interval | 1 s to 24 h/ cycle | - | ||
| Resolution | 0.0625 ℃ | - | - | - |
| Accuracy | ±1.5 ℃ | ±10 %RH | Temperature : ± 0.3 ℃ Humidity : ±2 %RH |
- |
| Power Supply | 3 × AA battery | AC 100 V | ||
| Battery Life | Approx. 1 week | - | ||
| Operating Temp. Range | -10 to 50 ℃ | |||
| Dust / Drip Resistance | IP60 Equivalent | IP65 Equivalent | IP23 Equivalent | IP65 Equivalent |
